Strong SRT 8250 Installation Instructions Manual

Strong SRT 8250 Installation Instructions Manual

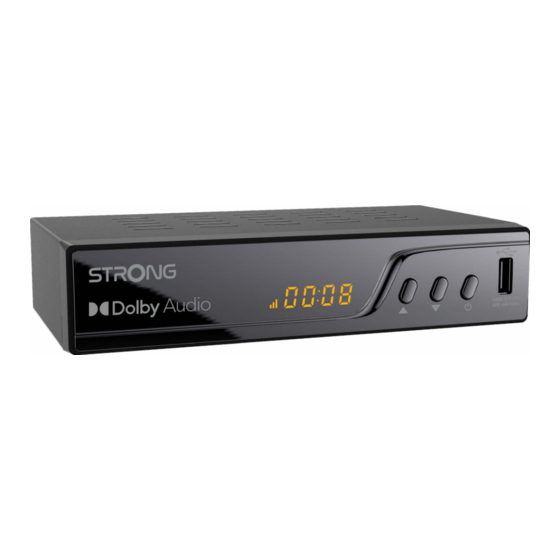

Digital terrestrial 4k ultra hd receiver

Advertisement

Quick Links

4K UHD
DIGITAL TERRESTRIAL 4K
ULTRA HD RECEIVER
SRT 8250
Installation Instructions
www.strong-eu.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRT 8250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Strong SRT 8250

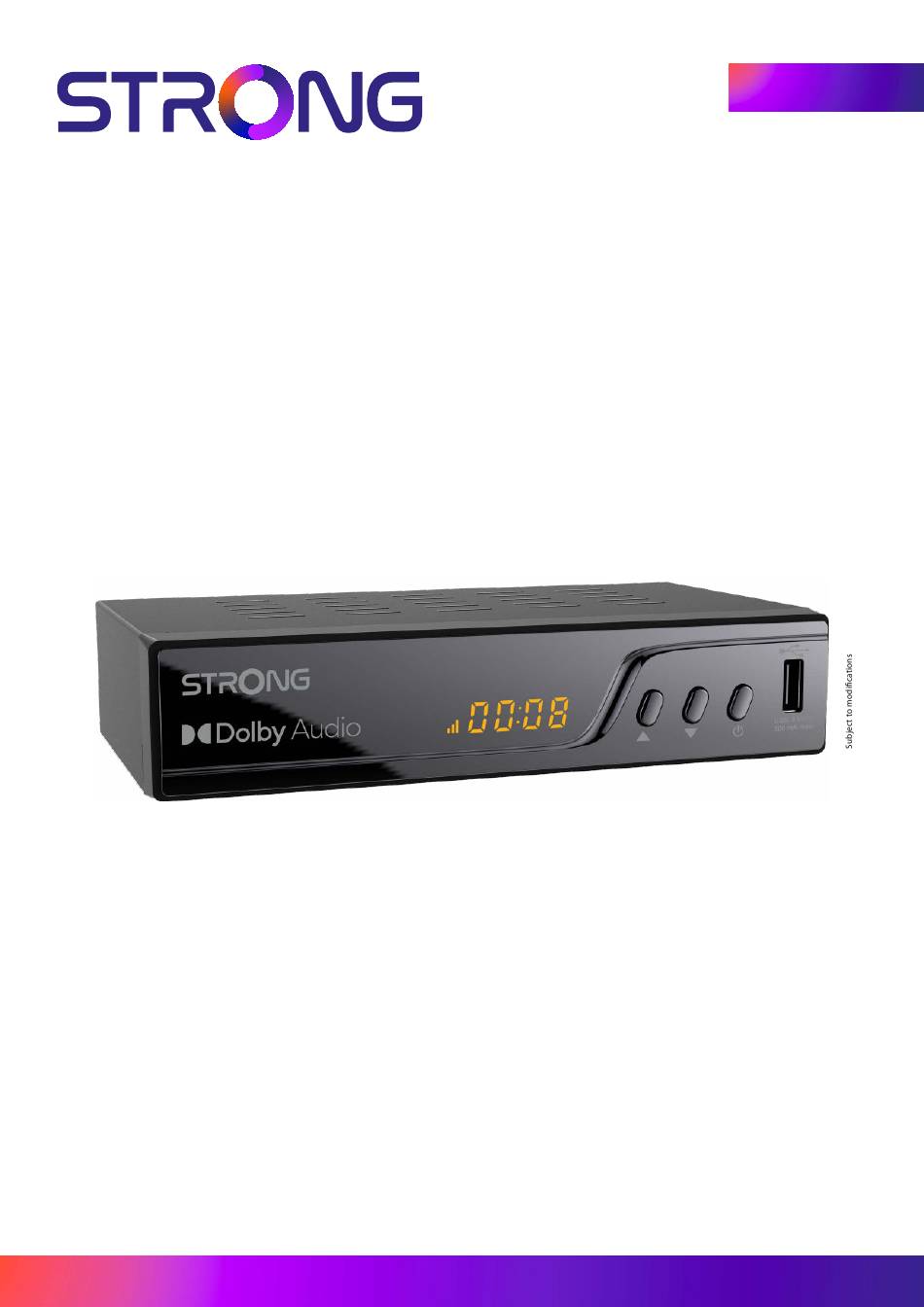

  • Page 1 4K UHD DIGITAL TERRESTRIAL 4K ULTRA HD RECEIVER SRT 8250 Installation Instructions www.strong-eu.com...
  • Page 2 Supplied by STRONG Austria Represented by STRONG Ges.m.b.H. Teinfaltstraße 8/4.Stock, A-1010 Vienna, Austria Email: support_at@strong-eu.com www.strong-eu.com...
  • Page 3 Laboratories. All rights reserved. SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, STRONG declares that the equipment type SRT 8250 are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.strong-eu.com/downloads/...
  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1.INTRODUCTION 1.1 Safety Instructions 1.2 Storage 1.3 Package content 1.4 Usage of external USB devices 2. TV BOX PANELS 2.1 Front Panel 2.2 Rear Panel 2.3 Remote control 2.4 Installing the batteries 2.5 Programming the programmable buttons to use with your TV. 3.
  • Page 5 7. MAIN MENU 7.1 Edit Channel Menu 7.2 Installation menu 7.3 System Setup menu. 7.4 Tools menu. 7.5 EPG screen 7.6 Media Player 8. SIMPLE TROUBLESHOOTING 9. TECHNICAL SPECIFICATIONS...
  • Page 6: Introduction

    1.INTRODUCTION Thank you for choosing the Digital Terrestrial 4K Ultra HD Receiver supplied by STRONG. It has been produced with the latest new technology and o ers extensive entertainment and great versatility. We wish you many hours of new great experiences exploring the entertainment world! 1.1 Safety Instructions...
  • Page 7: Package Content

    USB storage device before using it with this receiver. STRONG will not take responsibility for any loss of information or circumstances caused by loss of information. „ STRONG cannot guarantee the playback of all les although extensions are listed, as it depends on le size, codec, bit rate and resolution.
  • Page 8: Remote Control

    4. TV SCART To connect to TV using a SCART cable. 5. DC IN Connect the supplied Power supply unit to the input. 2.3 Remote control Fig. 3 Programmable button: Press to turn the TV to On/Standby. Press to turn the receiver to On/Standby. 3.
  • Page 9: Installing The Batteries

    21. REC Records the TV programme to the connected storage device. 22. FAV To access your favourite channels. 23. PAGE +/ Jumps per page in lists. 24. 0 TO 9 Choose channel number directly (more than 1 digit possible). 25. AR Pressing repeatedly toggles through the possible Aspect Ratios (Auto, 16:9 and 4:3).
  • Page 10: Connection Guide

    3. CONNECTION GUIDE 3.1 Connecting to a terrestrial antenna Fig. 5 Digital Terrestrial 4K UHD Receiver SRT 8250 DC IN To receive broadcast signal, your terrestrial indoor or outdoor antenna must be connected to the ANT IN connector on the back of the receiver.
  • Page 11: Optional: Connecting To Tv Using A Tv Scart Cable

    Before getting started, please turn o all devices to be connected. NOTE: „ Connect the SRT 8250 digital receiver to your television via the HDMI Cable. „ Connect the TV Receiver to power using the power adapter provided. You can then power on your device and begin.
  • Page 12: Connecting To Digital Audio Ampli Er With S/Pdif

    3.4 Connecting to digital audio ampli er with S/PDIF Fig. 7 Digital audio amplifier Digital Terrestrial 4K UHD Receiver SRT 8250 DC IN By connecting your receiver to a digital ampli er or home theatre system, you can enjoy the better sound quality and multi- channel audio (depending on broadcast) up to Dolby Digital Audio.
  • Page 13: Connecting A Usb Storage Device

    For proper functioning of Time shift and recording functions, a fast USB device (such as a hard disk drive) is needed. Interrupted playback or a distorted picture during playback or Time shift are indications for a low device speed. STRONG cannot guarantee proper functioning of recording and or Time shift functions with all USB devices.
  • Page 14: First Time Installation

    4. FIRST TIME INSTALLATION After all connections have been made properly, switch on your TV and make sure the receiver is connected to the main power. If you are using the receiver for the rst time or restored to factory default, the Welcome page will appear on your TV screen. Use to select your Region or Country.
  • Page 15: Info Banner

    6.1.2 Channel list Press OK in viewing mode to display the Channel List. Use to highlight your channel of choice and press OK once to select the highlighted channel. The channel list is equipped with a Find function to make it easier to nd channels. While in the channel list, press BLUE and an alphabet banner will be displayed.
  • Page 16: Pvr, Instant Recording

    Time shift needs a connected USB storage device with su cient free space and su cient speed in order to work NOTE: properly. 6.9 PVR, Instant recording* To directly record a program, press the REC button to start the recording, a REC icon will show in the top-right corner of the screen.
  • Page 17 Deleted programmes can only be retrieved if you do a Channel Scan or Auto Scan from the Installation menu. NOTE: Skip TV programme 1. Select the programme you want to skip and press the GREEN button. 2. Press OK to mark the programme to skip. The receiver will skip this programme while zapping between programmes in normal viewing mode (in channel list mode the skipped channels remain selectable).
  • Page 18: Installation Menu

    7.2 Installation menu to select the Installation menu and press OK to advance. Auto Scan (Full Scan) to select Auto Scan and press OK to enter. On Search press OK. Con rm deleting all previously stored channels if you want to proceed with the scan. The Auto Scan may take a few minutes to complete.
  • Page 19 A too high resolution set may result in a black screen. If after a few seconds, no normal picture should NOTE: appear, press EXIT to restore the previous setting. When in doubt, refer to the user manual of your TV. Use this option to select the aspect ratio of your TV and the preferred conversion method.
  • Page 20: Tools Menu

    PC in FAT32, it may work also. Warning: The format function will delete all data and information from your USB device or selected partition. STRONG will not take any responsibility for damaged or lost data on the USB device.
  • Page 21: Epg Screen

    Upgrade by USB Download the required update le for your receiver model from the support page on our website www.strong-eu.com if available, or contact your local dealer. Unzip the le on your computer, if necessary, and copy it to root folder of your USB storage device. The USB device must have been formatted in FAT32.
  • Page 22: Media Player

    JPG* Picture *STRONG cannot guarantee the playback of video, audio or picture les although extensions are listed here, as the correct playback depends on codec used, data bit rate and resolution as well. PVR, Playback of own recordings After a recording has been made you will nd it in the PVR section of the Media player in a list created on your external USB storage device.
  • Page 23 Use the coloured buttons and numeric buttons as indicated on screen to perform more actions. Music Select a music le (or le in a folder) and press OK to start playback. During playback, following functions are available: Change the Audio volume. Start playback of the selected le.
  • Page 24: Simple Troubleshooting

    Default password is 1234. Forgotten channel lock Contact local Service Hotline or send email to our code. Support via www.strong-eu.com . Signals are interrupted Antenna signals are too Press the INFO button on remote 3x to call up signal or blocking is visible on weak or have re ections/ bars and check your cable connections and leads.
  • Page 25 System & Memory Main Processor Ali M2661 SDRAM 256MB FLASH Size Connectors ANT IN IEC Female HDMI Version 2.0b TV (SCART) USB Port USB2.0 Type A, 5V, 500mA S/PDIF coaxial Coaxial Power adapter input General data Power supply: Input voltage power adapter: AC 100 - 240 V AC ~ 50/60 Hz Output voltage power adapter: DC 12 V, 1 A...
