2. On the Fault Detection page, enter values for the parameters indicated
Note
Web Page Item
Triggered Settings
Message Playbacks
Play Message Locally
Make Call to Extension
Dial Out Extension
Dial Out ID
Multicast Audio
Multicast Address
Multicast Port
Enable Polycom Paging
Polycom Channel
CyberData Corporation
in Table 2-21.
The question mark icon (
after the Toggle Help button is pressed

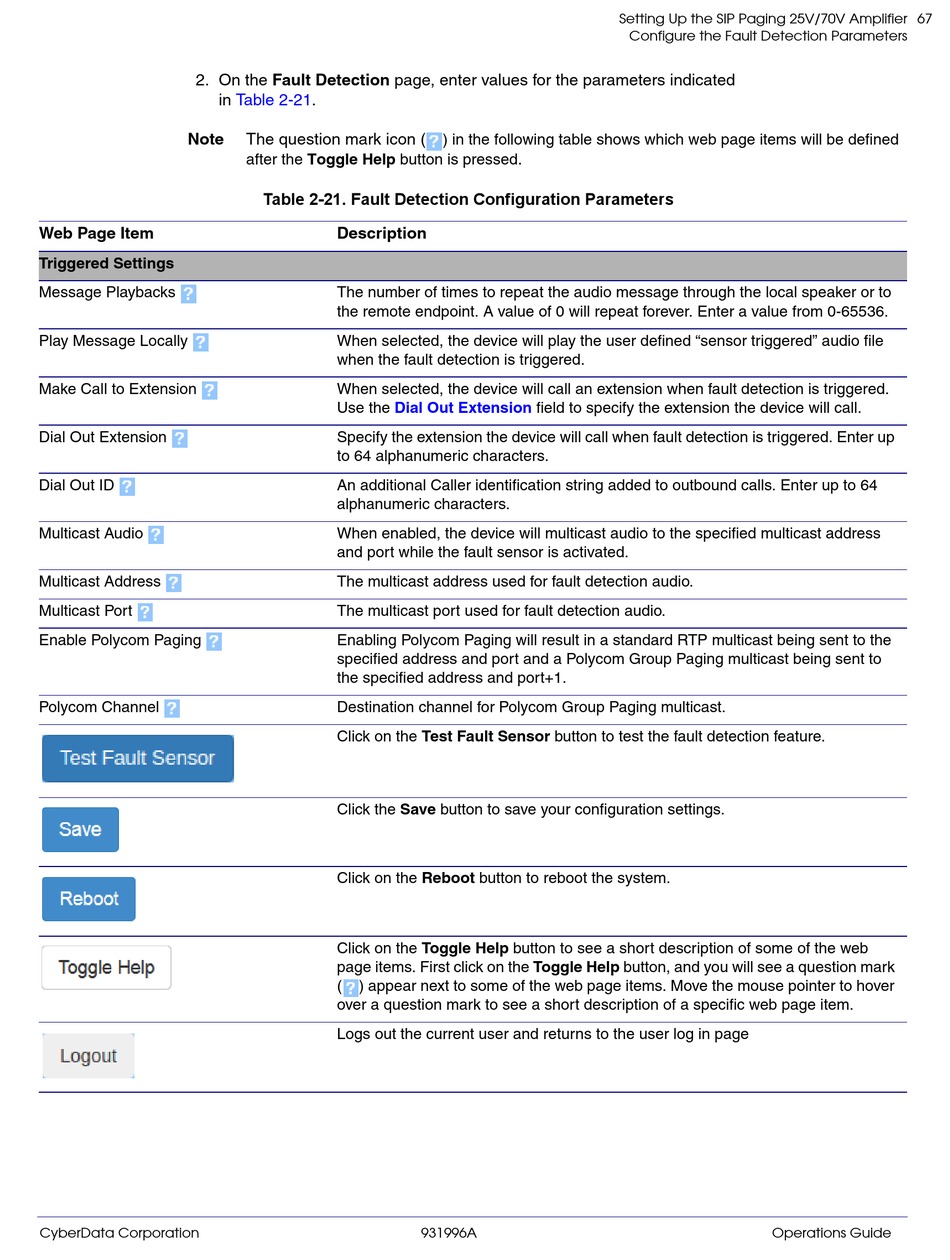

Table 2-21. Fault Detection Configuration Parameters
Description
The number of times to repeat the audio message through the local speaker or to
the remote endpoint. A value of 0 will repeat forever. Enter a value from 0-65536.
When selected, the device will play the user defined "sensor triggered" audio file
when the fault detection is triggered.
When selected, the device will call an extension when fault detection is triggered.
Use the Dial Out Extension
Specify the extension the device will call when fault detection is triggered. Enter up
to 64 alphanumeric characters.
An additional Caller identification string added to outbound calls. Enter up to 64
alphanumeric characters.
When enabled, the device will multicast audio to the specified multicast address
and port while the fault sensor is activated.
The multicast address used for fault detection audio.
The multicast port used for fault detection audio.
Enabling Polycom Paging will result in a standard RTP multicast being sent to the
specified address and port and a Polycom Group Paging multicast being sent to
the specified address and port+1.
Destination channel for Polycom Group Paging multicast.
Click on the Test Fault Sensor button to test the fault detection feature.
Click the Save button to save your configuration settings.
Click on the Reboot button to reboot the system.
Click on the Toggle Help button to see a short description of some of the web
page items. First click on the Toggle Help button, and you will see a question mark
( ) appear next to some of the web page items. Move the mouse pointer to hover
over a question mark to see a short description of a specific web page item.
Logs out the current user and returns to the user log in page
) in the following table shows which web page items will be defined
.
field to specify the extension the device will call.
931996A
Setting Up the SIP Paging 25V/70V Amplifier
Configure the Fault Detection Parameters
Operations Guide
