Installing the Ronin Mount

1. On the drone, remove the 3 screws on each leg of the stock mount (Figure 12). Keep the
screws, they will be used again.
2. On the Ronin Mount, loosen the screws that hold the legs to the rails enough so that they can
be rotated (Figure 13).
3. Rotate legs so that the mount stands off the drone (Figure 14).
10

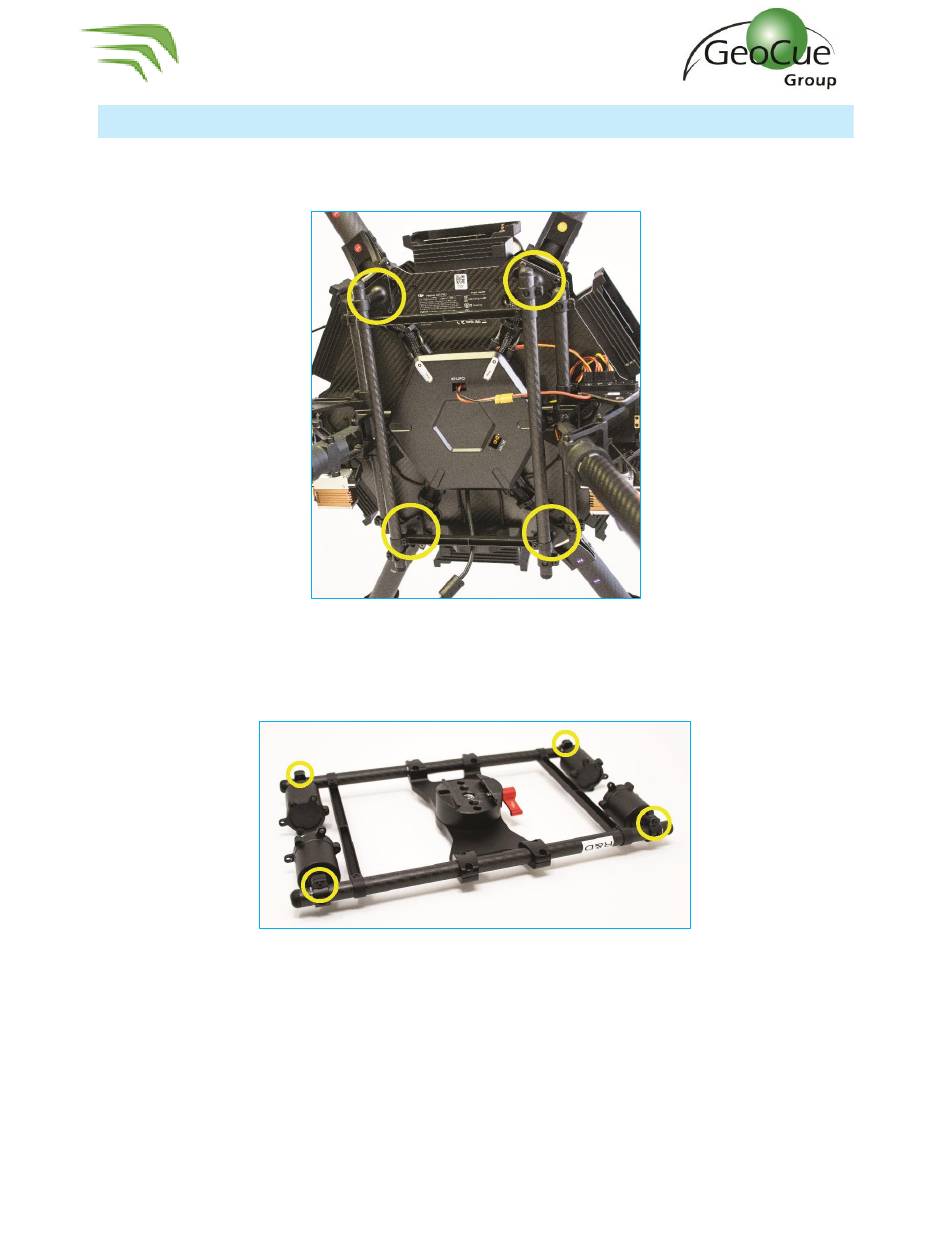

Figure 12 – Remove stock mount screws
Figure 13 – Loosen leg screws
