True View 3DIS Installation

The True View 3DIS mounts using a standard DJI Ronin mount on the DJI M600. The instructions below
describe how to install the True View 410 on the M600 when you are ready to use the system to collect
data.
1. Place the drone on a stable surface with the landing gear down.
2. Turn the red lever (Figure 23) on the Ronin mount until it is loose, but do not remove it
completely.
3. Align True View so that the battery compartment is facing forward on the drone and the laser
scanner is towards the back.
4. From the back of the drone, lift the True View up to the mount from the left side and slide the
True View mount into the Ronin mount (Figure 24). Slide until the True View dove tail is in the
center of the Ronin mount (Figure 25).
17

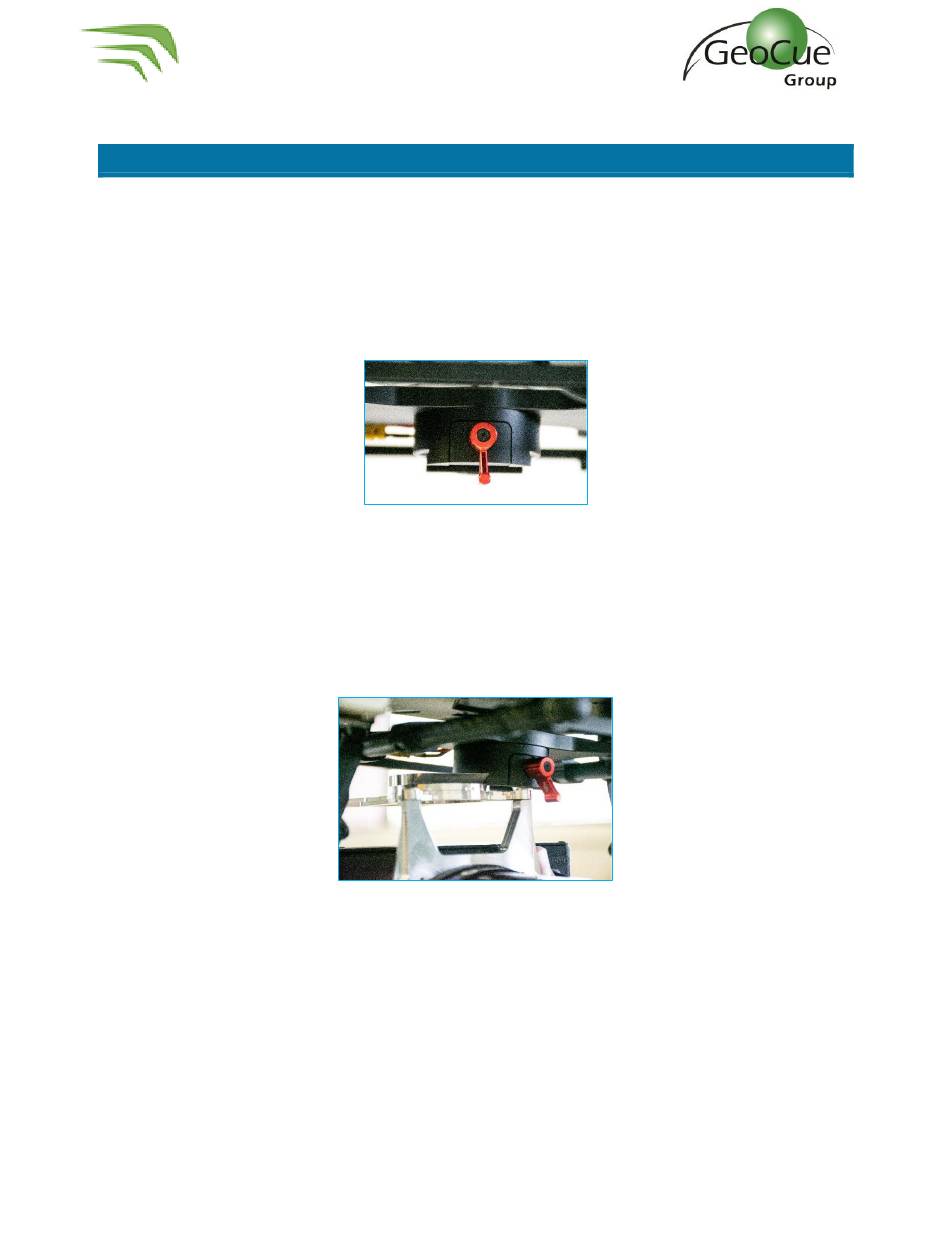

Figure 23 – Ronin mount locking lever
Figure 24 – Ronin mount
