True View 515 Hardware User Guide

True View Hardware Integration Kit (M300)

The True View 3DIS was designed to be used with the GeoCue True View Integration kit, which includes
an antenna mast base and a True View mounting bracket for M300 with vibration dampeners. If your
True View 3DIS and M300 were purchased through GeoCue, the antenna mast base and True View
mounting bracket were installed by a GeoCue technician. If you purchased your M300 from a third
party, you will need to install these components before using your True View system. The following
steps explain how to install your True View integration kit.

Installing the Controller Plate, Antenna Mast Base

1. To install the controller plate and antenna mast base you will need the components listed
below.
a. (1) Antenna Mast Base
b. (1) Controller Plate
c. Torque screwdriver set to 5.7 Inch-Pounds (INLB) (Figure 18)

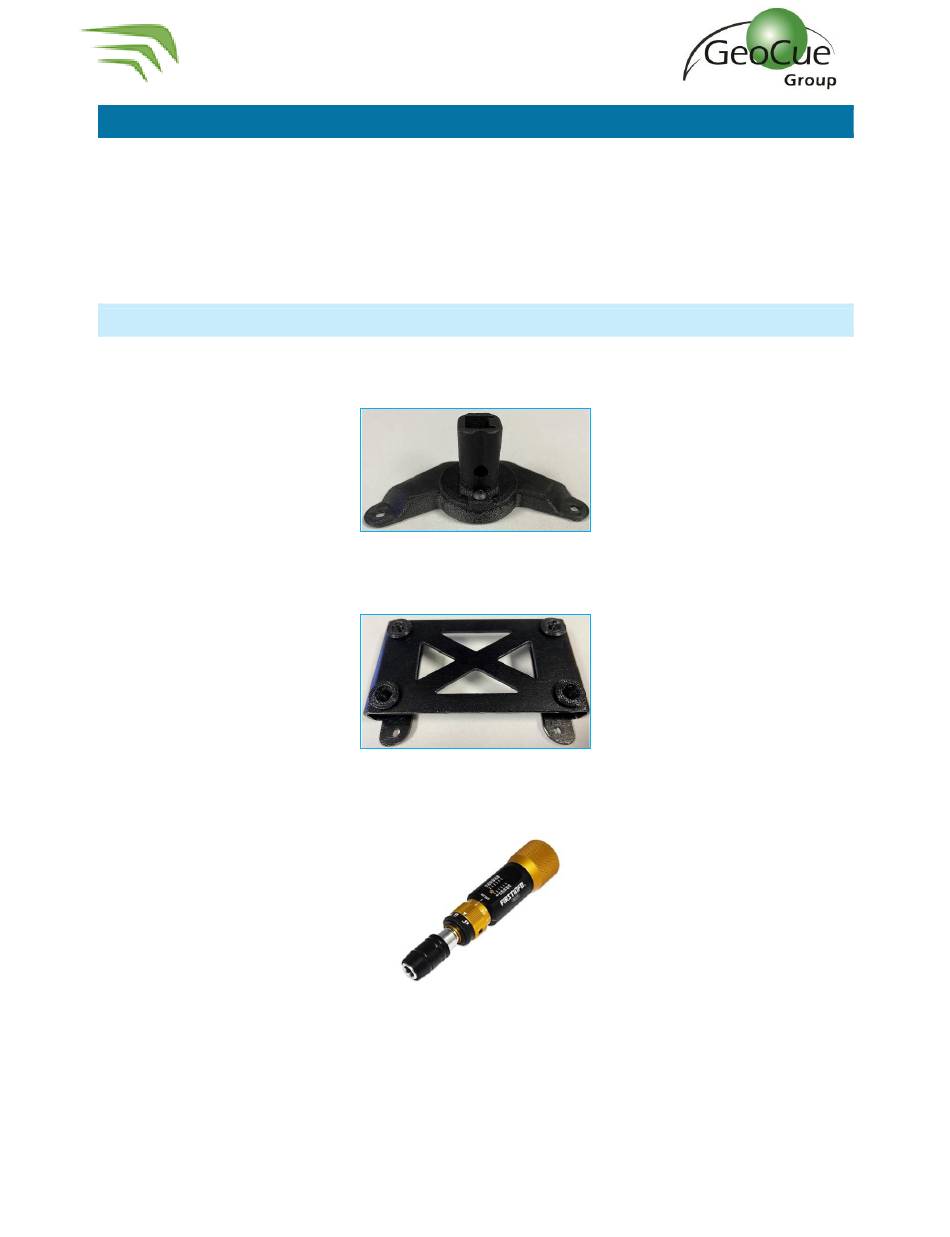

12
(Figure 16)
Figure 16 – Antenna Mast Base
(Figure 17)
Figure 17 – Controller Plate
Figure 18
