Installing M300 True View Mounting Bracket

i. M300 True View mounting bracket (Figure 20) with slanted TPU spacer (Figure 22)
attached.
j. (2) M3 x 0.5 - 10mm length screw
k. (2) M3 Nylon Washer
l. (2) M3 x 0.5 – 20mm length screw
m. (2) Slanted TPU Spacer
14

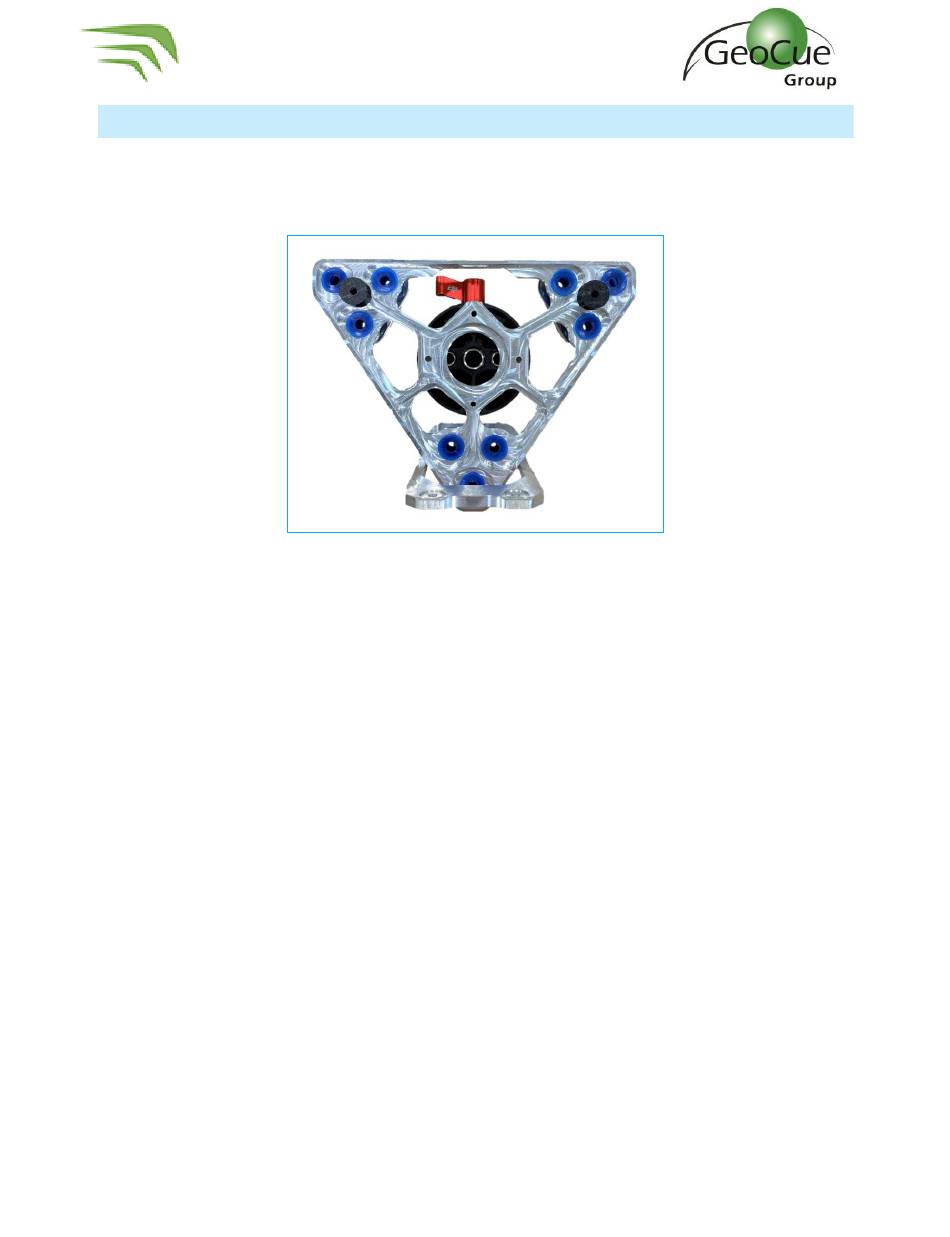

Figure 20 – M300 True View bracket
