5. Tighten the red lever until the True View is tightly locked in place.
6. Loop the safety lanyard through the upper metal plate of the True View and around one of the
bars of the payload mount and close the safety lanyard (Figure 26).
7. Connect the USB or CAT6 cable to the controller box (Figure 27) and route it down to the True
View unit. Be sure to secure any excess cable but leave enough slack to prevent tension on the
connector. The cable type depends on your controller firmware.
18

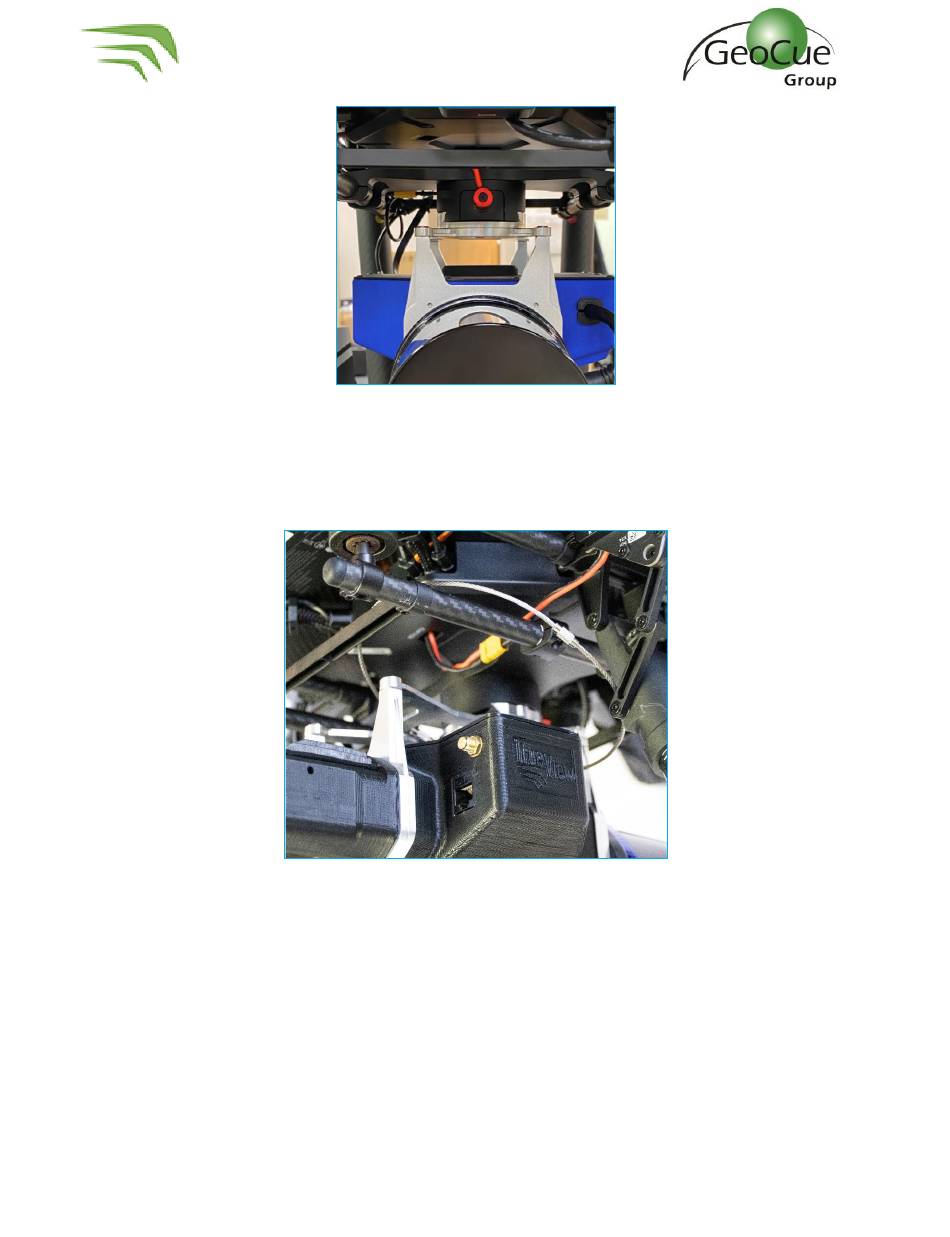

Figure 25 – True View 410 in Ronin mount
Figure 26 – Safety lanyard
