True View Data Storage Devices

UMS

The True View UMS (USB mass storage) device is the media attached to the True View sensor on which
A True View Cycle will be written during flight operations and system wind-down.
The UMS should meet the following requirements to be used on the system.
1. USB-C connection (USB 3.1)
2. Format:
a. ExFAT after updating firmware to v3.0.7.1 or later.
b. NTFS after updating firmware to v2.0.3 through v3.0.5.2.
c. FAT32 format for firmware pre v2.0.3.
3. 114 GB minimum capacity
4. Need "SystemConfiguration.json" and "CoreConfiguration.json" files on the drive during
operation.

Camera SD Cards

1. Format:
a. 32GB card – FAT32
b. 64GB or larger card – ExFAT
2. Minimum recommended read speed: 270 MB/s
3. Minimum recommended write speed: 70 MB/s
4. SD Cards should be formatted using the built in format option in the CCF for CCU firmware
v3.0.7.1 or later with camera firmware v00.72.01. Review
instructions to use the built in format tool.
a. The next best formatting option is to use the SD Card Formatter Utility from the SD
Association. It is not recommended to use the Windows OS formatting utility.

System Configuration File (SCF)

22

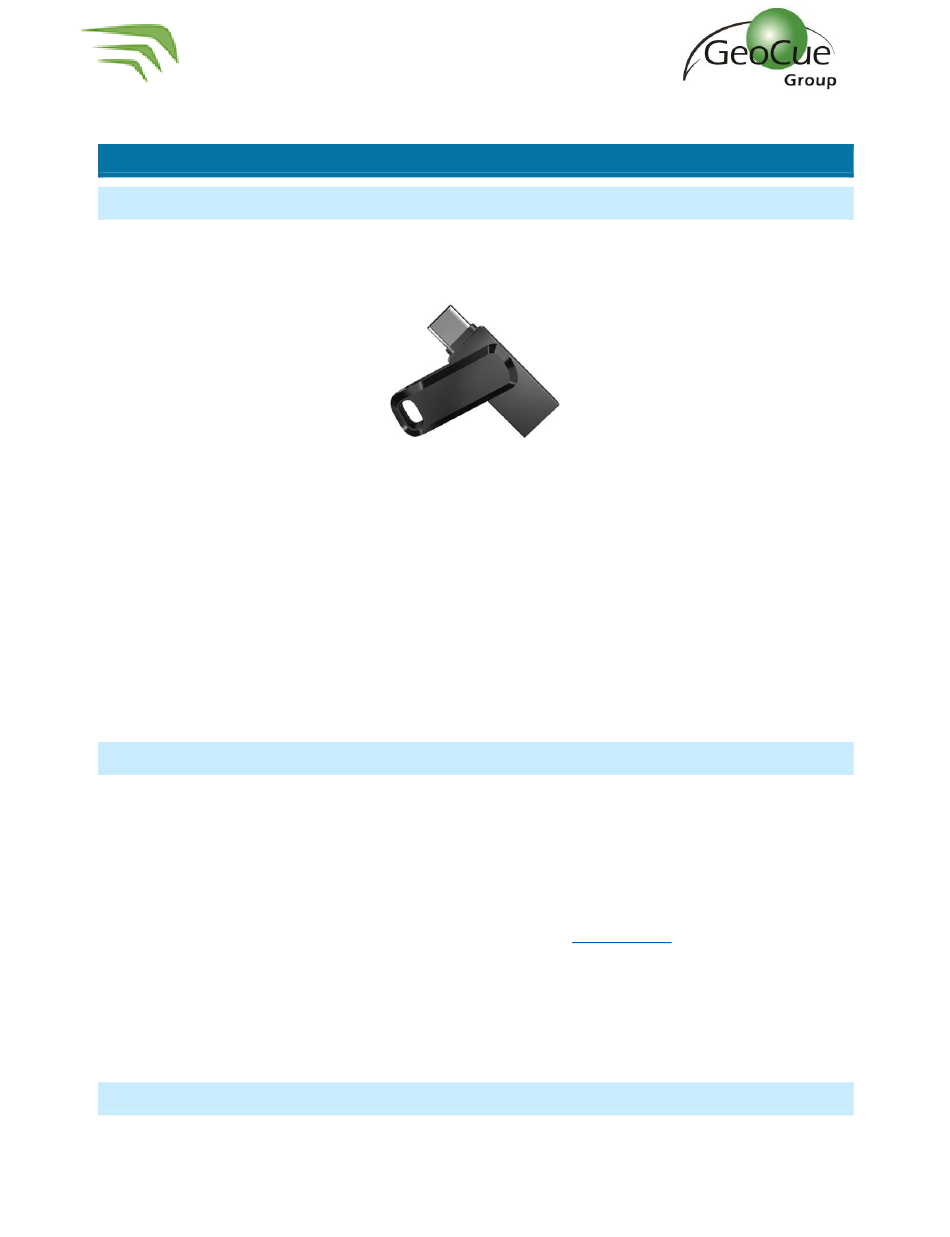

Figure 31 - UMS
True View 515 Hardware User Guide
CCF Section 8 of this document for
