True View 515 Hardware User Guide
8. Attach the USB or CAT6 cable to the True View unit (Figure 28). Be sure to secure any excess
cable but leave enough slack to prevent tension on the connector.
9. Attach the GNSS antenna cable to the True View unit (Figure 28) and screw the antenna onto
the antenna mount (Figure 29) or insert into the revision 2 antenna mount. Do not use the
integral mount on the readout controller box if your control box has one as this feature has
been deprecated. Be sure to secure any excess cable but leave enough slack to prevent tension
on the connector.
19

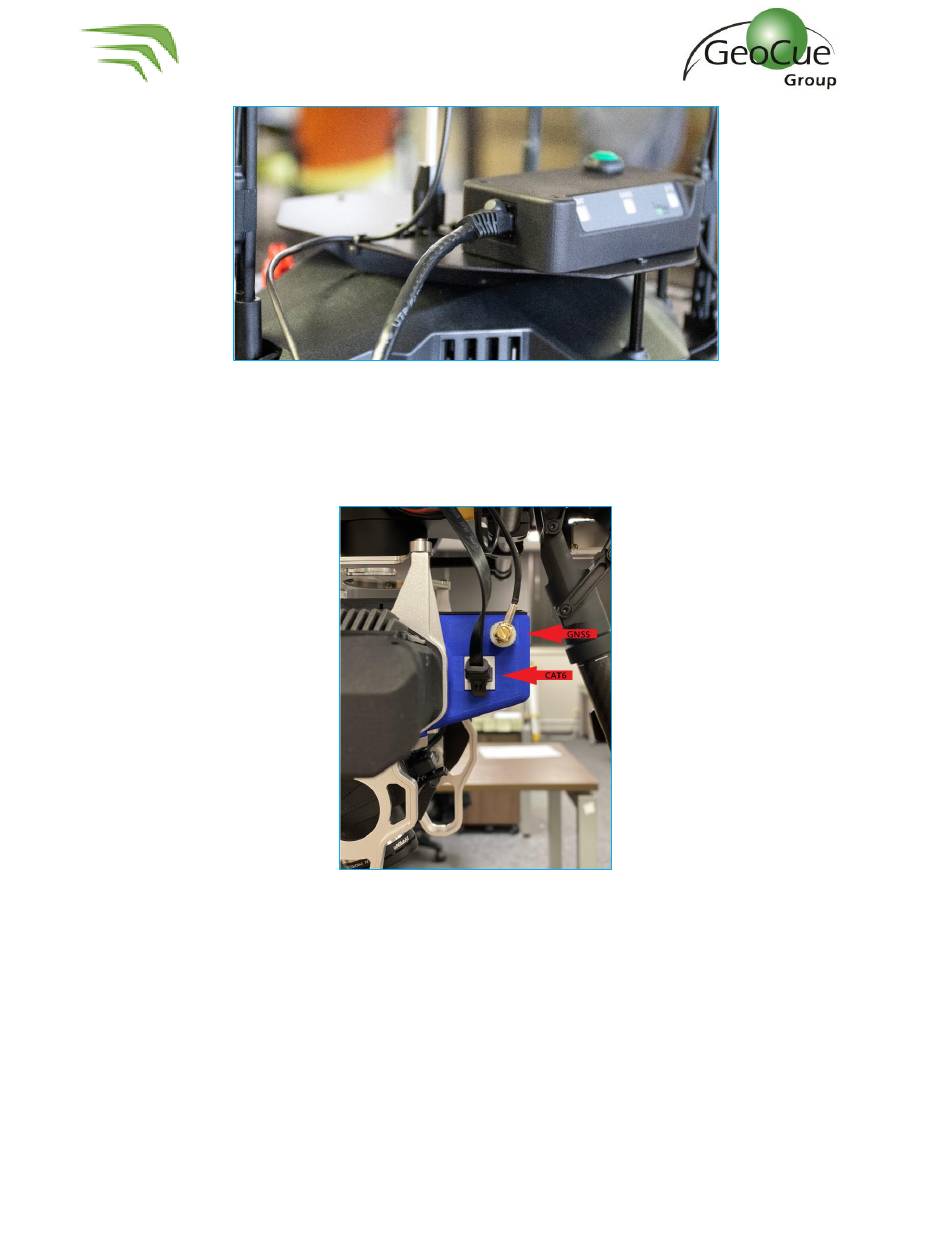

Figure 27 – Control box cable
Figure 28 – Control box cable into True View
