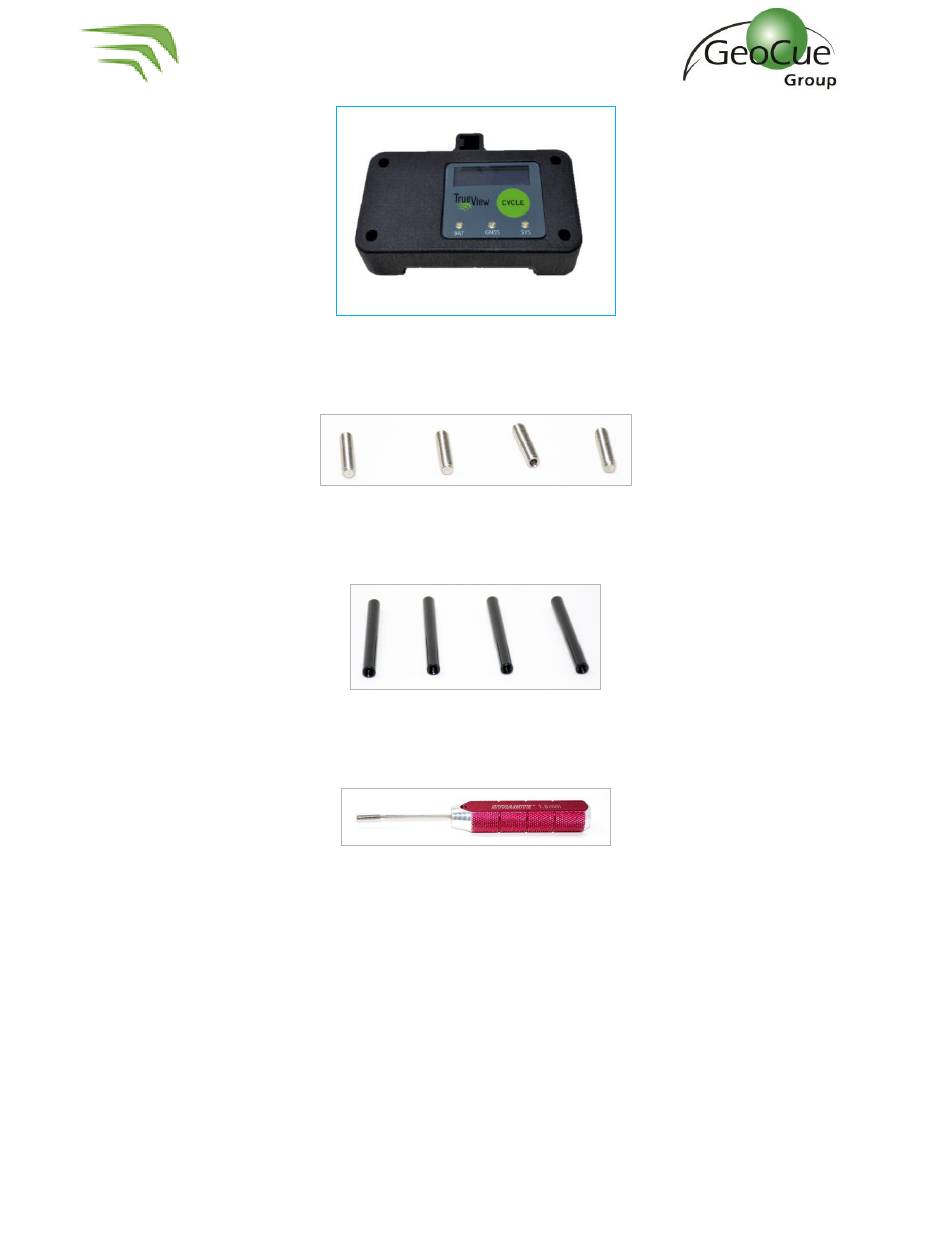

Figure 3 - Controller Box with readout display
c. Set Screw (4) (Figure 4)
Figure 4 – Set Screws
d. 50mm Spacer (4) (Figure 5)
Figure 5 - Spacers
e. Hex Driver – 1.5mm & 2mm (Figure 6)
Figure 6 – Hex Driver
2. On the drone, remove the 4 screws indicated below (Figure 7). These screws will be used to
attach the mounting plate later, so save them for step 5.
