INSTALLING THE RONIN MOUNT

1. On the drone, remove the 3 screws on each leg of the stock mount (Figure 11). Keep the
screws, they will be used again.
2. On the Ronin Mount, loosen the screws that hold the legs to the rails enough so that they can
be rotated (Figure 12).
3. Rotate legs so that the mount stands off the drone (Figure 13).
10

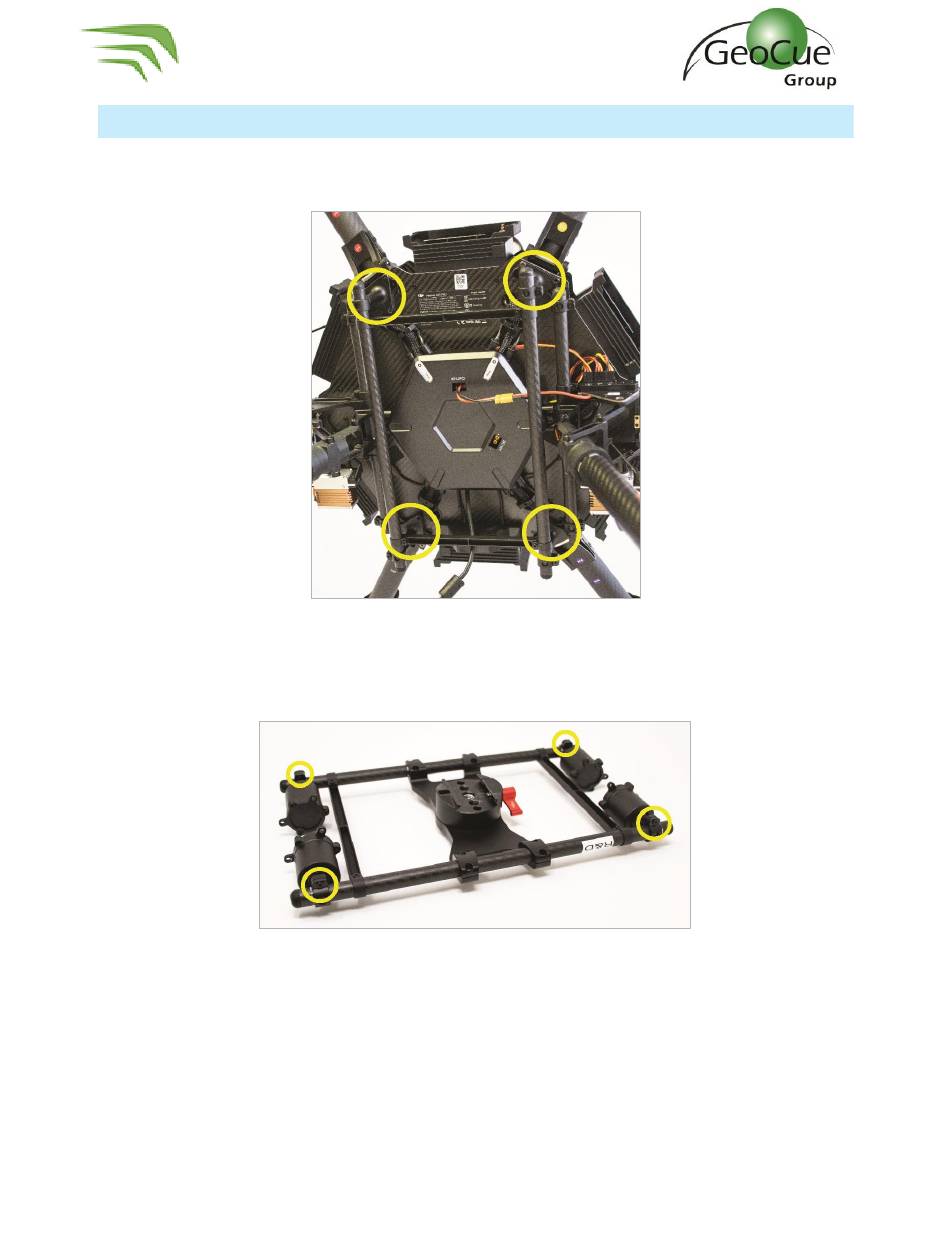

Figure 11
Figure 12
