True View 515 Hardware User Guide
d. Threadlocker – Removeable Blue 242.
e. (2) M3 x 0.5 - 8mm length screw
f.
(2) M3 x 0.5 - 10mm length screw
g. (2) 4mm Spacer

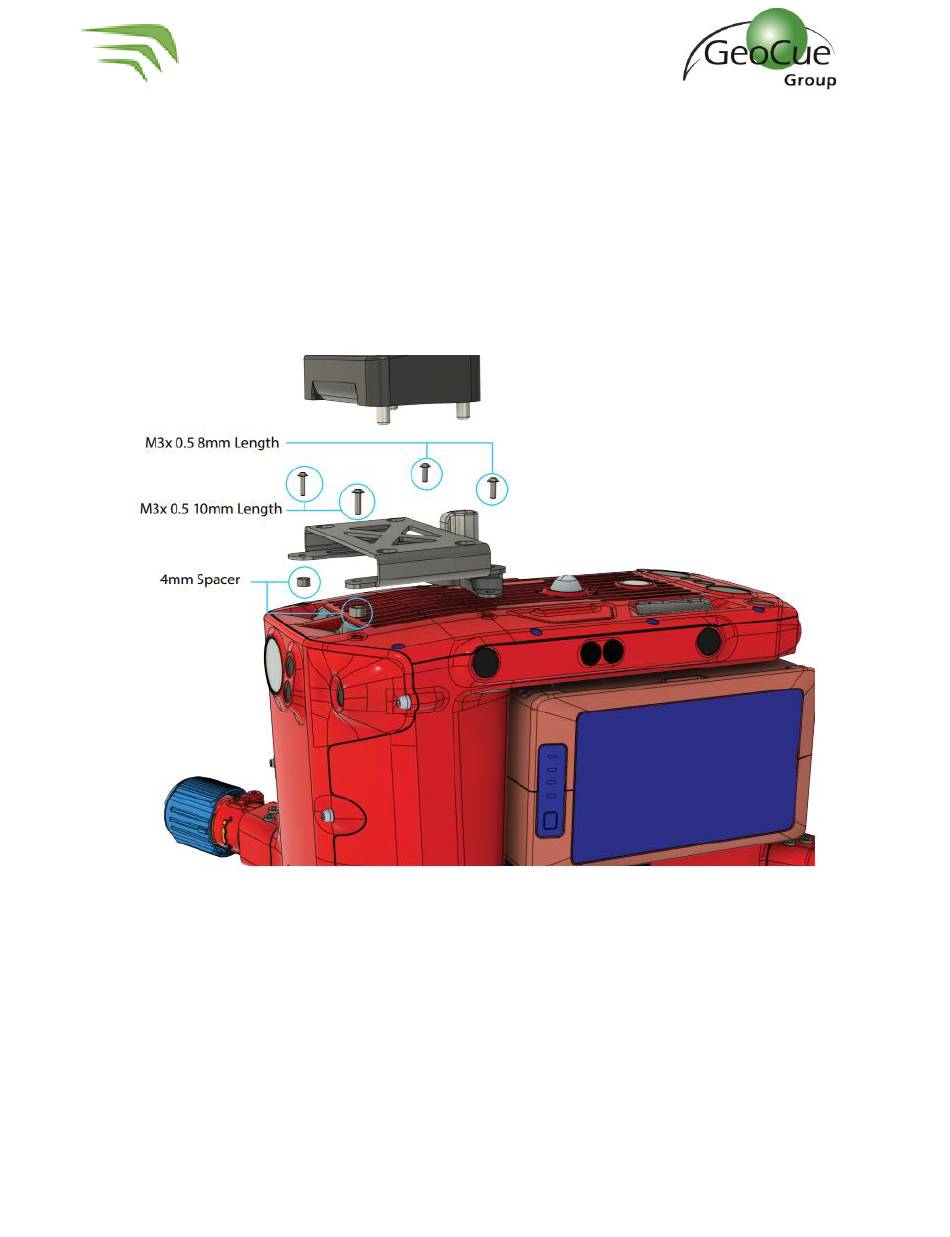

Apply Threadlocker to all screws and tighten to 5.7 inch pounds. Figure 19 shows the installation
diagram.
13
Figure 19
True View 515 Hardware User Guide
10/26/2021
