True View 515 Hardware User Guide
5. Line the plate up on top of the spacers. Apply Loctite to the 4 screws removed in Step 2 (Figure
10) and secure the plate to the top of the spacers (Figure 11).
6. Install the controller box on to the top plate with the LEDs facing out away from the center of
the drone. The controller box is designed to fit into the antenna mounting plate without the
need for additional hardware.
9

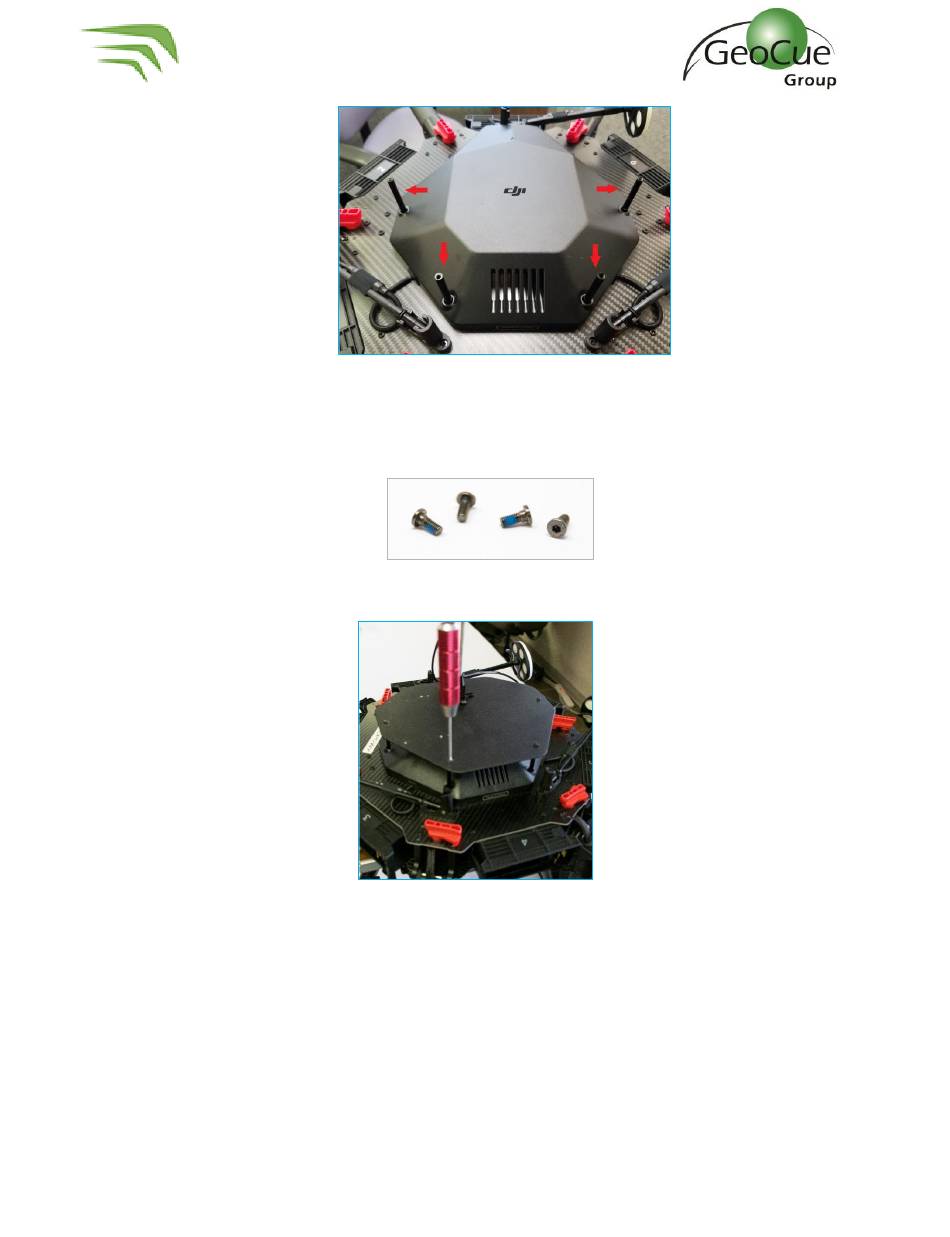

Figure 9 – Install spacers
Figure 10 – Loctite the removed screws
Figure 11 – Install the controller box
