True View 515 Hardware User Guide

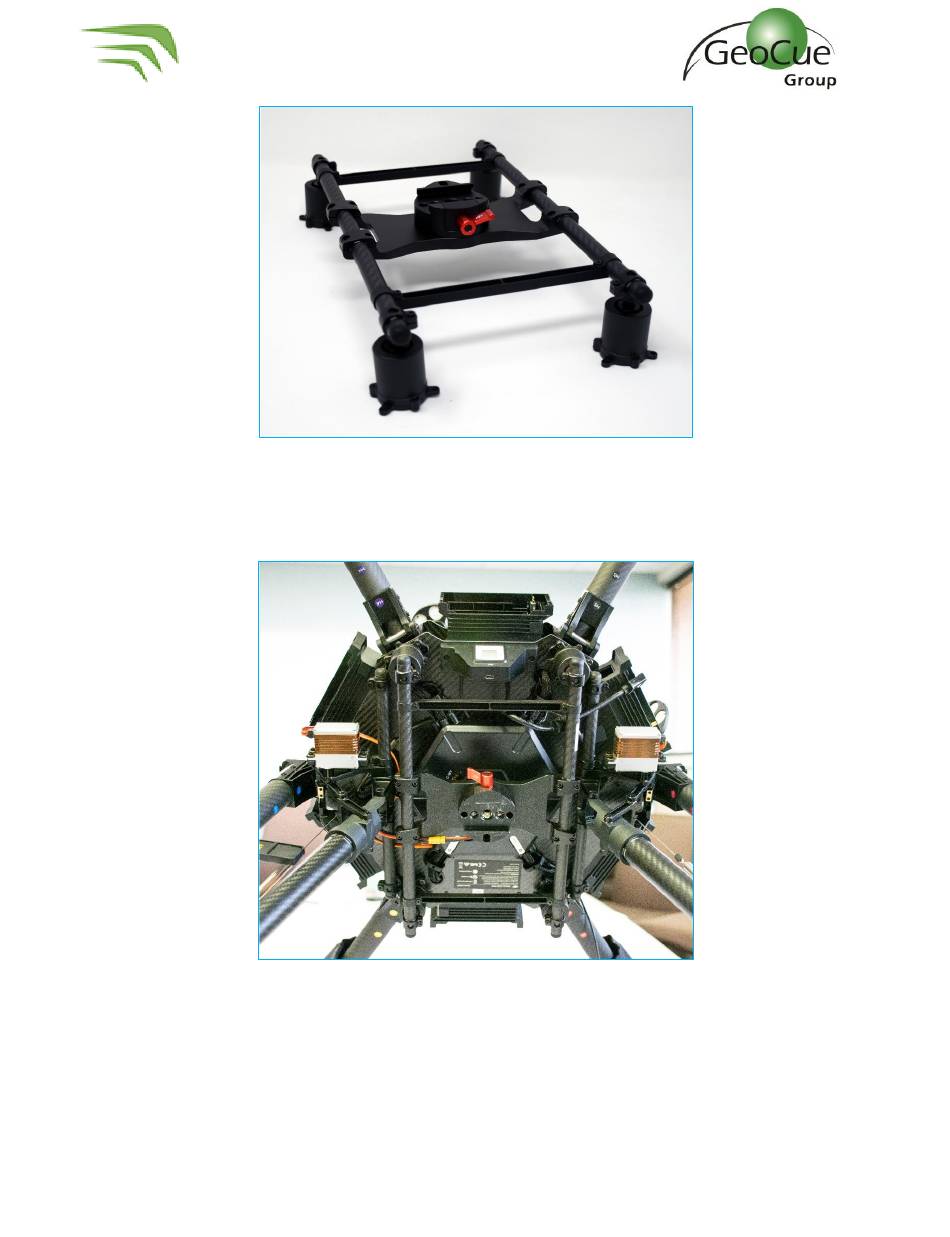

Figure 14 – Rotate Legs
4. Using the screws removed from the drone in Step 1, apply Loctite to each screw and install the
mount with the red lever facing the back of the aircraft (Figure 15).
Figure 15 – Install mount
11 True View 515 Hardware User Guide 10/26/2021
