3. Apply Loctite to the 4 Set Screws and install in the empty screw spaces from Step 2 using a
1.5mm hex driver (Figure 8).
press into the plastic plate below and could cause the plate to crack.
4. Install the four 50mm spacers on top of the set screws (Figure 9).
8

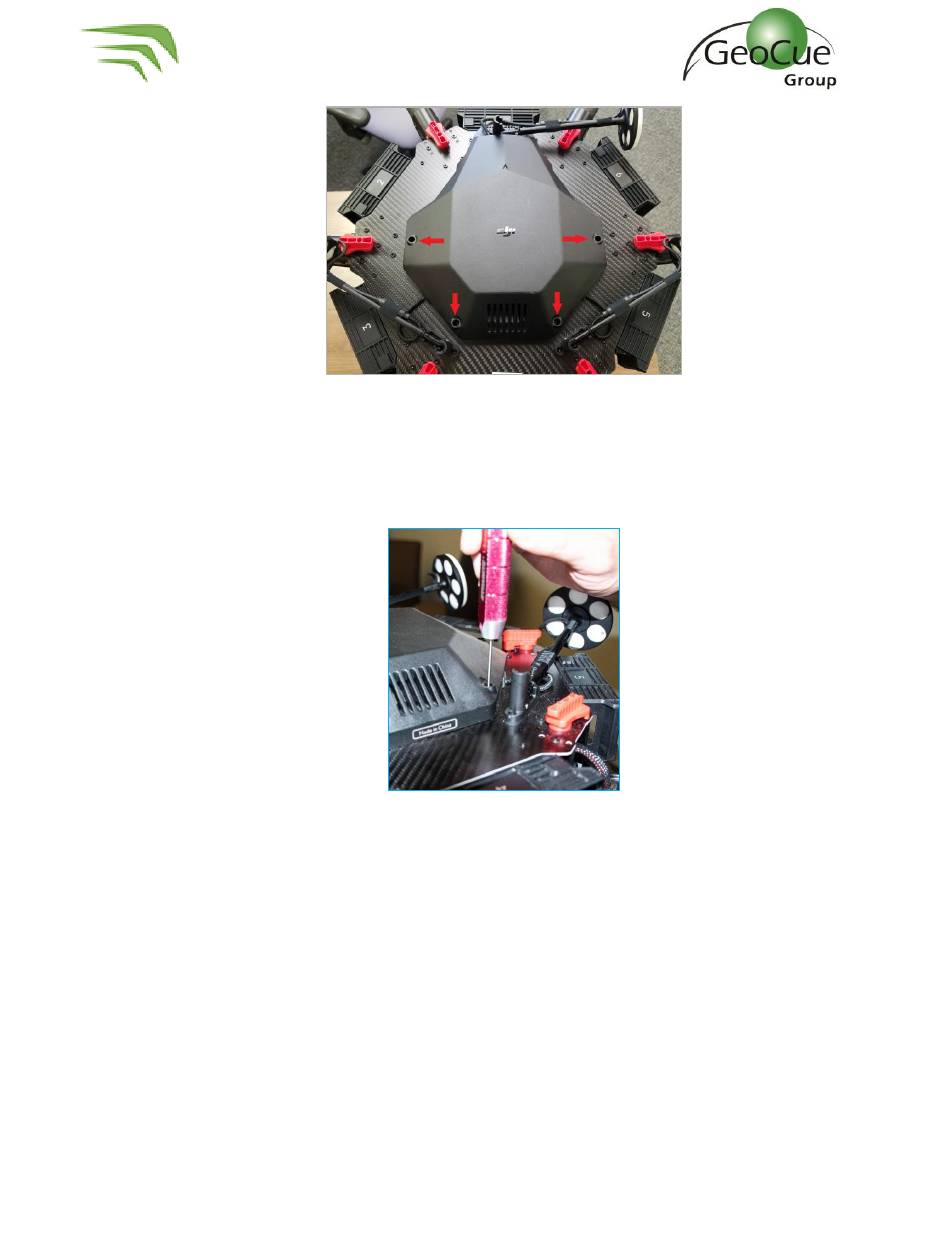

Figure 7 – Prepare for mounting
WARNING - Do not overtighten. If screws are too tight, they will
Figure 8 – Install set screws
