Y Offset

The Y offset is the distance from the APX-15 to the GNSS antenna, perpendicular to the heading of the
aircraft. If you are standing behind the aircraft looking in the direction of the heading, the offset will be
negative if the antenna is left of the centerline of the APX-15. The offset will be positive if the antenna is
to the right of the centerline of the APX-15. The APX-15 is aligned with the centerline of the True View
515 aluminum mounting frame (Figure 57).

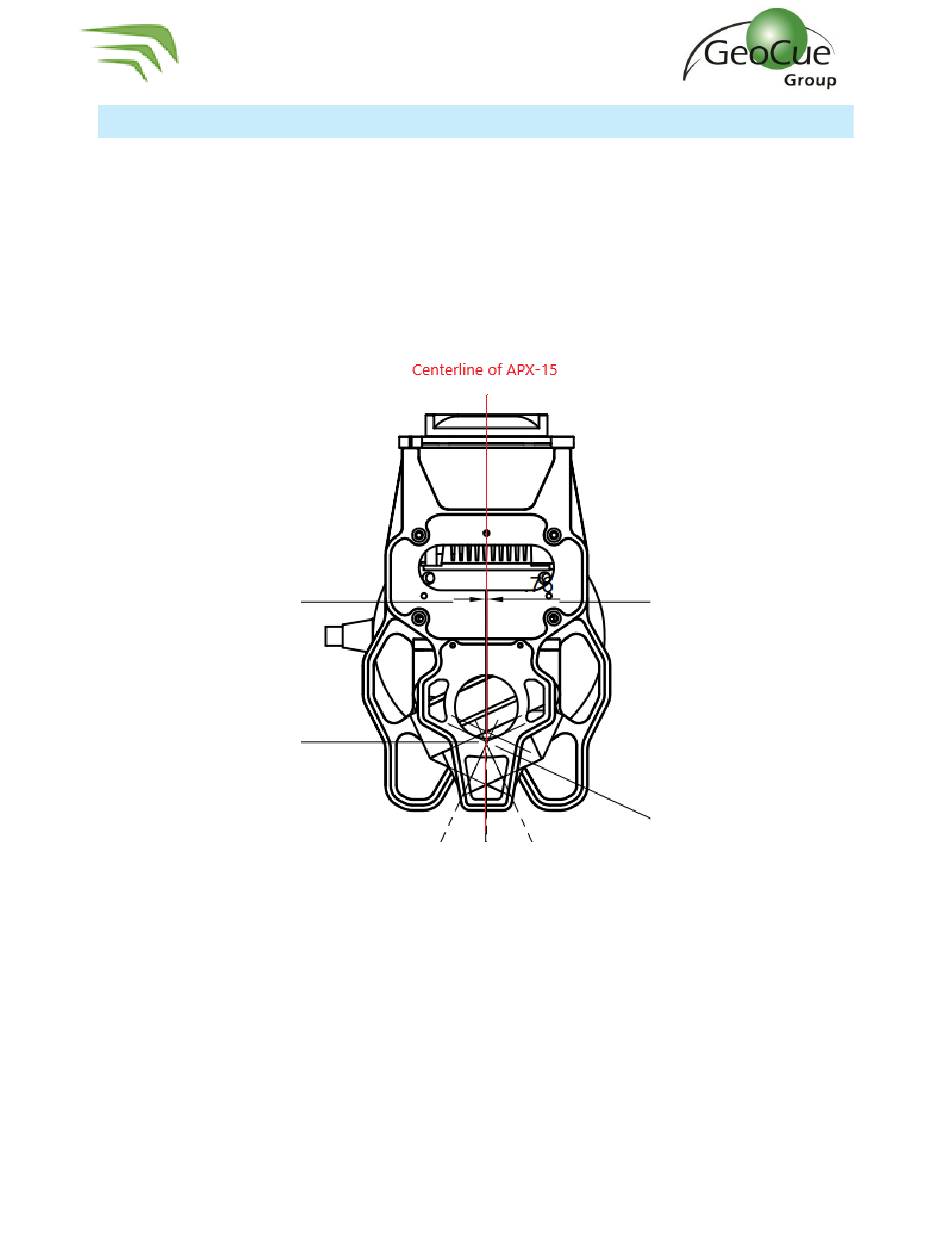

Figure 57 – APX-15 centerline
