One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Using the
EVAL-ADT7420ARDZ

FEATURES

Fully featured Arduino shield for the ADT7410, ADT7420,
ADT7310, and
ADT7320
PC control in conjunction with the Arduino IDE

EVALUATION KIT CONTENTS

EV-TEMPSENSE-ARDZ kit
EVAL-ADT7420ARDZ
evaluation board (shield)
EVAL-ADT7420MBZ
remote evaluation board
EVAL-ADT7320MBZ
remote evaluation board
2 plastic screws and washers
6-way and 4-way ribbon cables

EQUIPMENT NEEDED

Arduino or
Linduino
development board
USB cable (A type end to B type end)
PC or laptop running Windows® 10 operating system

SOFTWARE NEEDED

LTSketchbook
ADT7420
No-OS driver
Arduino IDE
USB
SDP-S
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.

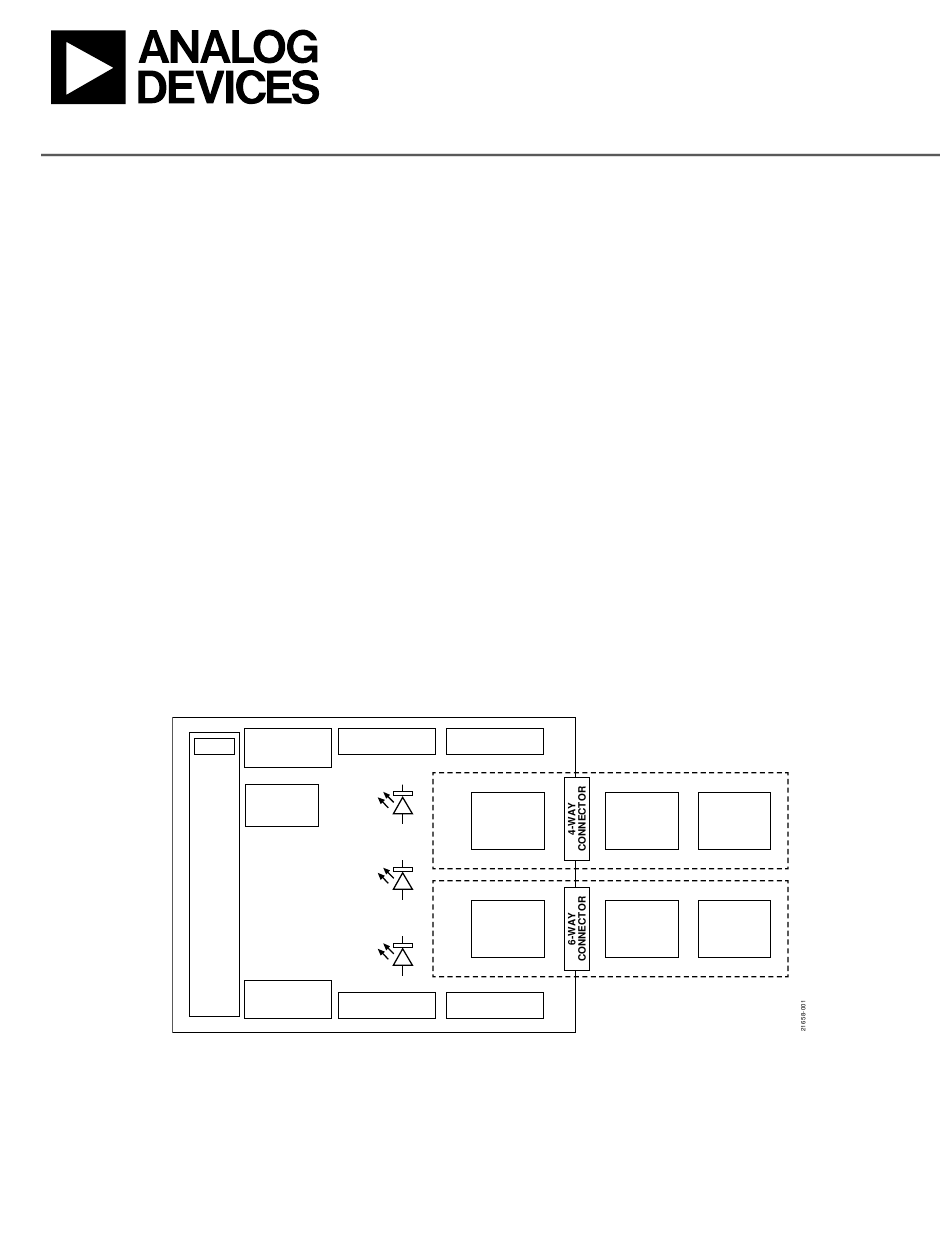

EV-TEMPSENSE-ARDZ FUNCTIONAL BLOCK DIAGRAM

6-WAY
EXTERNAL
CONNECTOR
POWER
5V CONNECTOR
POWER
POWER
3.0V/3.3V
GOOD
INT
ERROR
CT
ERROR
EXTERNAL
SENSOR
8-WAY
CONNECTOR
CONNECTOR
EV-TEMPSENSE-ARDZ
Shield with Arduino or

ONLINE RESOURCES

Evaluation board schematics

GENERAL DESCRIPTION

The ADT7410, ADT7420, ADT7310, and
accuracy digital temperature sensors offering breakthrough
performance over a wide industrial temperature range. The
devices contain an internal band gap reference, a temperature
sensor, and a 16-bit analog-to-digital converter (ADC) to
monitor and digitize the temperature to 0.0078°C resolution.
The devices are available in I
The EV-TEMPSENSE-ARDZ is an evaluation board kit that
allows easy evaluation of the ADT7410, ADT7420, ADT7310,
and
ADT7320
interface to these sensors on the Arduino evaluation board
(shield), or with the ribbon cable connected to the external
sensors. Consult the ADT7410, ADT7420, ADT7310, and
ADT7320
data sheets in conjunction with this user guide when
using the EV-TEMPSENSE-ARDZ with the Arduino integrated
development environment (IDE).
8-WAY
CONNECTOR
ON-BOARD SENSORS
ADT7420
2
I
C
ADT7320
SPI
10-WAY
CONNECTOR
Figure 1.
Rev. 0 | Page 1 of 6
User Guide
Linduino
Hardware
and
bill of materials
ADT7320
2
C or SPI versions.
precision digital temperature sensors. Users can
EXTERNAL SENSORS
ADT7420
ADT7420
ADT7320
ADT7320
UG-1656
are high

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV-TEMPSENSE-ARDZ and is the answer not in the manual?

Questions and answers

Related Manuals for Analog Devices EV-TEMPSENSE-ARDZ

Summary of Contents for Analog Devices EV-TEMPSENSE-ARDZ

  • Page 1: Features

    2 plastic screws and washers The devices are available in I C or SPI versions. 6-way and 4-way ribbon cables The EV-TEMPSENSE-ARDZ is an evaluation board kit that EQUIPMENT NEEDED allows easy evaluation of the ADT7410, ADT7420, ADT7310, ADT7320 precision digital temperature sensors. Users can...

  • Page 2: Table Of Contents

    Online Resources ................1 Installing the LTSketchbook ............4 General Description ................. 1 ADT7420 No Operating System (No-OS) Driver ......4 EV-TEMPSENSE-ARDZ Functional Block Diagram ....1 Load Example Sketch ..............5 Revision History ................2 Using an External ADT7420 ............5 Evaluation Board Hardware ............3 REVISION HISTORY 10/2019—Revision 0: Initial Version...

  • Page 3: Evaluation Board Hardware

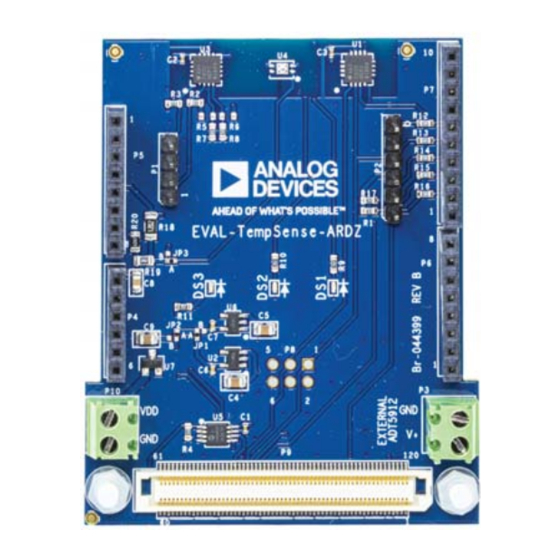

    EV-TEMPSENSE-ARDZ User Guide UG-1656 EVALUATION BOARD HARDWARE HARDWARE SETUP The EV-TEMPSENSE-ARDZ development kit contains the following boards (see Figure 2 to Figure 4):  EVAL-ADT7420ARDZ shield  EVAL-ADT7420MBZ remote evaluation board  EVAL-ADT7320MBZ remote evaluation board Place the EVAL-ADT7420ARDZ shield on top of the Arduino™...

  • Page 4: Installing The Arduino Ide

    Download the adt720.h and adt7420.c files, required to operate Extract this zip file (right click the file) to a location for the No-OS driver, from the Analog Devices, Inc., GitHub working files, such as the Documents folder. repository, as shown in Figure 8. Go to www.github.com/...

  • Page 5: Load Example Sketch

    EV-TEMPSENSE-ARDZ User Guide UG-1656 LOAD EXAMPLE SKETCH When the uploading process is completed, a message at the bottom of the IDE displays the message in Figure 13. After downloading and placing all files in the correct location, take the following steps to load an example sketch from the LTSketchbook: Close and open a new Arduino IDE.
  • Page 6 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
