1. Checklist (Cont.)
MagnaClean CMX Midi Pro (FL1-03-06631)
Item Description
A CMX Midi Pro Skid Base
B
MagnaClean CMX Midi Filter
C
Grundfos DPS Diff. Pressure Sensor
D 28mm Compression Ball Valves
E ADEY DEK1002 Modbus Controller
F LED Warning Light

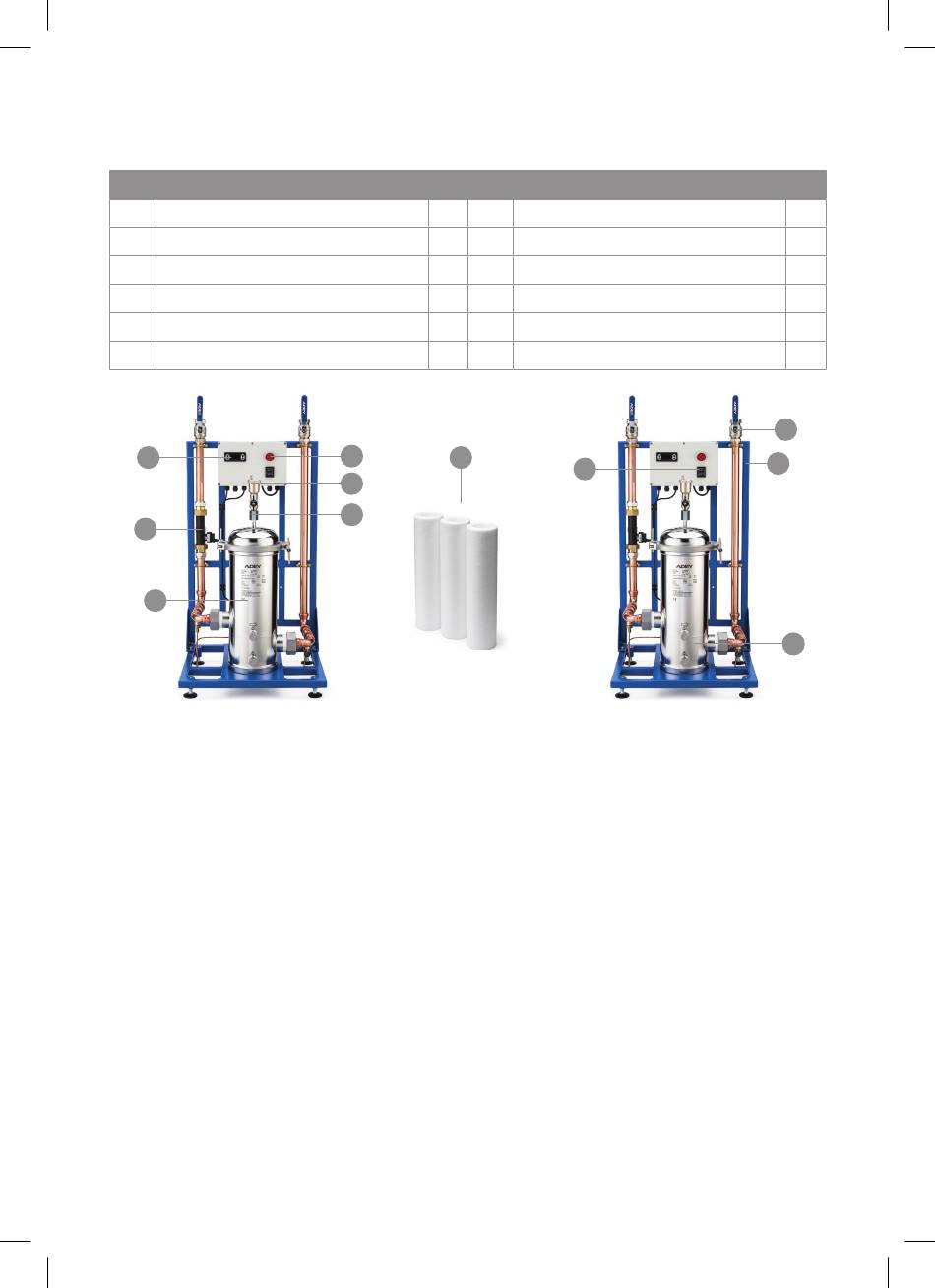

Fig. 2
E
I
B

2. Location

Location: These sidestream skid units should be installed on a solid, level floor which is able to support
the filled weight of the unit of c.41-44kg, dependent on the model being installed. Please also ensure
that minimum clearance requirements are followed to allow for servicing of the unit, which can be
found on page 5.
Access and minimum clearance requirements: : For emergencies and maintenance, the sidestream
skid units must be easily accessible and have the minimum clearance around it as laid out in Fig. 3.
on page 5. Additional access to the front of the unit will be required to service the filter/unit and
programme/operate the controller.
4
Qty Item Description
1 G Power Switch
H
1 Automatic Air Vent (1") & Valve
I
1 Grundfos VFS Flow & Temp Sensor
2 J ¼" Male - ½" Female Adaptor
1 K 50-Micron Filter Cartridges
1
F
K
H
J
G
Qty
1
1
1
1
3
D
A
C
