Checklist - Adey MagnaClean CMX MIDI PRO ASSIST Installation And Servicing

Warnings
The electrical installation must be carried out in accordance with the current national electrical
regulations by a qualified person.
This appliance must be earthed via the supply cord.
The pump is not accessible in normal operation mode. The unit must be operated with the
front cover in place.
This appliance must not be used for any other application without the written consent of ADEY
Commercial Limited.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Children should be supervised to ensure that they do not play with the appliance.
Please read installation details carefully as they are intended to ensure this product provides
long, trouble free service. Failure to install & maintain the units in accordance with the
guidelines in this manual may lead to invalidation of the product warranty.

1. Checklist

IMPORTANT: With the appliance removed from its packaging, check for any damage prior to
installation. If any damage is found, please contact ADEY Customer Services on +44 (0)1242 546717
within 24 hours of receipt.
MagnaClean CMX Midi Pro Assist (FL1-03-06632)
Item Description
A CMX Midi Pro Assist Skid Base
B MagnaClean CMX Midi Filter
C Grundfos DPS Diff. Pressure Sensor
D 28mm Compression Ball Valves
E Grundfos UPM3 FLEX AS 130 Pump
F
ADEY DEK1002 Modbus Controller

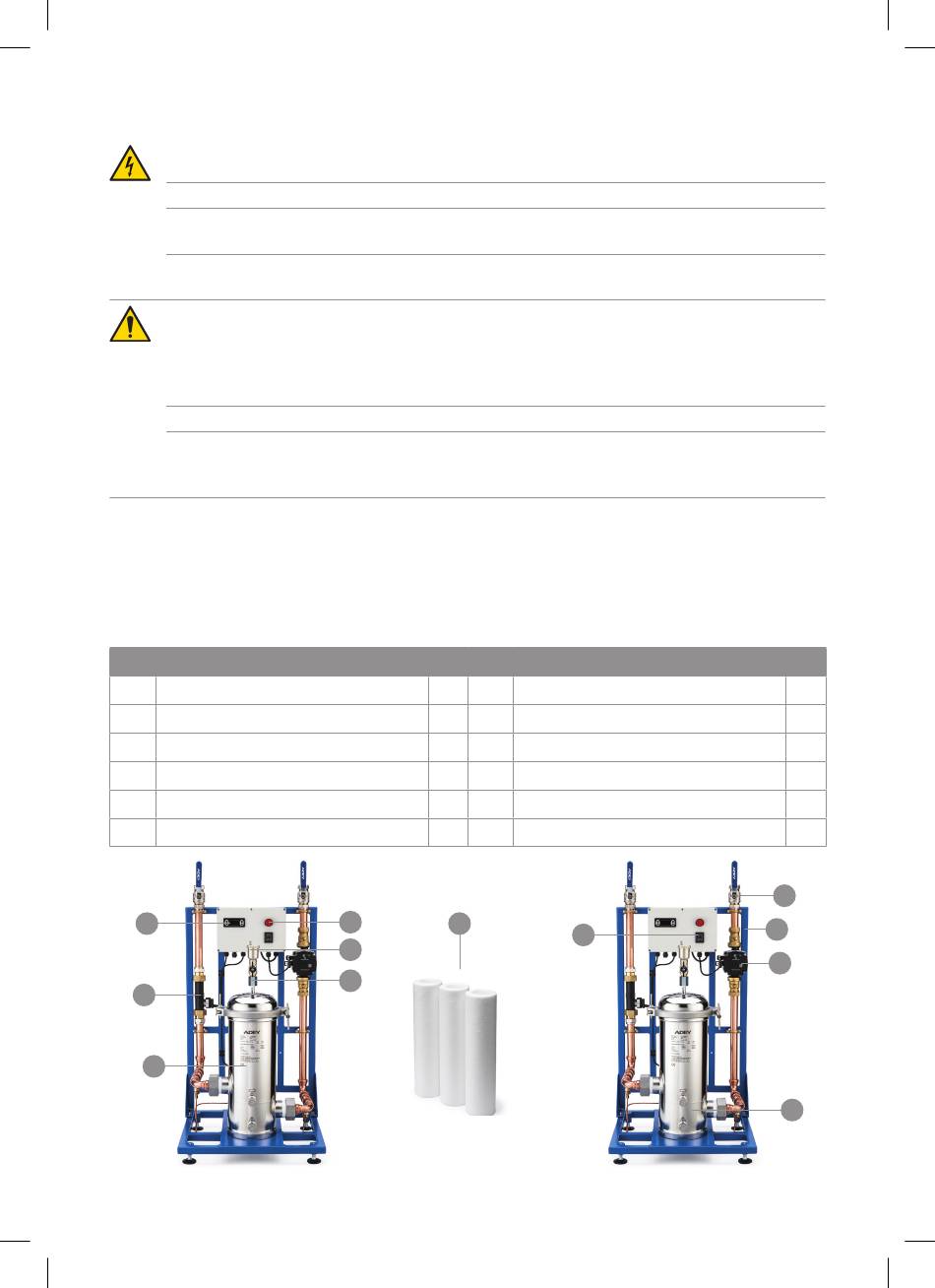

Fig. 1
F
J
B
Qty Item Description
1 G LED Warning Light
1 H Power Switch
1 I Automatic Air Vent (1") & Valve
2 J Grundfos VFS Flow & Temp Sensor
1 K ¼" Male - ½" Female Adaptor
L
1 50-Micron Filter Cartridges
G
L
I
K
H
Qty
1
1
1
1
1
3
D
A
E
C
3
