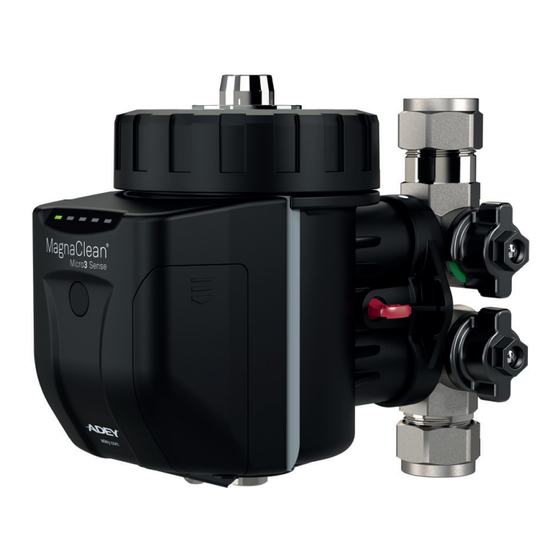

- Page 1 Micro3 SIM ENABLED Installation and servicing...
- Page 2 IMPORTANT Always follow the Standard Electrical Best Practice guidelines when installing a MagnaClean filter. A copy of these can be found at http://www.hse.gov.uk/electricity For the most up to date version of the MagnaClean Micro3 Sense Installation and Servicing instructions visit adey.com. Warranty Terms & Conditions can be found at adey.com...
-
Page 3: Technical Specification
Technical specification Operating Parameters: Internal water operating temperature: 3°C to 95°C Internal operating water pressure: Up to 6 bar Recommended ambient room temperature: 3°C to 35°C Maximum flow rate: 50L/min Flow direction: Bi-directional Fluid capacity: 250ml Inlet: 22mm compression at valve Outlet: 22mm compression at valve Electronic sub-assembly: Enclosure rated to IP52... - Page 4 It is recommended that the filter is installed by a qualified heating engineer. Installation overview MagnaClean Micro3 Sense® can be installed anywhere before the boiler. To achieve the best level of protection, it is recommended that the filter is fitted after the last radiator and before the boiler.
- Page 5 Manage all your connected devices via the “Sense App” and “Sense Portal” Your Subscription Results can be viewed and managed in the ADEY Sense App and ADEY Sense portal (subject to subscription). To access the portal visit: sense.adey.com ®...
- Page 6 ADEY Sense ® MagnaClean Micro3 Sense Dashboard Overview: Company account If you are name connected to more than one ADEY Sense account, switch between them here Main dashboard displays total properties on account and latest alert status. Swiping left will sort...
- Page 7 M3SM-1597634 MENU Latest product Enables easy status reported navigation of App. Informs how the Sub menu includes: fi lter is performing, • Filter reset including • Remove fi lter recommended from account courses of action • Factory reset where appropriate Magnetite Capture Gauge Green...
- Page 8 Getting to know your SIM Enabled Filter The MagnaClean Micro3 Sense filter is a SIM enabled device and communicates system health information to your Sense dashboard via a GSM signal. You can view the live status on your smartphone, computer or tablet.
- Page 9 Quick Set-up Step 1. Power on your filter. Insert Battery LED OPERATION When batteries are fitted for the first time or All (GREEN) LEDs will illuminate for 2 seconds replaced. then go off. Note: Filter will try and connect to local networks (for time & date check only) as soon as batteries are inserted.
- Page 10 Step 3. Connect you Filter to the GSM network (Note: Use only in conjunction with the ADEY Sense App) Connection Mode LED OPERATION When prompted press and hold Check Button 1. 2nd LED will show after 6 seconds. for 6 seconds, until 2nd LED appears and then 2.
- Page 11 Cut and remove section. Your customer’s warranty registration is now complete. Your ADEY ProClub loyalty points will automatically Register fi lter according be added to your account to instructions in App. (subject to T&Cs).
- Page 12 4 13 4 14 4 15 Dose with MC1+ Protector. Refer to dosing volumes at adey.com Hand tighten. 4 16 4 17 4 18 Press and hold reset button for Tighten by a ¼ turn.
- Page 13 Servicing Isolate boiler mains power supply. ✗ Turn power off. Allow boiler/system to cool. 1. Turn valves off 2. Vent. Remove drain plug. 1. Vent 2. Catch Replace drain plug. CAUTION: Do NOT water in tray or bucket. overtighten. Remove lid assembly. Clean.
- Page 14 It is Best Practice to replace the lid Dose with MC1+ Protector. seal at each service. Only use Silicon Refer to dosing volumes at grease or water to lubricate O ring. adey.com Hand tighten. Do not use fl ux or EP grease. 4 13 4 14 4 15 Tighten by a ¼...
- Page 15 Quick-release trigger MagnaClean Micro3 Sense incorporates a secure, quick-release, trigger which enables the filter to be removed and re-installed in seconds. The connections enable easy and swift filter removal during servicing or to undertake a MagnaCleanse system flush. This also makes it ideal for systems where there is little room to install a filter.
- Page 16 Retrofi t Installation - Upgrade a MagnaClean Micro2® to a MagnaClean Micro3 Sense using the simple instructions below: Isolate boiler mains power supply. ✗ Turn power off. Allow boiler/system to cool. 1. Turn valves off 2. Vent. Remove drain plug. 1.
- Page 17 LED Flash pattern Glossary 1. Manual reading of magnetite levels inside the filter Manual Reading LED OPERATION Single press of Check Button then release. All 4 x LEDs will illuminate in sequential order (left to right). Only relevant LEDs will remain lit for a short period to represent magnetite level in filter. A clean filter will show 1 (Green) LED.
- Page 18 LED Flash pattern Glossary (cont.) 4. Low Battery Change Batteries within 30 days LED OPERATION Single press of Check Button then release. If low battery - solid (RED) LED will illuminate for 2 seconds indicating batteries need replacing. (GREEN) LEDs will still show magnetite reading. 5.
-
Page 19: Frequently Asked Questions
The homeowner’s system details are stored within the App and can be referenced at any time prior to attending an onsite visit. ADEY does not share user data with a third party. This is in line with ADEY’s data privacy policy which can be found here: https://www.adey.com/privacy-policy What are the connectivity limitations? The home’s construction and arrangement may affect the communication range. - Page 20 UK: ADEY Innovation Ltd, Unit 2, St. Modwen Park, Stonehouse, GL10 3EZ, UK. +44 (0) 1242 546 717 EU: ADEY Innovation SAS, 119 bis, Rue de Colombes, 92600 Asnières sur Seine, France. +33 (0)4 50 18 33 33 Produced from recycled material A carbon neutral company All ADEY marks are trademarks of Adey Holdings (2008) Limited.
