Adey MagnaClean Micro 2 Installation And Servicing Instructions

Quick-release trigger
MagnaClean Micro2 incorporates a secure, quick-release, trigger which
®
enables the filter to be removed and re-installed in seconds.
The industry leading connections are an integral part of the new MagnaClean
Micro2 design. They enable easy and speedy filter removal during annual
servicing or to undertake a MagnaCleanse system flush. This also makes it ideal for
systems where there is little room to install a filter.
The following instructions are designed to support engineers in the safe and
effective servicing of MagnaClean Micro2 using the quick-release trigger.
1 2
Turn locking pin 90˚
and remove
4 5 Replace locking pin
and turn 90˚ to lock
Replace the collets,
quick-release trigger
and canister.
FOR BEST RESULTS
Install and service with MC1+, the advanced system inhibitor from
the UK's No 1 manufacturer of magnetic filters.
3
MagnaClean

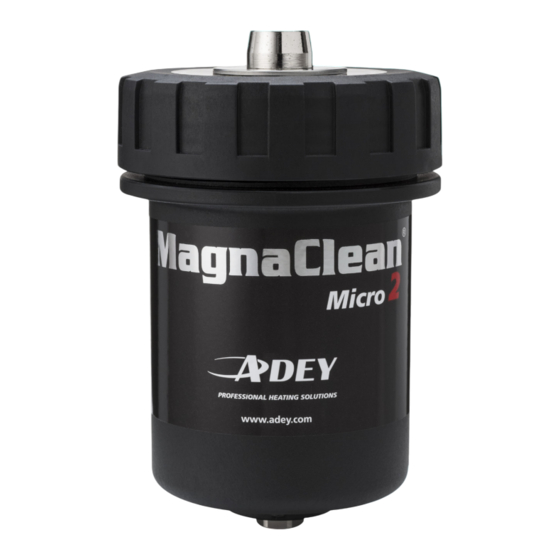

MagnaClean ® Micro2 is a proven, high efficiency, full-flow, compact magnetic and
non-magnetic filter. It is designed to protect domestic heating systems and remove
virtually 100% of suspended black iron oxide.
It delivers exceptional domestic central heating system protection against the
N.B. Periodically remove collets
damaging effects of black iron oxide sludge and non-magnetic debris in applications
and lubricate seals with water
where space is extremely limited.
The compact in-line and rapid fit filter not only helps reduce heating energy bills
and extend the operational life of the system, it also helps reduce maintenance
costs and carbon emissions.
IMPORTANT Always follow the Standard Electrical Best Practice guidelines when
installing a MagnaClean filter. A copy of these guidelines can be found at
www.hse.gov.uk/electricity
The inlet and outlet on MagnaClean Micro2 are reversible and there is no flow
restriction. Following installation, don't forget to complete the warranty card.
Alternatively, complete the registration online at www.adey.com
This product is backed by a two year limited guarantee.
Micro2
Telephone: 01242 546717 Email: info@adey.com
www.adey.com
Produced from recycled material
A carbon neutral company
Micro
Installation and servicing
instructions
Micro
