Adey MagnaClean CMX Installation And Servicing

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Nano Pumped Sidestream
Installation and servicing
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MagnaClean CMX and is the answer not in the manual?

Questions and answers

Related Manuals for Adey MagnaClean CMX

Summary of Contents for Adey MagnaClean CMX

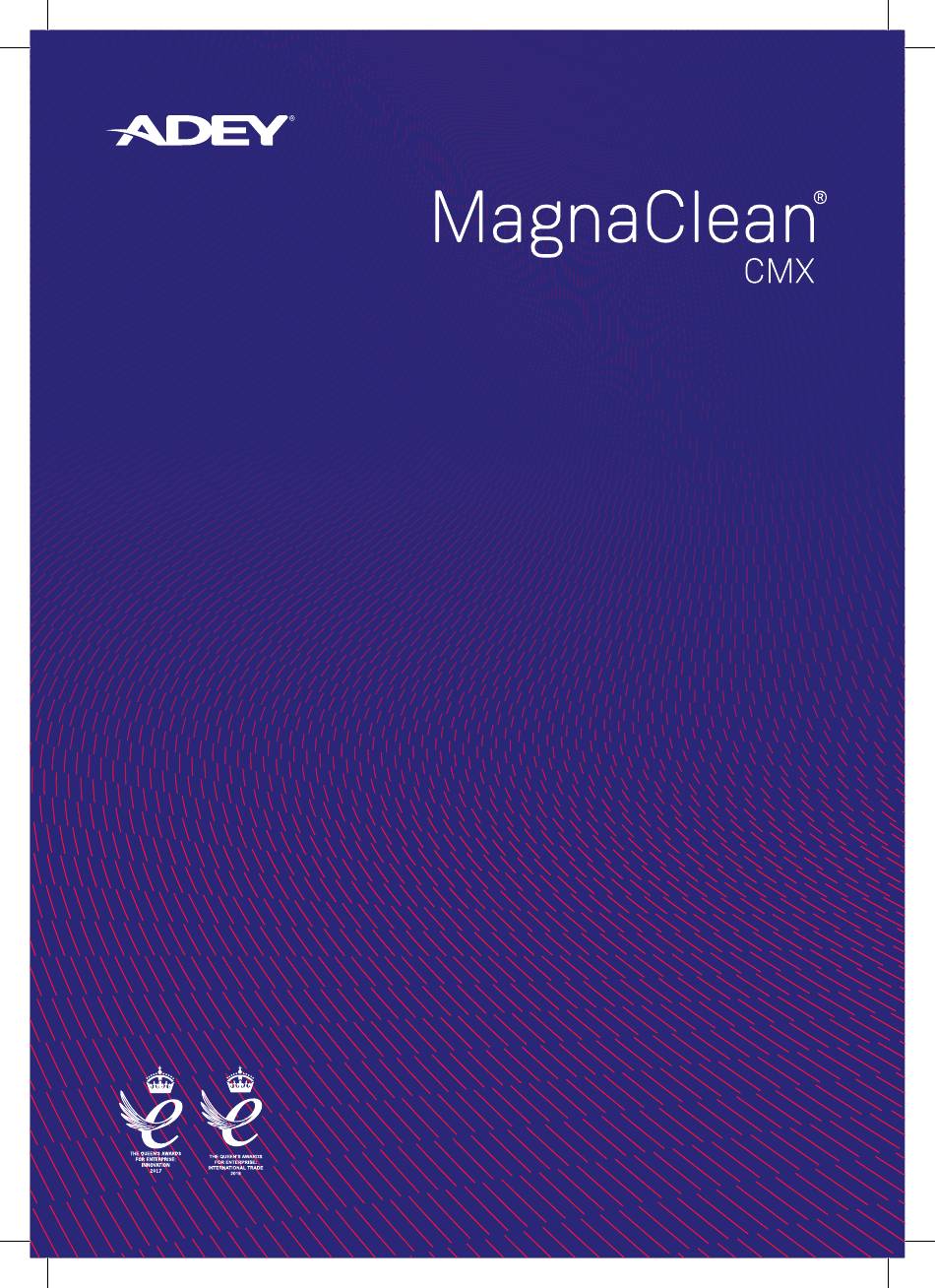

  • Page 1 Nano Pumped Sidestream Installation and servicing...

  • Page 2: Table Of Contents

    UK Declaration of Conformity Product Description Heating and chilled system sidestream fi ltration unit with integrated MagnaClean CMX Nano® fi lter and electric, motor-driven circulation pump; automated control system with BMS connectivity providing system fi ltration monitoring, pressure differential and temperature sensing.

  • Page 3: Checklist

    1. Checklist IMPORTANT: With the appliance removed from its packaging, check for any damage prior to installation. If any damage is found, please contact ADEY Customer Services on +44 (0)1242 546717 within 24 hours of receipt. Item Description...

  • Page 4: Location

    & re-installation, offering customers the flexibility to move one or more units from one location to another across multiple locations. 2. MagnaClean CMX Nano Filter & Grundfos UPM3 Flex AS 130 Pump: This pumped sidestream solution has been designed to provide complete flexibility across a plant room environment, offering high performance, sidestream filtration when space is a premium and/or where it isn’t...

  • Page 5: Unit Installation

    IMPORTANT: Whilst the MagnaClean CMX Nano fi lter attached to this unit carries a min/max temperature rating of -10⁰C to +150⁰C, when installed as an integral part of this pumped sidestream unit as it is, the MagnaClean CMX Nano fi lter min/max temperature rating is +2⁰C to +100⁰C only.

  • Page 6: Electrical Installation/Earthing

    5. Electrical Installation/Earthing Regulations: The electrical installation must be carried out in accordance with the current national electrical regulations and installed by a qualified person. Safety: In the interests of electrical safety a 30 mA residual current device (R.C.D. not supplied) should be installed in the supply circuit.
  • Page 7 If the supply cord is to be changed or is damaged, it must be replaced with a special cord assembly available from ADEY or one of their approved repairers. On disassembly note the cord retention and routing system. Re- assemble to the same pattern.

  • Page 8: Operation

    & pump activity. The controller also monitors pressure differential across the inlet and outlet of the MagnaClean CMX Nano filter via the integrated Grundfos DPS Sensor, providing warning alarms at two levels: a) A warning alarm, alerting the persons responsible for monitoring the heating or chilled system that the installed cartridge filter is beginning to block and that a service visit is advised;...

  • Page 9: Controller Programming Parameters

    7. Controller Programming Parameters PROGRAMMING MODES 1. Press ‘UP’ & ‘DOWN’, (Buttons 1 & 3) for 3 seconds to enter TIME & DATE PROGRAMMING MODE a) Press ‘UP’, (Button 1) to increase the value b) Press ‘DOWN’, (Button 3) to decrease the value c) Press ‘SET’...
  • Page 10 Parameter Description Default Range Temperature Enables/disables temperature alarm Yes/No Alarm Enable Low Temperature Low temperature alarm value 4°C 0-120°C Alarm High Temperature High temperature alarm value 90°C 0-120°C Alarm Pump Required Disables activation of pump relay. If set to NO, Current Sense (Parameter 12) will auto NO;...
  • Page 11 ADEY DEK1001 MODBUS PROTOCOL – VARIABLE LIST DEFAULT SETTINGS BAUD RATE 9600 WORD LENGTH PARITY STOP BITS X Variable Denomination Type X Variable Data Conversion Units Equivalent Range of Notes Address Format Range X Variable 40001 Cartridge Present read/write word 16 bits 4 = No 5 = Yes 4->6...
  • Page 12 X Variable Denomination Type X Variable Data Conversion Units Equivalent Range of Notes Address Format Range X Variable 40029 Last Serviced Date read word 16 bits Value = X 1-12 1-12 Month 40030 Last Serviced Date Year read word 16 bits Value = X 0-99 0-99...
  • Page 13 Warning Conditions for Trigger Scrolled Message “Auto Reset” “Action on Outputs” Pump Fail Pump Fail Current Sense Pump – OFF Parameter = Y Buzzer – ON Pump Activated LED Light – ON Current level below Common Alarm – ON 125mA Service Actual date beyond Filter Service...

  • Page 14: Filtration & Pressure Differential Monitoring

    These time-based alarms are important pressure drop across the inlet and outlet of the as ADEY always recommend that when a MagnaClean CMX Nano filter as the cartridge MagnaClean CMX filter is installed onto an filters fill-up with captured system debris.

  • Page 15: Maintenance & Servicing

    9. Maintenance – MagnaClean CMX Nano Filter The following steps should be followed when servicing the MagnaClean CMX Nano filter: 1. Turn off the power to the pumped 2. Close both isolation valves at the 3. Connect hose to the drain port and...

  • Page 16: Environment Protection

    • Before starting to work on the pump, let the pump casing cool down to ambient temperature. Spares: The MagnaClean CMX Nano Pumped Sidestream is designed and built All service work must be carried out by to be a reliable and high quality product an instructed service technician.

  • Page 17: Technical Specification

    11. Technical Specification MAGNACLEAN CMX NANO PUMPED SIDESTREAM Product codes FL1-03-05666 General Guarantee 2 years Approvals UKCA Features Filter capacity Up to 43,200 litres Mounting type Wall mount or fabricated skid Unit controller DEK1001 Modbus (RS485) Controller Construction Cabinet Powder-Coated Mild Steel...

  • Page 18: Troubleshooting Guide

    Pump is blocked with Unblock the pump and remove impurities impurities Pump is defective Replace pump - contact ADEY Customer Services PUMP RUNS AT MAX SPEED & No signal from signal cable Check cable is connected to CANNOT BE CONTROLLED pump &...
  • Page 19 Supply voltage Warning only - Control the • • too low Pump runs supply voltage Electrical error Pump stopped due Control the supply to low supply voltage voltage. Replace the • • or serious failure pump - contact ADEY Customer Services...

  • Page 20: Declaration Of Conformity

    Name: MagnaClean CMX Nano Pumped Sidestream Model: FL1-03-05666 Manufacturer: Name: ADEY Commercial Ltd Address: ADEY Commercial Ltd, Unit 2, St. Modwen Park, Stonehouse, GL10 3EZ Object of the declaration: Pumped Sidestream Filter The object of the declaration described above is in conformity...
  • Page 24 EU: ADEY Innovation SAS, 119 Bis, Rue de Colombes, 92600 Asnières sue Seine, France. Produced from recycled material A carbon neutral company All ADEY marks are trademarks of Adey Holdings (2008) Limited. Please visit adey.com/trademarks for a list of ADEY marks Copyright Adey Holdings (2008) Limited © 2021. All rights reserved.
