PACSystems™ RXi Industrial Displays User Manual
GFK-3138E
7.2
Panel Installation Steps
1.
2.

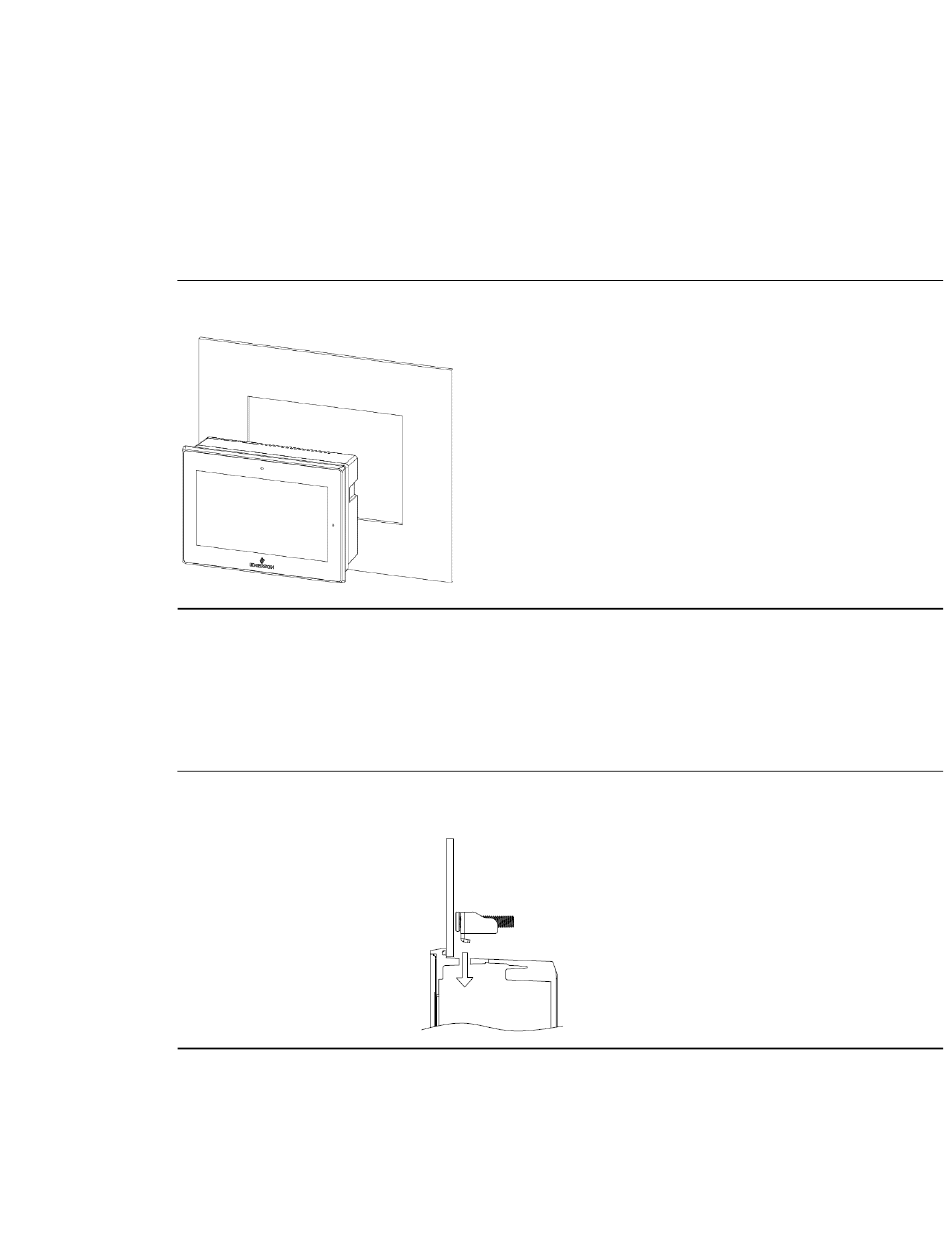

Figure 110: Panel Install View
3.
Figure 111: Mounting Bracket Insertion
Installation and Mounting Information
Verify that the gasket is present and properly seated in the bezel channel located on the
sides of the unit
Insert the unit into the mounting panel cutout
Insert the hook of the mounting bracket into the mounting hole, as displayed in the
following figure.
Section 7
Nov 2022
138
