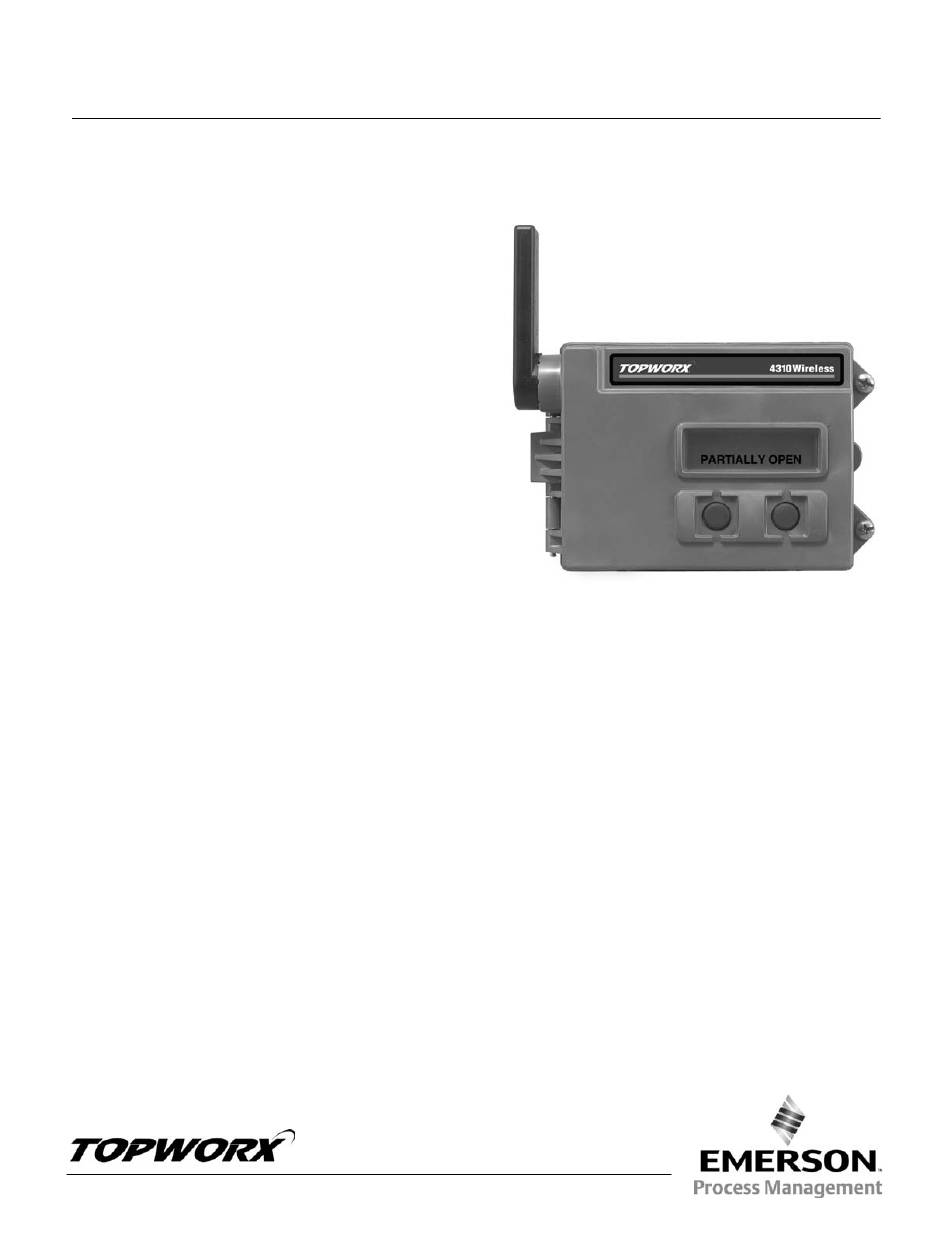

Figure 1. TopWorx 4310 Position Monitor

Introduction

Scope of Manual

This instruction manual includes specifications,
installation, initial setup, configuration, operation,
troubleshooting, and maintenance information for the
TopWorx 4310 wireless position monitor.
This manual describes using the local interface to
setup and calibrate the instrument.
Do not install, operate, or maintain a 4310 wireless
position monitor without being fully train and
qualified in valve, actuator, and accessory
installation, operation, and maintenance. To avoid
personal injury or property damage, it is important to
carefully read, understand, and follow all of the
contents of this manual, including all safety cautions
and warnings. If you have any questions regarding
these instructions, contact your Emerson Process
Management sales office before proceeding.

Advertisement

Table of Contents
loading

Summary of Contents for Emerson TopWorx 4310

  • Page 1: Table Of Contents

    Language Selection ..... Figure 1. TopWorx 4310 Position Monitor Quick Position ......
  • Page 2: Description

    2. Due to the combustible nature of the lithium content, the power module has special installation, operation, storage, and/or shipping requirements. Observe all warnings included with the power module before installing, operating, storing, or shipping. Contact your Emerson Process Management sales office if additional information is needed.
  • Page 3: Terminology

    Terminology Local Interface—All 4310 wireless position monitors Emerson Process Management come standard with a Liquid Crystal Display (LCD) Educational Services, Registration and two (2) pushbuttons. The local interface P.O.
  • Page 4: Or Ams Device Manager

    DRAFT ~ NOT FOR DISTRIBUTION ~ 24JUN09 Instruction Manual 4310 Wireless Position Monitor August 2009 D Install the 4310 on monitored equipment and/or verify the 1420 gateway. Installation OVERVIEW JOIN DEVICE WARNING TO NETWORK Before mounting the 4310 wireless position monitor: D Always wear protective clothing, Update with 4310 image gloves, and eyewear when performing...
  • Page 5: Valve / Actuator Mounting

    DRAFT ~ NOT FOR DISTRIBUTION ~ 24JUN09 Instruction Manual 4310 Wireless Position Monitor August 2009 VALID TRAVEL RANGE 25 mm (1 INCH) SHOWN CURVED ARRAY 1−INCH ARRAY ROTARY NOTE: VALID TRAVEL RANGE INDICATED BY WHITE ARROWS 2− OR 4−INCH ARRAY MAGNET ASSEMBLY (ATTACHED TO...
  • Page 6: Sliding−Stem (Linear)

    DRAFT ~ NOT FOR DISTRIBUTION ~ 24JUN09 Instruction Manual 4310 Wireless Position Monitor August 2009 MOUNTING INSERT FACES OPTIONAL FEEDBACK MOUNTING HOLES ARRAY BOLT BASE OF HOUSING (INCH) GE42127 Rev A Figure 5. Mounting—Sliding−Stem Magnet Array Sliding−Stem (Linear) Actuators (e.g. MOUNTING HOLES FOR Fisher 667) ROTARY NAMUR, M10...
  • Page 7 DRAFT ~ NOT FOR DISTRIBUTION ~ 24JUN09 Instruction Manual 4310 Wireless Position Monitor August 2009 MOUNTING INSERT FACES MAGNET ASSEMBLY BASE OF HOUSING ROTARY MOUNTING BRACKET (INCH) GE42123 Rev A W9637 Figure 7. For Rotary Actuators (Typical Mounting Bracket) Figure 8. Mounting—Rotary Magnet Array ORIENTATION AT ONE TRAVEL EXTREME...
  • Page 8: Communications Connections

    DRAFT ~ NOT FOR DISTRIBUTION ~ 24JUN09 Instruction Manual 4310 Wireless Position Monitor August 2009 POWER MODULE LIFE VERSUS UPDATE RATE UPDATE RATE AND NETWORK SIZE STANDARD EXTENDED UPDATED RATE (SECONDS) UPDATE RATE NOTE: FOUR CHILDREN ARE ASSUMED WITH THE SAME UPDATE RATE AND A CONSTANT TEMPERATURE OF 25_C (77_F).
  • Page 9: Basic Setup

    DRAFT ~ NOT FOR DISTRIBUTION ~ 24JUN09 Instruction Manual 4310 Wireless Position Monitor August 2009 SLEEP QUICK POSITION STATUS LOGO LANGUAGE right left squawk both left right right Setup Network Power Calibrate right left right left left right left Voltage Handheld Network ID Exit...
  • Page 10: Language Selection

    The number the sleep state. The buttons can be pressed alone or of devices operating through this simultaneously. The Emerson logo will display when device to the gateway and their update the LCD is activated from a HART “squawk”...
  • Page 11: Calibration

    DRAFT ~ NOT FOR DISTRIBUTION ~ 24JUN09 Instruction Manual 4310 Wireless Position Monitor August 2009 The top reading indicates % of SPAN, the state of Applying calibration points without the valve (OPEN, PARTIALLY OPEN, or CLOSED) changing the valve position will result is on the bottom line.
  • Page 12: 375 Field Communicator

    DRAFT ~ NOT FOR DISTRIBUTION ~ 24JUN09 Instruction Manual 4310 Wireless Position Monitor August 2009 Field Communicator 1 Offline 2 Online 3 Frequency Device Overview Device Information 4 Utility 1 Switch Status 1 Manufacturer 2 Time Since Reset 2 Model 3 Wireless Mode Online 3 HART Universal Rev.
  • Page 13: Configure

    DRAFT ~ NOT FOR DISTRIBUTION ~ 24JUN09 Instruction Manual 4310 Wireless Position Monitor August 2009 Device Identification 2-1-1 1 HART Tag Field Communicator 2 HART Long Tag 1 Offline Manual Setup 3 Descriptor 2 Online 1 Device Identification 4 Message 2-1-2 Wireless 3 Frequency Device...
  • Page 14 DRAFT ~ NOT FOR DISTRIBUTION ~ 24JUN09 Instruction Manual 4310 Wireless Position Monitor August 2009 Descriptor—Enter a descriptor for the application Trigger Status, and Temperature (outside of the with up to 16 characters. The descriptor provides a instrument). longer user−defined electronic label to assist with more specific instrument identification than is Command 48 returns status about the available with the HART tag.
  • Page 15: Service Tools

    DRAFT ~ NOT FOR DISTRIBUTION ~ 24JUN09 Instruction Manual 4310 Wireless Position Monitor August 2009 Field Communicator 1 Offline 2 Online 3 Frequency Device Variables 4 Utility 1 Switch Status 2 Electronics Temp 3 Power Module Volt... 4 Accumulated Cycles 5 Time Since Reset Online 1 Overview...
  • Page 16: Accessing Features

    DRAFT ~ NOT FOR DISTRIBUTION ~ 24JUN09 Instruction Manual 4310 Wireless Position Monitor August 2009 WIRELESS TAB TRIGGER POINTS TAB CHANGE UPDATE PERIOD MANUAL MANUAL SETUP SETUP CHANGE TRIGGER PTS CONFIGURE CONFIGURE Update with 4310 image Update with 4310 image Figure 19.
  • Page 17: Principle Of Operation

    DRAFT ~ NOT FOR DISTRIBUTION ~ 24JUN09 Instruction Manual 4310 Wireless Position Monitor August 2009 VARIABLES TAB ENTER ALERT TRIGGER VALUE RESET CYCLE COUNTER VARIABLES ALERT POWER SETUP MODULE VOLTAGE CONFIGURE APPLY SERVICE TOOLS Update with 4310 image Update with 4310 image Figure 21.
  • Page 18: Maintenance

    SCREWS PROVIDE MECHANICAL CONNECTION TO TERMINAL HOUSING (4 TOTAL) W9606 POWER MODULES Figure 22. TopWorx 4310 Wireless Position Monitor Maintenance CAUTION When replacing any of the components of the 4310 wireless position monitor the maintenance should be When replacing components, use only performed in an instrument shop whenever possible.
  • Page 19: Replacing The Instrument

    Replacing the Power Module Note When replacing the instrument, be sure to follow the appropriate mounting procedure. Once the Contact your Emerson Process instrument is mounted, perform the calibration Management sales office if a routine before putting back in to service.
  • Page 20: Removal

    TopWorx and Fisher marks owned by one of the companies in the Emerson Process Management business division of Emerson Electric Co. Emerson Process Management, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. WirelessHART and HART are marks owned by the HART Communication Foundation.
