PACSystems™ RXi Industrial Displays User Manual
GFK-3138E
Socket Description
Connecting Input Power (24V DC-in)
To connect to power, follow these steps:
1. Verify that the power cable is not energized.
2. Loosen the screw clamps on the mating power
connector.
3. Strip the insulation from the power cables.
4. Secure the power cable to the mating connector, noting polarity, and tighten the screw
clamps. The torque for the attaching screws is 0.3 Nm (2.26 in-lb).
5. Apply dc power to the unit. During normal startup and operation, the LED status indicator
displays as follows:
6. Once power is applied, the unit begins initializing. The first thing to display is the splash
screen.
Be sure to connect a DC power cord to this 3-pin power connector. Using a voltage out of the
range may fail to boot the system or cause damage to the system board.
Before connecting the Web Panel to other devices, please read this manual carefully to
•
prevent Motherboard damage.

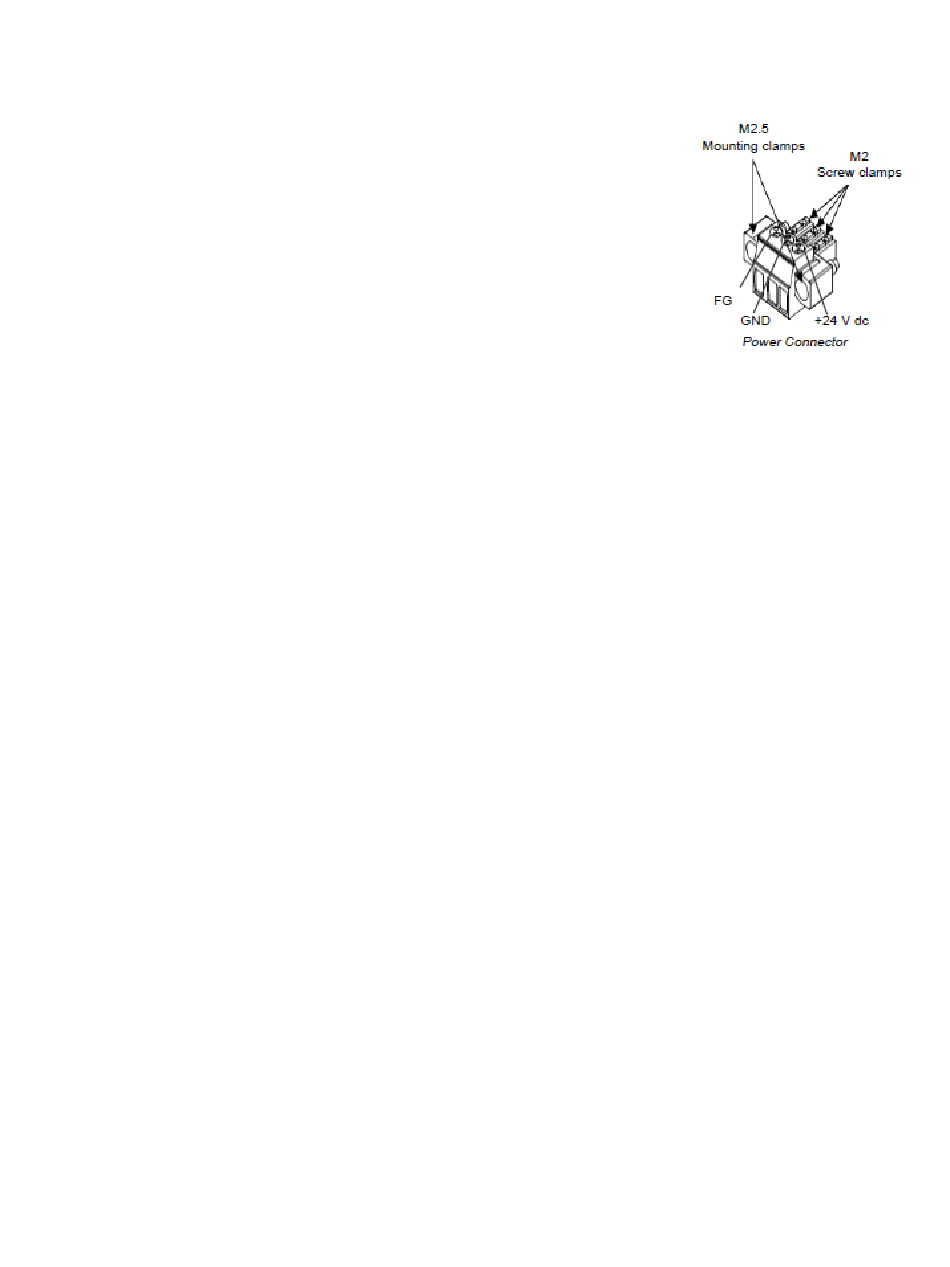

Power Socket (DC_IN1)
•
DC_IN1: (Conn. Header Socket, 3.5mm, 1 x 3PIN), used to provide 24V voltage for the
•
system.
Hardware
Solid amber while the RXi - Industrial Display unit is starting up
•
Solid green during normal operation
•
