User Guide
MHM-97927-PBF, Rev 1
August 2020

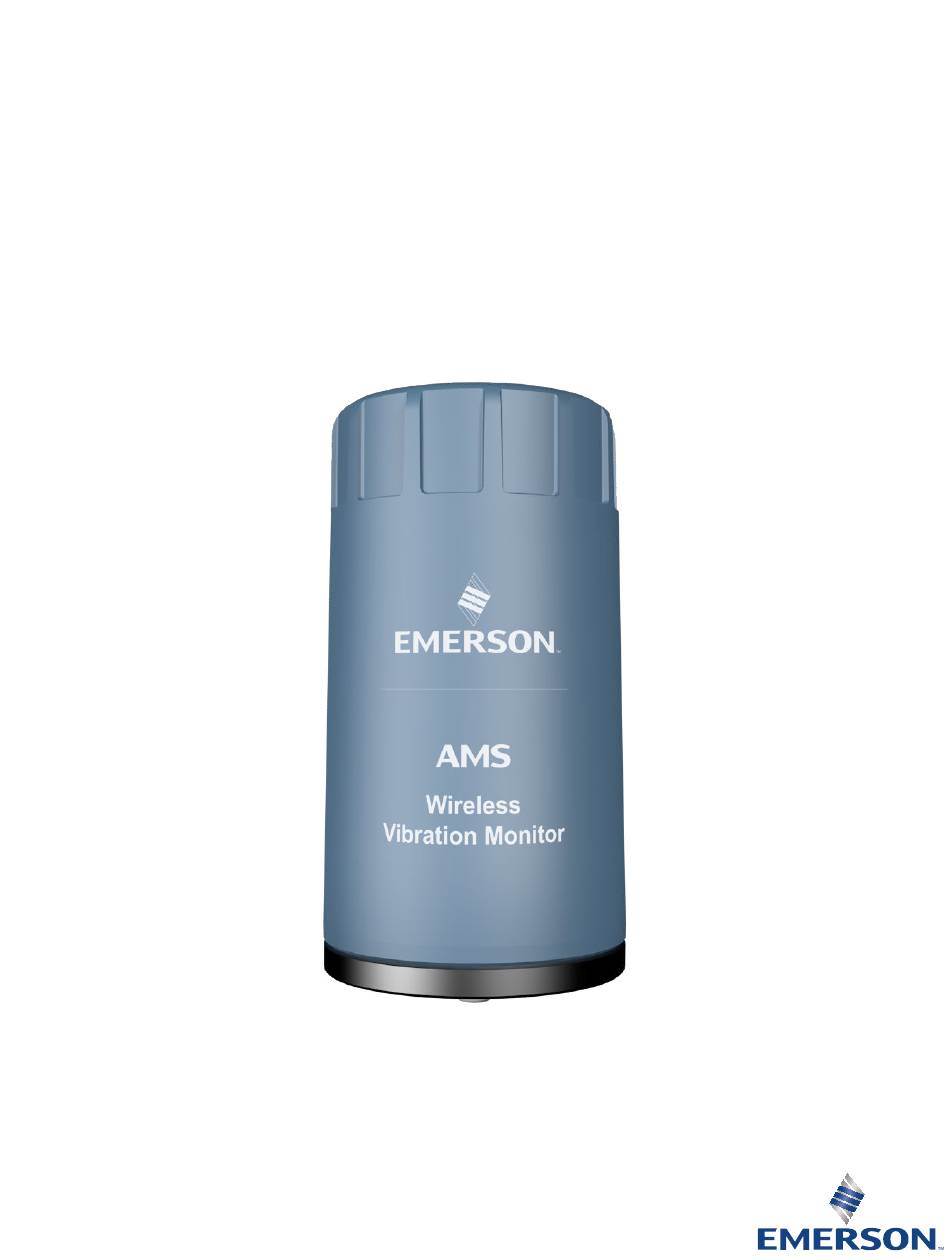

AMS Wireless Vibration Monitor
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Emerson AMS Wireless Vibration Monitor

Summary of Contents for Emerson AMS Wireless Vibration Monitor

  • Page 1 User Guide MHM-97927-PBF, Rev 1 August 2020 AMS Wireless Vibration Monitor User Guide...
  • Page 2 Information in this document is subject to change without notice and does not represent a commitment on the part of Emerson. The information in this manual is not all-inclusive and cannot cover all unique situations.

  • Page 3: Table Of Contents

    3.5 Change the battery.........................49 Chapter 4 Operation........................51 4.1 Verify the device is operational....................... 51 4.2 Verify operation with Emerson Wireless Gateway................51 4.3 Verify operation with AMS Trex Communicator................52 4.4 Check device status........................53 4.5 Device variable ranges........................54 4.6 Device operating limits........................54...
  • Page 4 Contents User Guide August 2020 MHM-97927-PBF A.4 Radio specifications........................67 A.5 Device variable alert limits......................67 Appendix B Product certifications....................73 B.1 Approved manufacturing locations....................73 B.2 Wireless certifications........................73 B.3 Ordinary location certification (CSA)....................75 B.4 CE mark............................75 B.5 Hazardous locations certifications....................77 B.6 Waste Electrical and Electronic Equipment..................

  • Page 5: Chapter 1 Introduction

    Instructions in this manual may require special precautions to ensure the safety of the personnel performing the operations. The AMS Wireless Vibration Monitor complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: This device may not cause harmful interference, this device must accept any interference received, including interference that may cause undesired operation.
  • Page 6 Introduction User Guide August 2020 MHM-97927-PBF Regulatory Compliance Mark Australia China Restriction of Hazardous Substances (RoHS) Lithium-ion cell recyclable The documentation must be completely read and understood before installing and commissioning the device. Observe all safety-related instructions in this document. Waste Electronic and Electrical Equipment Directive MHM-97927-PBF, Rev 1...

  • Page 7: Considerations

    Return of materials You may need to ship the device to an Emerson Product Service Center for return or replacement in case of warranty issues. Before shipping, contact Emerson Product Support to obtain a Return Materials Authorization (RMA) number and receive additional instructions.
  • Page 8 Introduction User Guide August 2020 MHM-97927-PBF Note If the monitor has been exposed to hazardous substances, a Material Safety Data Sheet (MSDS) must be included with the returned materials. An MSDS is required by law to be available to people exposed to specific hazardous substances. Shipping considerations for wireless products (Lithium Batteries) •...

  • Page 9: Overview

    MHM-97927-PBF August 2020 Overview The manual This User Guide applies to the AMS Wireless Vibration Monitor, a triaxial vibration measurement device designed for use on a WirelessHART network. Use this manual to install, operate, and maintain the device. The monitor The AMS Wireless Vibration Monitor is an installation-ready solution that monitors vibration and temperature in rotating equipment in hard-to-reach locations.
  • Page 10 Introduction User Guide August 2020 MHM-97927-PBF Parts of the monitor A. Chassis B. HART Terminals C. Orientation hole D. Mounting screw MHM-97927-PBF, Rev 1...
  • Page 11 User Guide Introduction MHM-97927-PBF August 2020 A. Cover B. Battery clamp C. Battery D. Battery pull tab E. Base O-ring MHM-97927-PBF, Rev 1...
  • Page 12 Introduction User Guide August 2020 MHM-97927-PBF Device revision information Revision Current level Description Universal This is the HART version the monitor supports. Field device This is the major revision of the monitor and corresponds with a major interface release. When using AMS Device Manager, this revision can be found on the screen title.

  • Page 13: Device Variables

    User Guide Introduction MHM-97927-PBF August 2020 Device variables The device supports the following measurements. Device Device variables variable index Z-Velocity Z-Peakvue Machine Temperature Supply Voltage X-Velocity (Triax Mode license required) Y-Velocity (Triax Mode license required) IB1 (Velocity) (Advanced Diagnostics license required) IB2 (Velocity) (Advanced Diagnostics license required) IB3 (Acceleration) (Advanced Diagnostics license required) IB4 (Accleration) (Advanced Diagnostics license required)

  • Page 14: Variable Mappings

    Introduction User Guide August 2020 MHM-97927-PBF Variable mappings Any of the device variables can be configured as a process variable. The process variables and their default values are as follows. Table 1-1: Process Variables Process Variable Default Z-axis Overall X-axis Overall Y-axis Overall Z-axis PeakVue Table 1-2: Device Variables...

  • Page 15: Chapter 2 Configuration

    August 2020 Configuration Setup overview Unless the AMS Wireless Vibration Monitor is purchased pre-configured from the factory, it needs to be configured prior to installation at the facility or measurement location. There are three possible setups to configure the device: 1.

  • Page 16: Pre-Configuration

    This setup is recommended for standard device configuration. Pre-configuration The AMS Wireless Vibration Monitor is shipped with the battery disconnected from the device to comply with safety requirements. You need to connect the battery before you can configure the device. Remove the battery after configuration to avoid depleting it.

  • Page 17: Configuration Overview

    User Guide Configuration MHM-97927-PBF August 2020 4. Replace the battery. Tuck the wires against the battery and lock them into place. 5. Mount the cover and then tighten it. Note To avoid depleting the battery, disconnect it when the device is not in use. If you have configured the device and network but are not ready to commission it, remove the battery to extend its operating life.
  • Page 18 Configuration User Guide August 2020 MHM-97927-PBF Procedure 1. Connect to a computer or field communicator. You need to connect to a wired connection to set the wireless credentials. For more information, see Connect to a wired HART interface. 2. Set the wireless network credentials (Network ID and Join Key) using wired connection.
  • Page 19 Press Send to send configuration changes to the monitor. 2.3.2 Set the wireless network configuration This enables the monitor to communicate with the Emerson Wireless Gateway and with other systems. This is the wireless equivalent of connecting wires from a transmitter to a control system input.

  • Page 20: Configuration With Ams Device Manager

    WirelessHART devices. Procedure 1. In AMS Device Manager, right-click AMS Wireless Vibration Monitor and then select Methods → Join Network. 2. Enter the network ID for the wireless network in the Join Device to Network screen and click Next.
  • Page 21 Tools menus, as well as to other context menus available for the device. In the Device Explorer view, select the wireless network where the transmitter is connected and right-click the transmitter to display the context menus. Figure 2-1: AMS Wireless Vibration Monitor Main Navigation MHM-97927-PBF, Rev 1...
  • Page 22 Configuration User Guide August 2020 MHM-97927-PBF 2.4.3 Overview menu The Overview menu provides a glimpse of the status of the AMS Wireless Vibration Monitor, including the status of the connection to the wireless network, and a summary of the primary variables, machine temperature, battery voltage, and update rate. From this menu, you can access the Configure menu and the Service Tools.
  • Page 23 User Guide Configuration MHM-97927-PBF August 2020 2.4.4 Configure menu Use this menu to configure sensors, variable mappings, units and alert limits. There are two options to configure the device It is advisable to use Guided Setup. Important To be able to edit configuration settings, select Current in the Time drop-down menu at the bottom of the screen.
  • Page 24 Configuration User Guide August 2020 MHM-97927-PBF Manual setup In this option, you have to define the settings in several tabs as shown below. Wireless tab Click Join Device to Network to enter network identifiers and join keys that will enable the monitor to join a wireless network.
  • Page 25 User Guide Configuration MHM-97927-PBF August 2020 Machine tab Click Configure Acquisiton Settings to configure the parameters for the specific sensor. Click Refresh Acquisition Time to reset the parameters to default values. MHM-97927-PBF, Rev 1...
  • Page 26 Configuration User Guide August 2020 MHM-97927-PBF Z Axis tab Click Configure Acquisiton Settings to configure the parameters for the specific sensor. Click Refresh Acquisition Time to reset the parameters to default values. When configured with speed (which requires the Advanced Diagnostics License), the optimal and minimum values are displayed.
  • Page 27 User Guide Configuration MHM-97927-PBF August 2020 X-Y Axis tab Click Configure Acquisiton Settings to configure the parameters for the specific sensor. Click Refresh Acquisition Time to reset the parameters to default values. When configured with speed (which requires the Advanced Diagnostics License), the optimal and minimum values are displayed.
  • Page 28 Configuration User Guide August 2020 MHM-97927-PBF Interval Bands tab This tab shows the measurement ranges for the Z PeakVue, Z Velocity, and X-Y Velocity and effectively bound FMin and FMax for the selected source. The device enforces these ranges and forces them to the bounded values. This was designed to never allow bad configuration.
  • Page 29 User Guide Configuration MHM-97927-PBF August 2020 General tab Write Protect—Allow or block an application from modifying the device parameters. SW Configuration—Allow or block software applications to modify the device parameters. Configure Device Variable Units—Specify the units of measurement for acceleration, velocity, and temperature.
  • Page 30 Configuration User Guide August 2020 MHM-97927-PBF Mapping tab Use this menu to set the PV, SV, TV, and QV. MHM-97927-PBF, Rev 1...
  • Page 31 User Guide Configuration MHM-97927-PBF August 2020 Device Information tab This window shows relevant device information such as the serial number, device identifier, and revision numbers. Identification—displays the device tag, long tag, device type, serial number, device identifier, date, and device description. Revision Numbers—displays the universal, field device, software, hardware, and DD revision numbers.
  • Page 32 Configuration User Guide August 2020 MHM-97927-PBF License tab Change License—This option lets you upgrade the device license. Downgrading is not allowed. When the device is fully licensed, this option is not visible to the user. Installed Features The device has 2 license options. Triax Mode and Advanced Diagnostic. •...
  • Page 33 User Guide Configuration MHM-97927-PBF August 2020 Alert setup Use this menu to configure the alert limits of the device variables. Each tab lets you configure the units of each variable or set it back to the default values. All alerts are configured from highest value to lowest value.
  • Page 34 Configuration User Guide August 2020 MHM-97927-PBF 2.4.5 Service Tools Alerts This menu displays alert conditions. These include hardware and software malfunctions or parameters with values beyond specifications. Only active alerts are visible. MHM-97927-PBF, Rev 1...
  • Page 35 User Guide Configuration MHM-97927-PBF August 2020 Variables This tab lets you see the graphical gauge for each device variable. Click Mapped Variables to display graphical gauges of the PV, SV, TV, and QV. Click the tabs for each parameter to view graphical gauges for each of the parameters. MHM-97927-PBF, Rev 1...
  • Page 36 Configuration User Guide August 2020 MHM-97927-PBF Spectra This tab allows you to retrieve spectral data from the device. It is only visible if the Advanced Diagnostics license is enabled Communications tab MHM-97927-PBF, Rev 1...

  • Page 37: Configure With Trex Communicator

    A Rev 1 DD is required when using a field communicator to configure the AMS Wireless Vibration Monitor. Refer to the Field Communicator User’s Manual for more details on DDs or go to https://www.emerson.com/en-us/catalog/ams-trex-device-communicator instructions on adding a DD for AMS Wireless Vibration Monitor. MHM-97927-PBF, Rev 1...

  • Page 38: Configuration Options

    Configuration User Guide August 2020 MHM-97927-PBF Configuration options 2.6.1 Measurement parameter units The table below shows the measurement parameters and units that can be configured for each parameter. Table 2-1: Measurement parameter units Parameter Units Acceleration Velocity mm/s in/s °C Temperature °F Speed...
  • Page 39 User Guide Configuration MHM-97927-PBF August 2020 Table 2-2: Configuration Values (continued) Configuration option Default value X_YFMAX 1000 Hz Z LOR 1600 lines Z FMIN 1000 Hz Z FMAX 1000 Hz Z Peakvue LOR Z velocity spectrum Z Peakvue HP Filter Z Peakvue FMAX Velocity Band 1 Source Z velocity spectrum...
  • Page 40 2-3 months. 2.6.5 Alert levels The AMS Wireless Vibration Monitor sets HART status bits to indicate when measured values exceed the configured thresholds. Measured values have six levels: Saturated, Sensor, Range, Advisory, Maintenance, and Failed.
  • Page 41 The settings in the gateway and the host must be consistent and entered in both locations (for example, Modbus register definitions). Also, with AMS Machine Works and AMS Wireless Vibration Monitor devices (that are licensed for the Advanced Diagnostics application), you can trend Energy Band parameters and collect spectrum and waveform information.
  • Page 42 Configuration User Guide August 2020 MHM-97927-PBF MHM-97927-PBF, Rev 1...

  • Page 43: Chapter 3 Installation

    You can purchase the spot face tool from Emerson (MHM P/N 88101), or you can substitute a spot face tool with similar characteristics as required. Contact your local sales representative for assistance.

  • Page 44: Mounting Mechanisms

    Installation User Guide August 2020 MHM-97927-PBF Figure 3-1: Spot face or end mill tool Attachment tools and supplies • 1/4-28" taps and tap handle • 9/16" open-end wrench • 1/8" hex Allen key • 3/16" ball-end hex wrench • Wire brush •...
  • Page 45 User Guide Installation MHM-97927-PBF August 2020 • Epoxy mounting (alternative) • Triaxial quick connection • Motor fin mounting • Temporary mounting 3.3.1 Stud mounting (preferred) Prerequisites The mounting location must provide a flat surface of at least 1.1 in (27.94mm) in diameter and a case thickness exceeding 0.4 in.
  • Page 46 2. Using a wire brush and plant-approved cleaner, clean and degrease the surface area. 3. Using a two-part epoxy (such as Emerson P/N A92106)), spray the activator onto the mounting surface. Place a light coat of epoxy on the surface of the mounting pad and hold firmly against the machine spot face surface for one minute.
  • Page 47 User Guide Installation MHM-97927-PBF August 2020 5. Place the motor fin mount probe/pad between the motor fins at the location desired. • Correct motor fin mount selection is important. The probe must fit in between the motor fins, and the bottom of the probe must contact the motor casing. •...

  • Page 48: Mount The Device

    Installation User Guide August 2020 MHM-97927-PBF Mount the device Prerequisites Prepare the surface according to your mounting method. The mounting location is the machine surface when using stud mount and the mounting pad when using epoxy mount. The mounting location should be prepared according to best practices. Procedure 1.

  • Page 49: Change The Battery

    User Guide Installation MHM-97927-PBF August 2020 measurements, a good quality silicon grease (Dow #4) should be used as a coupling agent on the mounting ring on the bottom of the device. Only a small amount is needed. 7. Insert and connect the battery. 8.
  • Page 50 Installation User Guide August 2020 MHM-97927-PBF MHM-97927-PBF, Rev 1...

  • Page 51: Chapter 4 Operation

    A red indicator means there is a problem with either the device or its communication path. Note It is normal for the AMS Wireless Vibration Monitor to have a red “X”, on the screen until the sensor is installed and configured. Figure 4-1: Emerson Wireless Gateway Devices page...

  • Page 52: Verify Operation With Ams Trex Communicator

    2. On the Devices page, click + beside a tag name to display more information about the device. 3. Verify the Network ID and Join Key in the device match those found on the Emerson Wireless Gateway: a. From the Emerson Wireless Gateway, click System Settings → Network →...

  • Page 53: Check Device Status

    User Guide Operation MHM-97927-PBF August 2020 Table 4-1: Field Communicator menu (continued) Menu Submenu Alert Setup Z Axis X-Y Axis Temperature Battery IB1-2 (Velocity) IB3-4 (Accel) Machine Conditions (PVP) Note Disconnect the leads when you are finished configuring or troubleshooting. The AMS Wireless Vibration Monitor does not publish any new vibration data to the gateway while connected to an AMS Trex Device Communicator or HART modem.

  • Page 54: Device Variable Ranges

    Operation User Guide August 2020 MHM-97927-PBF Device variable ranges The device variables have the following ranges: 1. Saturated – Indicates the saturation point of the transducer. In this device, this level is not settable by the end user. When this range is violated, the device variable status is Bad.

  • Page 55: Overall Velocity, Peakvue, And Temperature

    The AMS Wireless Vibration Monitor uses (lower-frequency) Overall Velocity in conjunction with (higher-frequency) PeakVue to provide a holistic solution across all frequencies while optimizing the usage of the limited power and bandwidth available in a wireless device.
  • Page 56 Velocity, so ensure that the measurement conditions are similar when trying to duplicate the value reported by the AMS Wireless Vibration Monitor with a handheld. The AMS Wireless Vibration Monitor uses ISO 10816, which defines a measurement bandwidth of 2 Hz to 1 kHz.
  • Page 57 For this reason, the AMS Wireless Vibration Monitor measures, calculates, and reports Overall Velocity in RMS, and it is necessary to multiply by 1.4142 to get the corresponding peak levels if this is the preferred format.

  • Page 58: Peakvue

    1.0 in/s PeakVue ™ PeakVue is a patented Emerson technology that is very useful for isolating high- frequency phenomena associated with developing faults, especially in rolling-element bearings. The premise for PeakVue is that the high-frequency components are not readily detected with more conventional measurements such as Overall Velocity, low-frequency energy (LFE), or digital overall.
  • Page 59 For frequent automated monitoring, such as that offered by the AMS Wireless Vibration Monitor, the levels can be increased for most balance of plant equipment running between 900 and 4000 RPM. You can use the "rule of tens" as a simple but effective approach to monitoring PeakVue on most rolling element bearing machines.
  • Page 60 Overall Velocity, PeakVue, and temperature User Guide August 2020 MHM-97927-PBF Figure 5-5: Example 1: 4600 HP fan motor - OH (Overall) Figure 5-6: Example 2: 4600 fan motor - OH (PeakVue) The defective bearing was removed and Figure 5-7 shows the developing problem that was the source of the impacting.
  • Page 61 User Guide Overall Velocity, PeakVue, and temperature MHM-97927-PBF August 2020 Figure 5-7: Defective bearing MHM-97927-PBF, Rev 1...

  • Page 62: Temperature

    Overall Velocity, PeakVue, and temperature User Guide August 2020 MHM-97927-PBF Figure 5-8: Motor - OH after the bearing is replaced (PeakVue) Temperature The levels at which to set temperature alerts depend on a number of factors including the specific process, the operating environment, and the characteristics of the equipment being monitored.
  • Page 63 User Guide Overall Velocity, PeakVue, and temperature MHM-97927-PBF August 2020 5.3.1 Relative temperature monitoring The recommended generic guidelines for setting the thresholds based on the relative change are: = 10°C increase Advise = 15°C increase Maintenance = 20°C increase Failed Assuming that the ambient temperature is 25°C, when operating at steady-state, you have determined that the normal temperature at this point on your equipment is 55°C.
  • Page 64 Overall Velocity, PeakVue, and temperature User Guide August 2020 MHM-97927-PBF • 5 for service factor of 1.15 or greater • -5 for either open or totally enclosed fan cooled (TEFC) motors, and service factor of • 0 for either totally enclosed non-ventilated (TENV) motors or motors with encapsulated windings, and service factor of 1.0 If elevation >...

  • Page 65: Appendix A Specifications And Reference Data

    User Guide Specifications and reference data MHM-97927-PBF August 2020 Specifications and reference data Functional specifications Input Three internal MEMS accelometers oriented in the X-Y-Z direction. The Z accelometer has the greatest bandwidth and is considered the primary sensor. The device also has a temperature sensor designed to read the temperature near the mounting point.

  • Page 66: Physical Specifications

    Specifications and reference data User Guide August 2020 MHM-97927-PBF Physical specifications Battery Table A-1: Tadiran Lithium Batteries Model TL-4920/VE Nominal capacity @ 3 mA, to 2 V 8.5 Ah Rated voltage 3.6 V Maximum recommended continuous current 75 mA Maximum 1 sec. pulse capability 200 mA Weight 49.5 g (1.746 oz)

  • Page 67: Radio Specifications

    User Guide Specifications and reference data MHM-97927-PBF August 2020 Radio specifications Parameter Value Frequency Band 2.4GHz - 2.4835GHz Output Power +8dBm Receiver Sensitivity -93dBm Range 100m (outdoor +25 C, 50% RH) Device variable alert limits This table shows the alert limits of the device variables. Table A-3: X Overall Axis Severity...
  • Page 68 Specifications and reference data User Guide August 2020 MHM-97927-PBF Table A-5: Z Overall (continued) Axis Severity Upper Limit Lower Limit Units Notes Z Overall Sensor in/s Read-only Z Overall Range in/s Can be set by the user up to the sensor range Z Overall Fail...
  • Page 69 User Guide Specifications and reference data MHM-97927-PBF August 2020 Table A-8: IB2 Velocity Axis Severity Upper Limit Lower Limit Units Notes IB2 Velocity Saturated in/s Read-only IB2 Velocity Sensor in/s Read-only IB2 Velocity Range in/s Can be set by the user up to the sensor range IB2 Velocity...
  • Page 70 Specifications and reference data User Guide August 2020 MHM-97927-PBF Table A-11: Machine Temperature (continued) Axis Severity Upper Limit Lower Limit Units Notes Machine Sensor °C Read-only Temperature Machine Range °C Can be set by Temperature the user up to the sensor range Machine Temp Fail °C...
  • Page 71 User Guide Specifications and reference data MHM-97927-PBF August 2020 Table A-13: Speed (continued) Axis Severity Upper Limit Lower Limit Units Notes Speed Fail Not Applicable Not Applicable rpm Limits calculated by device and not user settable. Speed Maint Not Applicable Not Applicable rpm Limits calculated by device and not...
  • Page 72 Specifications and reference data User Guide August 2020 MHM-97927-PBF Table A-15: Lubrication Condition Axis Severity Upper Limit Lower Limit Units Notes Lubrication Saturated 1000 None Limits Condition constant in the device and not user-settable. Lubrication Sensor 1000 None Limits Condition constant in the device and not user-settable.

  • Page 73: Appendix B Product Certifications

    RF spectrum. Nearly every country requires this type of product certification. Emerson works with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage.
  • Page 74 Product certifications User Guide August 2020 MHM-97927-PBF • Consult the dealer or an experienced radio/TV technician for help. • This device must be installed to ensure a minimum antenna separation distance of 20cm from all persons. CAUTION Changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

  • Page 75: Ordinary Location Certification (Csa)

    Note The table above does not include all countries for which certificates have been issued. For a complete list, please contact you local Emerson Sales Representative. Ordinary location certification (CSA) As standard, the transmitter has been examined and tested to determine that the design...
  • Page 76 Product certifications User Guide August 2020 MHM-97927-PBF Country Restriction Bulgaria General authorization required for outdoor use and public service. Italy If used outside of own premises, general authorization is required. Norway May be restricted in the geographical area within a radius of 10 km from the center of Ny-Alesund.

  • Page 77: Hazardous Locations Certifications

    August 2020 Hazardous locations certifications Model No:: A9530 Product Name: Wireless Vibration Monitor The AMS Wireless Vibration Monitor carries certificates for operation in hazardous locations. Table B-2: Hazardous locations certifications CSA C/US Certificate Class I Division 1 Groups A, B, C, D...
  • Page 78 Conditions d'utilisation sûre: 1. Ne doit être alimenté que par une cellule primaire au lithium de taille C de type TL-4920/VE fabriquée par Tadiran ou Emerson Part Number A0702PPU. 2. Paramètres d'entité de terminal HART: Uo = 5.84 V, Io = 116 mA, Po = 169 mW, Co = 0.1 µF, Lo = 5 mH;...

  • Page 79: Waste Electrical And Electronic Equipment

    User Guide Product certifications MHM-97927-PBF August 2020 North America: CAN/CSA C22.2 No. 61010-1-12 UL Std. No. 61010-1 3rd Ed. CAN/CSA C22.2 No. 60079-0 7th Ed.: 2019 UL 60079-0 7th Ed.: 2019 CAN/CSA C22.2 No. 60079-11 6th Ed.: 2014 UL 60079-11: 6th Ed.: 2013 CAN/CSA-C22.2 No.
  • Page 80 Product certifications User Guide August 2020 MHM-97927-PBF MHM-97927-PBF, Rev 1...

  • Page 81: Appendix C Third-Party Licenses

    User Guide Third-party licenses MHM-97927-PBF August 2020 Third-party licenses Dust SmartMeshSDK C Library Copyright (c) 2012, Dust Networks All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: •...
  • Page 82 Third-party licenses User Guide August 2020 MHM-97927-PBF MHM-97927-PBF, Rev 1...
