Figure 105: Power Socket (DN-IN1)
6.3.2

USB Socket (USB_OTG1/USB1)

USB_OTG1: Conn. Mini-USB, B-Type Female, SMD-5P With DIP 4pin, used to load system
firmware

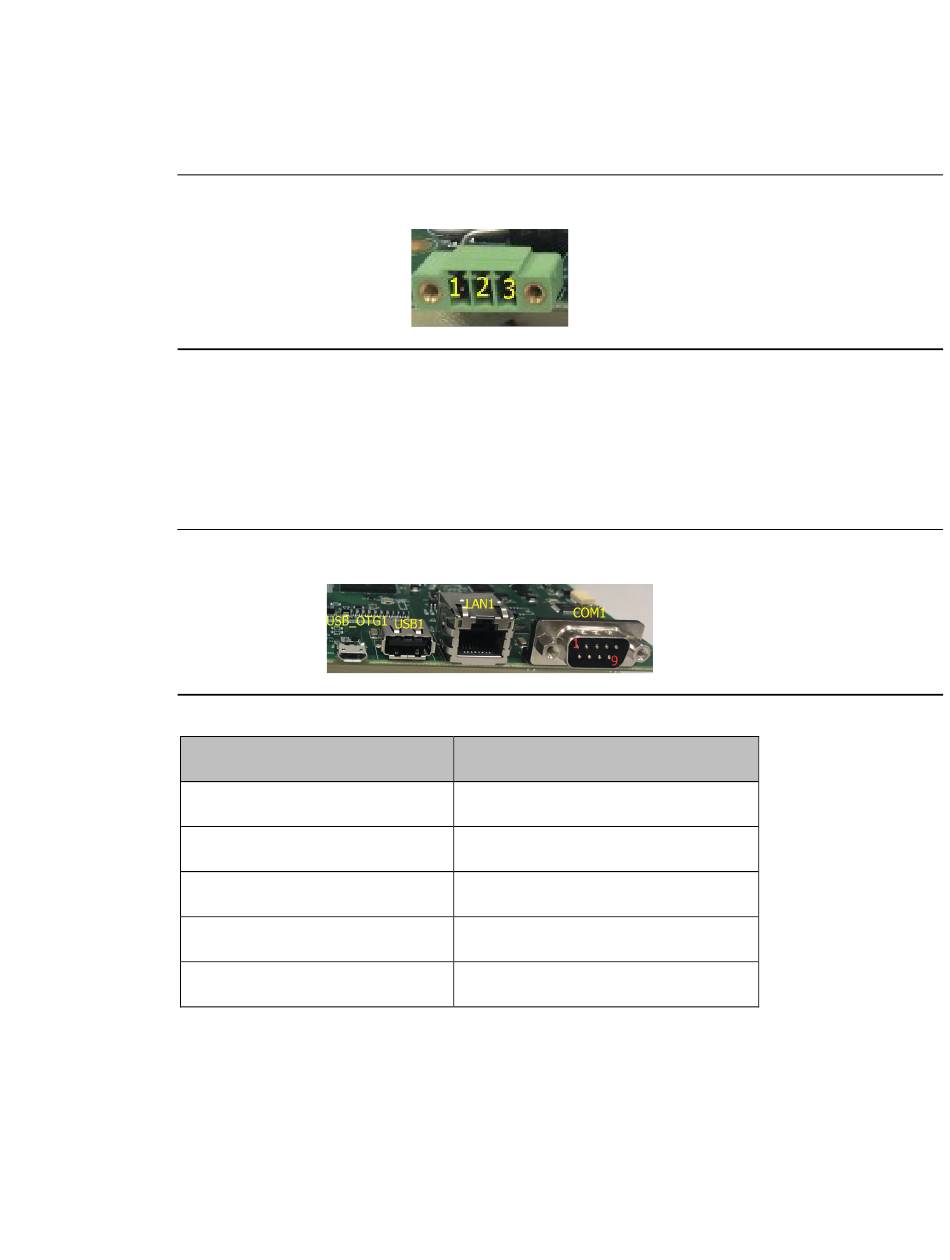

Figure 106: USB, LAN, and COM Ports
USB_OTG1 Pin#
1
2
3
4
5
Hardware
Signal Name
5V_USB_OTG
USB_OTG_DN
USB_OTG_DP
USB0_ID
GND
