One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the
FEATURES
Full featured evaluation board (EVAL-AD5313RDBZ)
in conjunction with nanoDAC motherboard
(EVAL-MBnanoDAC-SDZ)
On-board references
Various link options
PC control in conjunction with Analog Devices, Inc., system
demonstration platform (SDP)
EVALUATION KIT CONTENTS
EVAL-AD5313RDBZ
evaluation board
EVAL-MBnanoDAC-SDZ
motherboard
USB cable
SOFTWARE REQUIRED
EVAL-AD5313RDBZ
evaluation software
HARDWARE REQUIRED
EVAL-SDP-CB1Z
controller board
must be purchased separately
EVAL-AD5313RDBZ, EVAL-MBNANODAC-SDZ, AND
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
AD5313R
10-Bit, Dual-Channel Voltage Output Digital-to-Analog
Converter (DAC)
(SDP-B
controller board),
EVAL-AD5313RDBZ User Guide
GENERAL DESCRIPTION
This user guide details the operation of the
evaluation board for the
DAC. The
AD5313R
The
EVAL-AD5313RDBZ
AD5313R
circuits and reduce design time. The evaluation board
interfaces with the USB port of a PC via the
board. Software can be downloaded via the
product page that allows users to program the AD5313R.
This evaluation board requires the
which is available for order on the Analog Devices, Inc.,
website.
Full data on the
sheet available from Analog Devices and should be consulted in
conjunction with this user guide when using the evaluation board.
EVAL-SDP-CB1Z

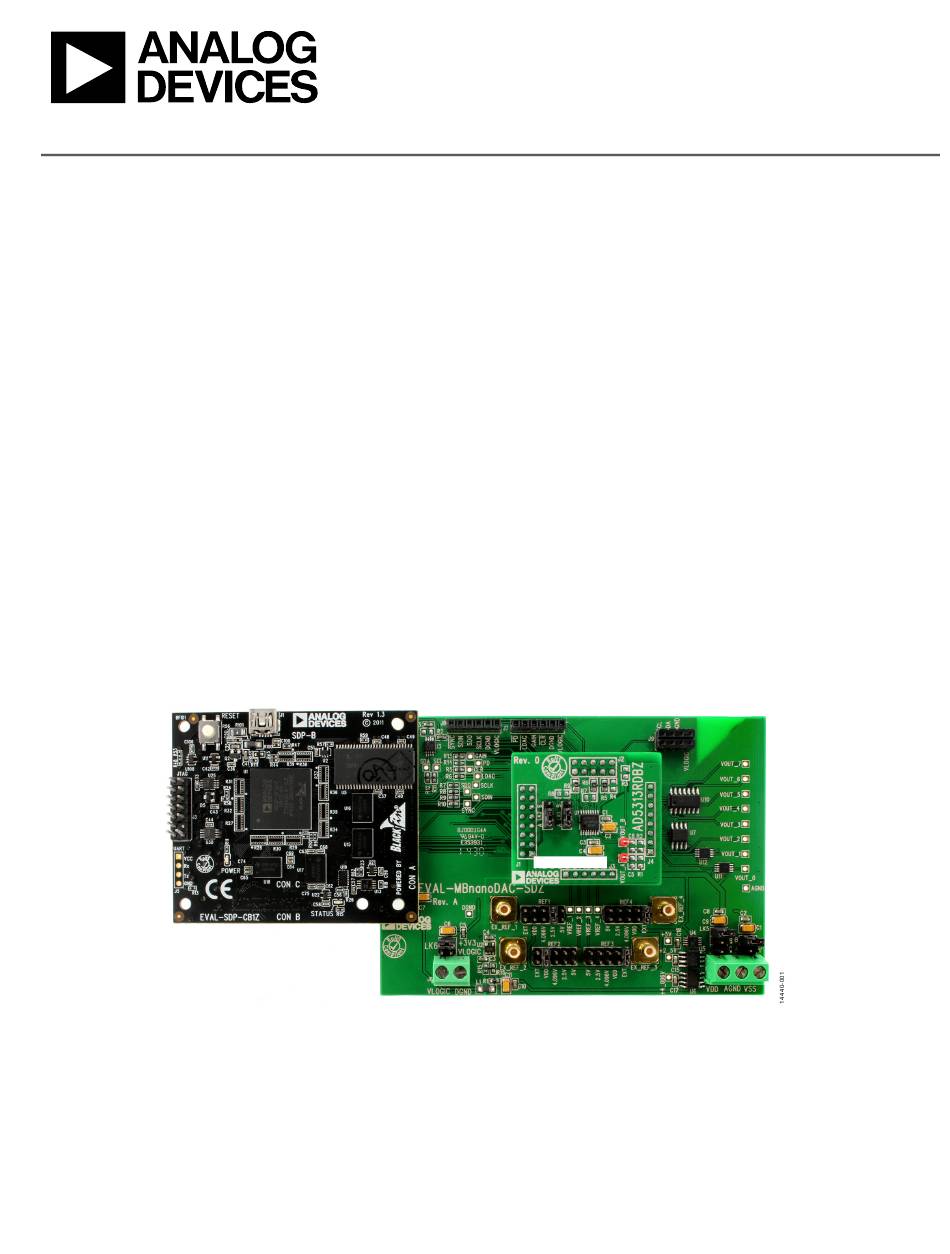

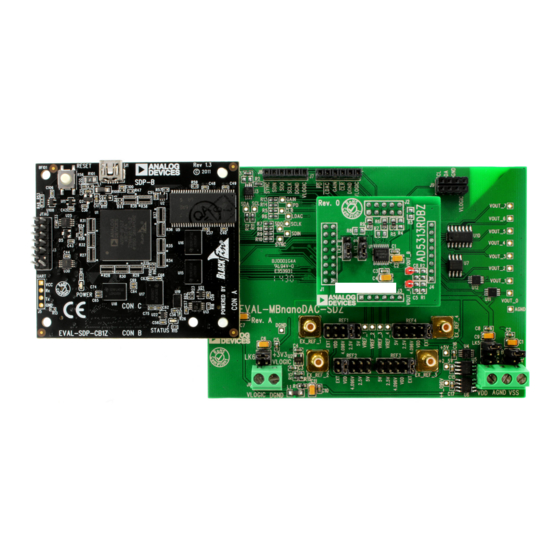

Figure 1.
Rev. A | Page 1 of 13
EVAL-AD5313RDBZ
AD5313R
dual-channel, voltage output
operates from a single 2.7 V to 5.5 V supply.
is designed to quickly prototype
SDP-B
EVAL-AD5313RDBZ
SDP-B
controller board,
AD5313R
can be found in the
BOARDS
UG-965
controller
AD5313R
data
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-AD5313RDBZ
Summary of Contents for Analog Devices EVAL-AD5313RDBZ
-
Page 1: Features
AD5313R. This evaluation board requires the SDP-B controller board, EVAL-AD5313RDBZ evaluation board which is available for order on the Analog Devices, Inc., EVAL-MBnanoDAC-SDZ motherboard website. USB cable Full data on the AD5313R... -
Page 2: Table Of Contents
Features ....................1 Daughter Board Link Options .............3 Evaluation Kit Contents ..............1 Evaluation Software................4 Software Required ................1 Installing the EVAL-AD5313RDBZ evaluation software .....4 Hardware Required ................1 Running the Software ..............4 General Description ................. 1 Software Operation ...............5 EVAL-AD5313RDBZ, EVAL-MBnanoDAC-SDZ, and EVAL- Evaluation Board Schematics and Artwork ........7... -
Page 3: Evaluation Board Hardware
MBnanoDAC-SDZ and must be set for the required operating supports single and dual power supplies. conditions before using the EVAL-AD5313RDBZ. Table 2 EVAL-AD5313RDBZ evaluation board can be powered describes the positions of the links to control the evaluation either from the... -
Page 4: Evaluation Software
Power up the EVAL-AD5313RDBZ as described in the Power Supplies section. Click Start > All Programs > Analog Devices > AD5313R Evaluation Software to locate the evaluation board. If the SDP-B controller board is not connected to the USB port when the software launches, a connectivity error displays (see Figure 2). -
Page 5: Software Operation
EVAL-AD5313RDBZ User Guide UG-965 Figure 4. AD5313R Evaluation Software Main Window Alternatively, the EVAL-AD5313RDBZ evaluation software can LDAC Control be used without an evaluation board. The EVAL-AD5313RDBZ Select the Pulse LDAC button to bring the LDAC pin low and evaluation software runs in simulation mode displaying then back to high, copying the data from the input registers to expected outputs based on the input data. - Page 6 UG-965 EVAL-AD5313RDBZ User Guide Power-Down Control GAIN Control DAC A and DAC B in the AD5313R can be powered down Set the GAIN pin high or low by clicking the blue progressive individually. Each of the DACs has a selection box allowing the disclosure button on the GAIN SELECT block to access the Gain selected DAC to operate in normal mode or power-down mode.
-
Page 7: Evaluation Board Schematics And Artwork
EVAL-AD5313RDBZ User Guide UG-965 EVALUATION BOARD SCHEMATICS AND ARTWORK EVAL-MBNANODAC-SDZ MOTHERBOARD +3.3V USB_VBUS BEAD 1.6Ω 100kΩ RESET_IN BMODE1 UART_RX UART_TX RESET_OUT SLEEP 4.7µF EXT_VDD 10µF 0.1µF +3.3V EEPROM_A0 WAKE STANDARD CONNECTOR DGND 24LC32 DGND 100kΩ CLK_OUT DGND TMR_C* TMR_D TIMERS... - Page 8 UG-965 EVAL-AD5313RDBZ User Guide DAUGHTER BOARD CONNECTOR SDIN SDO SCLK SYNC SCL LDAC CLR GAIN LDAC SDIN SCLK SYNC GAIN SPI PMOD CONNNECTOR GPIO PMOD CONNNECTOR J8-1 J7-1 SYNC J4-1 J8-2 J7-2 VOUT_0 SDIN LDAC AGND J8-3 J7-3 GAIN J4-2...
- Page 9 EVAL-AD5313RDBZ User Guide UG-965 Figure 12. EVAL-MBnanoDAC-SDZ Motherboard Component Placement Figure 13. EVAL-MBnanoDAC-SDZ Motherboard Top Side Routing Rev. A | Page 9 of 13...
-
Page 10: Eval-Ad5313Rdbz Daughter Board
UG-965 EVAL-AD5313RDBZ User Guide Figure 14. EVAL-MBnanoDAC-SDZ Motherboard Bottom Side Routing EVAL-AD5313RDBZ DAUGHTER BOARD VREF1 AD5313R SETUP VOUT_A SDIN LDAC GAIN GAIN SCLK SYNC GAIN VOUT_A VOUT_0 LDAC LDAC RESET J4-1 VOUT_0 R3 DNP AGND J4-2 VOUT_1 AD5313RBRUZ J4-3 VOUT_2 0Ω... - Page 11 EVAL-AD5313RDBZ User Guide UG-965 Figure 16. EVAL-AD5313RDBZ Daughter Board Component Placement Figure 17. EVAL-AD5313RDBZ Daughter Board Top Side Routing Figure 18. EVAL-AD5313RDBZ Daughter Board Bottom Side Routing Rev. A | Page 11 of 13...
-
Page 12: Ordering Information
UG-965 EVAL-AD5313RDBZ User Guide ORDERING INFORMATION BILL OF MATERIALS Table 4. EVAL-MBnanoDAC-SDZ Motherboard Reference Designator Description Supplier /Part Number C1, C6, C7, C9 6.3 V tantalum capacitors (Case A), 10 µF, ±20% FEC 1190107 C2, C5, C8, C10, C15 to C17 50 V, X7R ceramic capacitors, 0.1 µF, ±10%... - Page 13 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
