Appendix

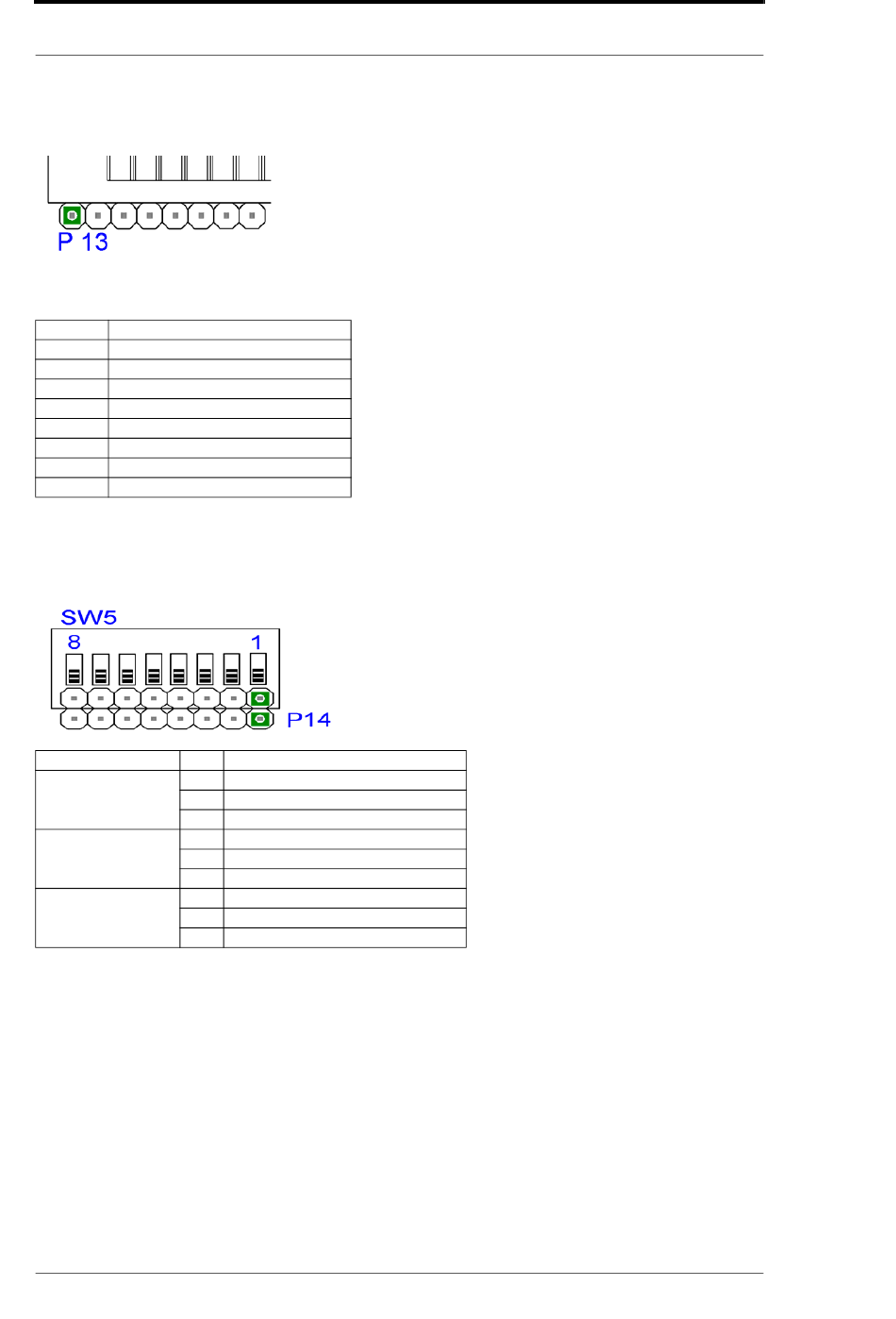

P 13

Status signal of the IC

Plug connector P 13

Signal

Vcc

Gnd

-RESET

RX of the IC (TTL-level)

TX of the IC (TTL-level)

TE Pin IC (TTL-level)

TX Debug of the IC (TTL-level)

RX Debug of the IC (TTL-level)

P 14, SW5H, SW5L

Input shift register

For a detailed assignment and for information on which pin is assigned to which bits, see also

chapter 5

Connection

P 14

.....

SW5H

.....

SW5L

.....

Meaning

Input 9

.....

Input 16

Input 25

.....

Input 28

Input 29

.....

Input 32

Instruction manual UNIGATE

Deutschmann Automation GmbH & Co. KG

IC - DeviceNet V. 2.7

7.10.10
