Appendix
14.2
Basis board
The basis board that is descibed in this chapter was supplied until the
end of 2008.
A new board is available since the beginning of 2009 (see chapter
13.5.1).
14.2.1

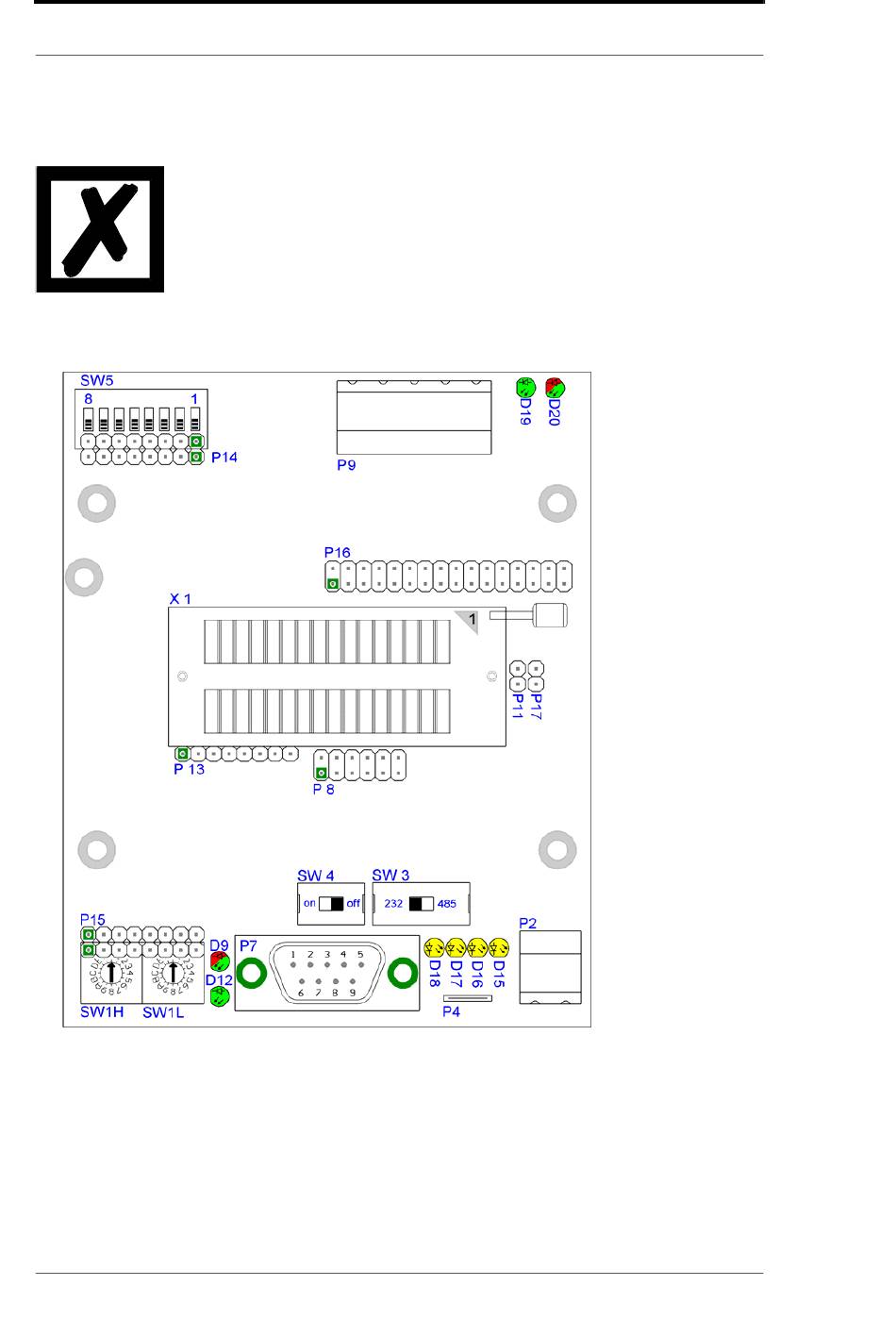

Overview basis board DeviceNet
Slot X 1 (ZIF-socket)
PIN 1 of the IC is located up at the lever of the ZIF-socket.
Never place the IC into the socket back to front!
36
Instruction manual UNIGATE
Deutschmann Automation GmbH & Co. KG
®
IC - DeviceNet V. 2.7
7.10.10
