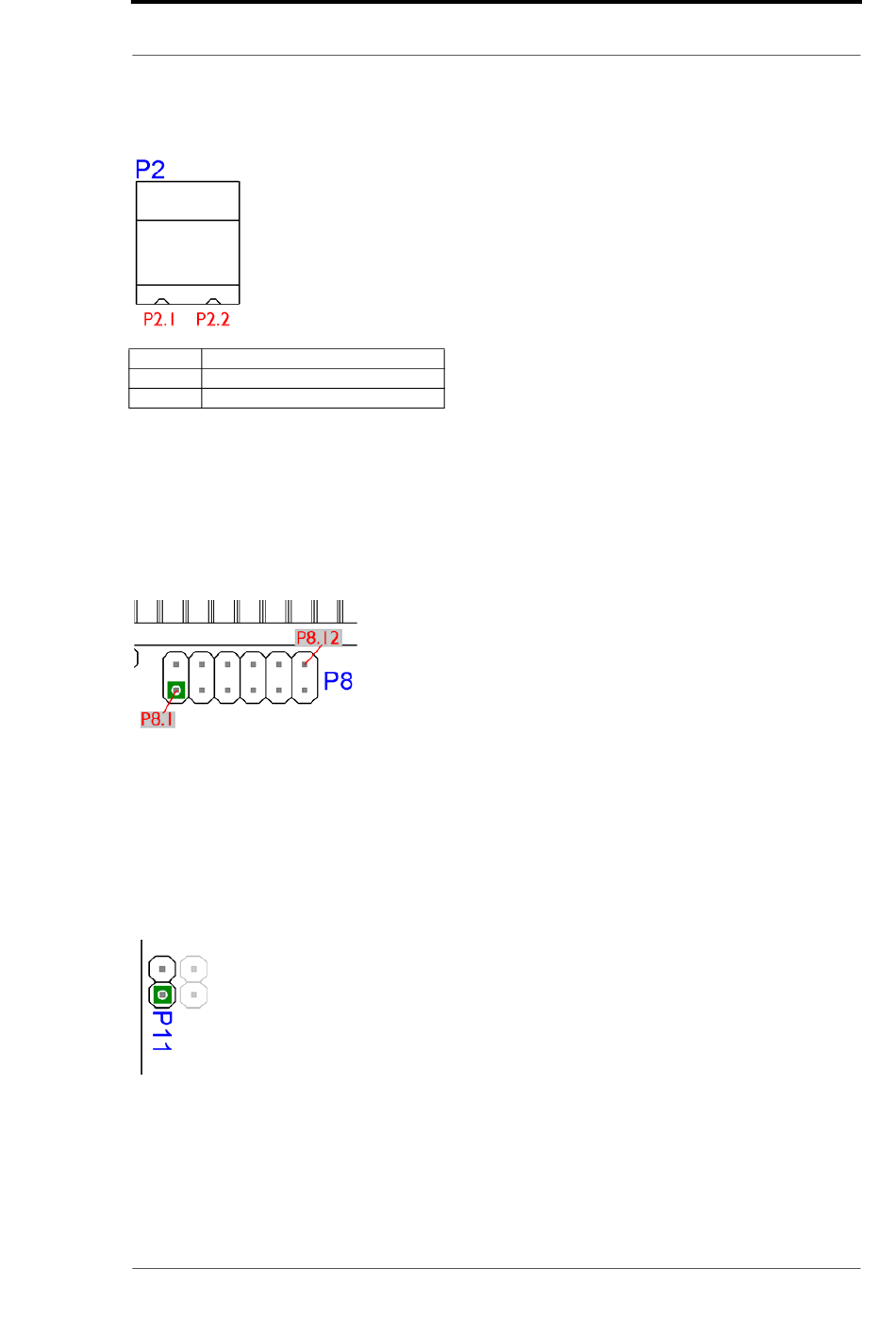

P 2
Pin Signal
Pin 1 24 V DC
Pin 2 Ground
The basis board is supplied with voltage through this plug connector.
P 4
Earth terminal 6.3 mm for basis board.
P 7
This plug is the basis board's serial connection to the customer's device and the connection to
the PC (Debug-interface).
For the pin assignment see chapter 14.2.2.1.
The illustration shows the arrangement of the pins. On this connector strip the signals of the
serial connection between IC and RS-drivers are wired. For an initial development you will prob-
ably also use an existing driver in your application. In order to exchange it later on, you can also
directly take the signals of the serial interface here.
P 9
DeviceNet plug connector
For the assignment of the connector see chapter 14.2.2.2.
P 11
Force Boot. By setting this bridge the Pin BE is dragged to Ground. For the function see chapter
11.2.1.
