Advantech AIMB-785 Startup Manual

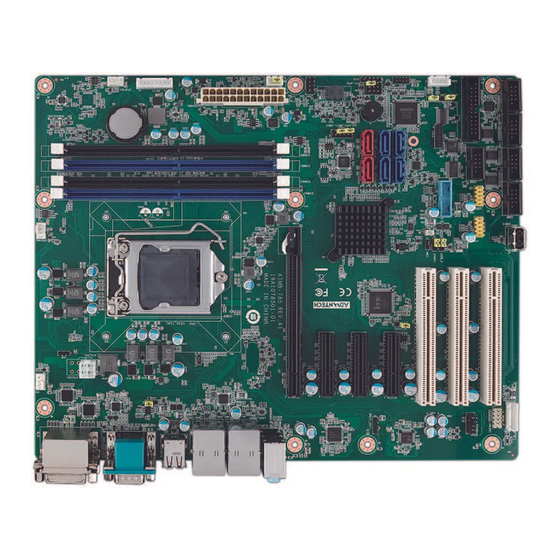

AIMB-785 LGA1151 Intel® Core™ i7/i5/i3 ATX with
Triple Display, DDR4, SATA III
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 AIMB-785 motherboard
• 1 AIMB-785 Startup Manual
• 2 Serial ATA HDD data cables
• 2 Serial ATA HDD power cables
• 1 I/O port bracket
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note:
Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded at:
www.adobe.com/Products/acrobat/readstep2.
html (Acrobat is a trademark of Adobe)
Specifications
Standard Functions
• CPU: LGA1151 6th and 7th Gen Intel® Core™ i7/i5/i3
and Celeron®/Pentium® processors
Note:
Only 6th Gen Intel® processors can support
Windows 7.
• BIOS: AMI 128 Mb SPI BIOS
• Chipset: Intel® Q170 chipset
• System memory: Up to 64 GB with four 288-pin DIMM
sockets, supporting dual-channel DDR4 1866/2133
SDRAM. AIMB-785 supports non-ECC unbuffered DIMMs
and does not support any memory configuration that
mixes non-ECC with ECC unbuffered DIMMs.
Note:
Due to the inherent limitations of PC architecture,
the system may not fully detect 64 GB RAM
when 64 GB RAM is installed.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the AIMB-785 series Rev. A1.
Part No. 2001078513
Printed in China
• SATA interface: Four on-board Serial ATA 3.0 connectors
• PCIe and PCI slots: 1 PCIe x16 expansion slot, 3 PCIe
• LPC interface: Advantech-designed LPC connector sup-
• Serial ports: Six serial ports: COM1, COM2 and COM4 ~
• Keyboard/mouse connector: An external keyboard and
• Watchdog timer: 255 sec timer intervals
• USB 3.0/2.0: Thirteen USB ports: 1/2/3/4/13/14 are USB
Graphics Interface
• Chipset: CPU integrated graphics controller
• Display Memory: 1 GB maximum shared memory with 2
• Resolution: Supports DVI up to 1920 x 1200 resolution
Ethernet Interface
• Interface: 10/100/1000 Mbps
• Controller: LAN1: Intel
Mechanical and Environmental
• Dimensions (L x W): 304.8 x 244 mm (12" x 9.6")
• Power supply voltage: +3.3 V, +5 V, +12 V, +5 Vsb
• Power consumption:
• Operating temperature: 0 ~ 60°C (depending on CPU)
• Weight: 0.7 kg (weight of board)
4th Edition
October 2024
Specifications (Cont.)
support data transmission rates of up to 600 MB/s. All
four SATA 3.0 ports support Advanced Host Controller
Interface (AHCI) technology.
x4 expansion slots, 3 PCI slots 32-bit/33 MHz PCI 2.2
compliant
ports dTPM 2.0 module
6 are RS-232; COM3 is RS-232/422/485 with BIOS menu
options
mouse connector on the motherboard is supported. No
PS/2 keyboard/mouse connector is supported in the rear
I/O.
3.0; others are USB 2.0.
GB and above system memory installed
@ 60 Hz refresh rate.
Supports VGA up to 1920 x 1200 resolution @ 60 Hz
refresh rate.
®
Intel® Core™ Intel® I7-6700 3.4 GHz; DDR4 8 G x 4
Maximum: +3.3 V at 1.02 A, +5 V at 1.96 A, +12 V at 1.14
A, +5 Vsb at 0.08 A, -5 V at 0.03 A, -12 V at 0.06 A
AIMB-785 Startup Manual 1
I219LM; LAN2: Intel I210AT
®
