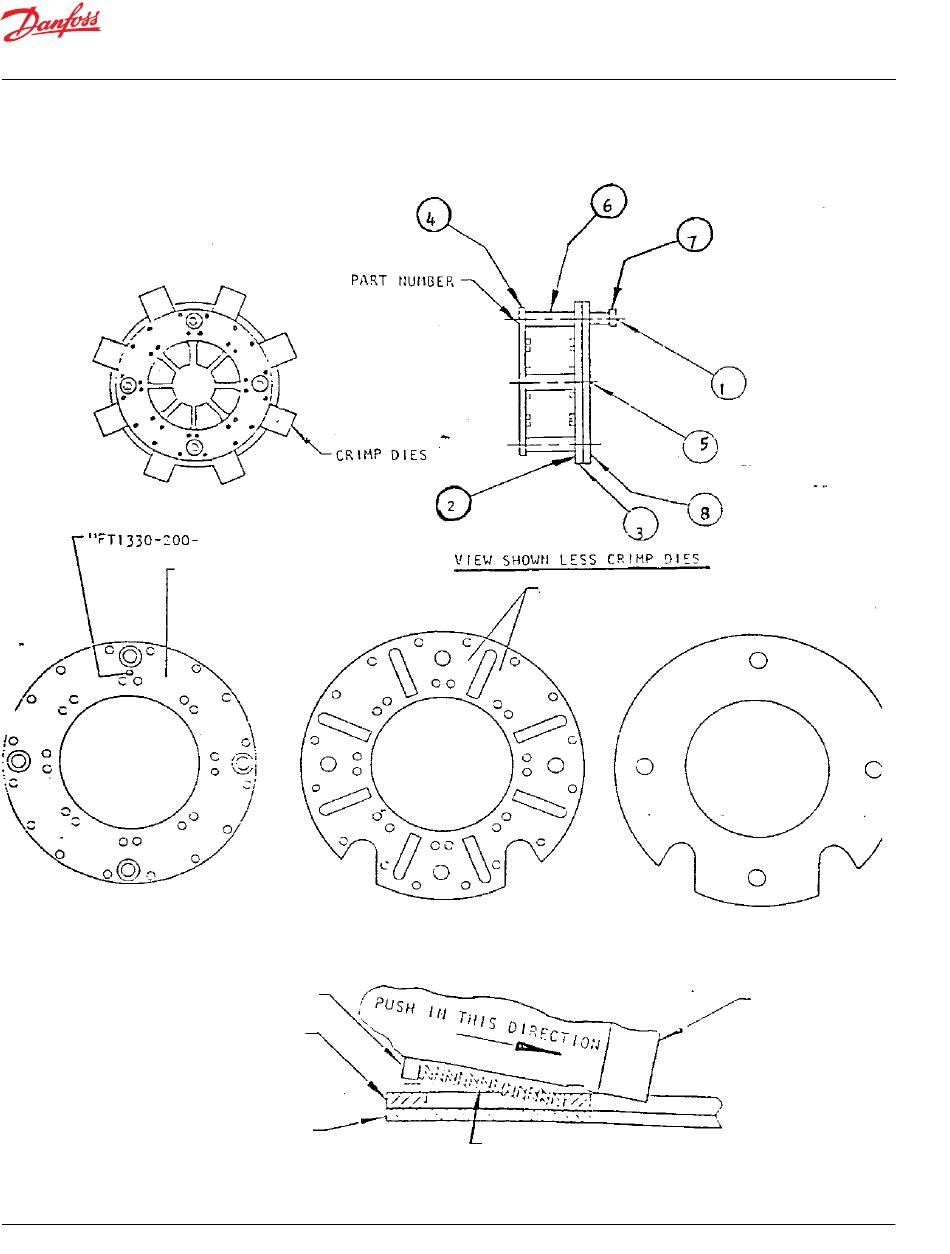

Assembly Instructions for Factory Crimp Die Cage
LUBRICATE AREAS WHERE
CRIMP DIES CONTACT WITH
HIGH EFFICIENCY PTFE GREASE
(T-400-G) (OPPOSITE SIDE)
FRONT PLATE
46 | © Danfoss FT1330 Crimp Machine Operator's Manual | 2023.02.
ROLL PIN
SPRING PLATE
BACK PLATE
INSTALLING THE CRIMP DIE
Danfoss FT1330 Crimp Machine Operator's Manual
LUBRICATE WITH HIGH EFFICIENCY
PTFE GREASE (T-400-G)
SPRING PLATE
SPRING
BACK PLATE
CRIMP DIE
AQ439269212774en-000101
