Danfoss FT1330 Operator's Manual page 20

Operating / Assembly Instructions
Flat Field Crimp Style (1 piece fitting)

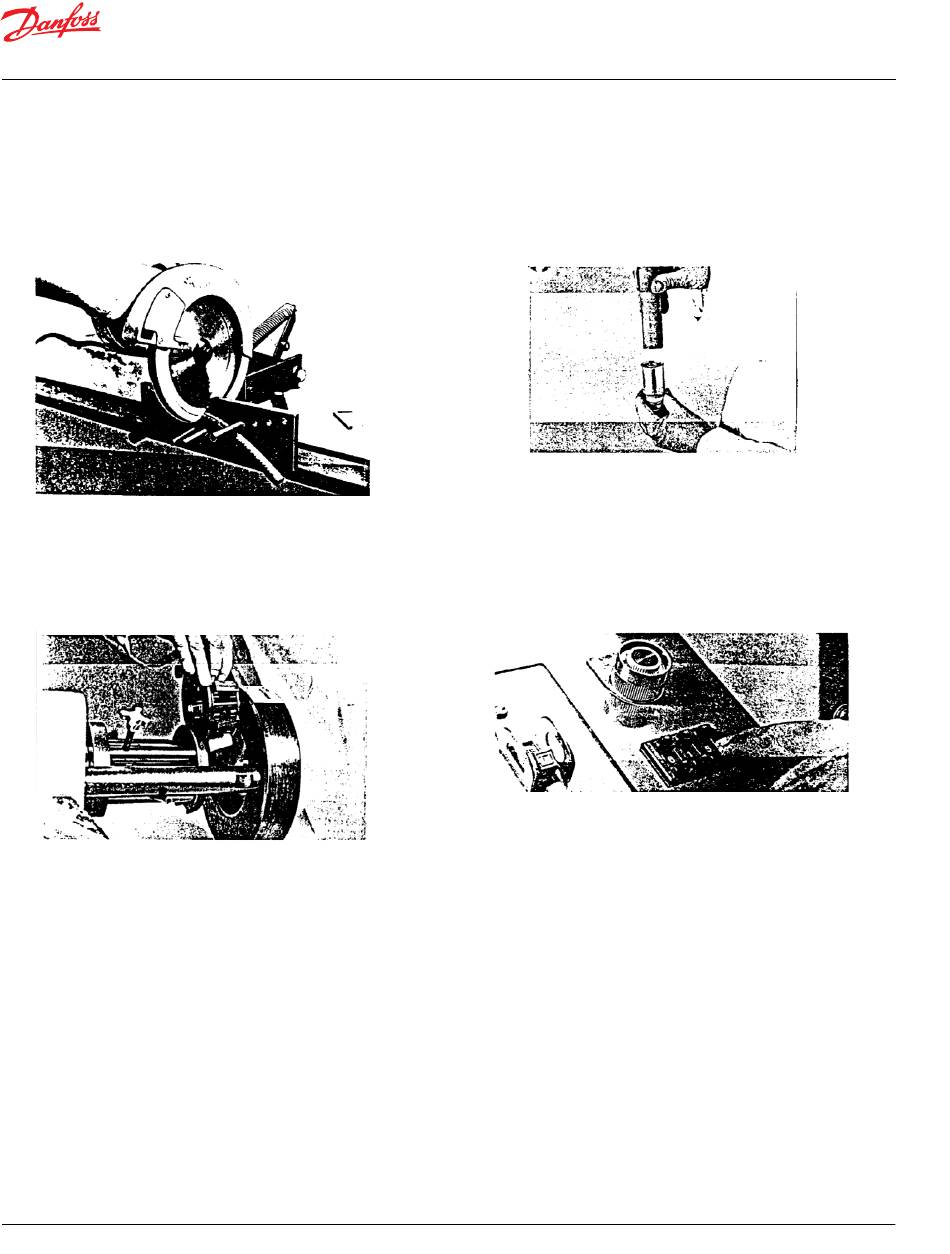

STEP 1 - CUT THE HOSE TO LENGTH REQUIRED
CUT THE HOSE USING A CUT-OFF SAW OR FINE TOOTH HACKSAW.
CLEAN THE HOSE BORE
STEP 3 - INSERT PROPER CRIMP DIE CAGE
WITH THE PISTON RETRACTED, THE CORRECT CRIMP DIE CAGE IS
INSTALLED WITHIN THE THREE ALIGNMENT SLOTS. FOR PROPER CRIMP
DIE NUMBER REFER TO THE POWERSOURCE CRIMP SPEC TOOL.
20 | © Danfoss FT1330 Crimp Machine Operator's Manual | 2023.02.
Danfoss FT1330 Crimp Machine Operator's Manual
STEP 2 - PREASSEMBLE
SELECT THE PROPER HOSE AND FITTING. INSTALL THE FITTING ON THE
HOSE UNTIL THE NIPPLE SHOULDER BOTTOMS AGAINST THE HOSE.
STEP 4 - SET THE DIGITAL ENCODER
REFER TO THE POWERSOURCE CRIMP SPEC TOOL FOR PROPER
CONTROL SETTING BASED ON HOSE SIZE AND STYLE. SET DIGITAL
ENCODER ACCORDINGLY..
