Danfoss FT1330 Crimp Machine Operator's Manual
Operating / Assembly Instructions
Factory Crimp Style (2 piece fitting)

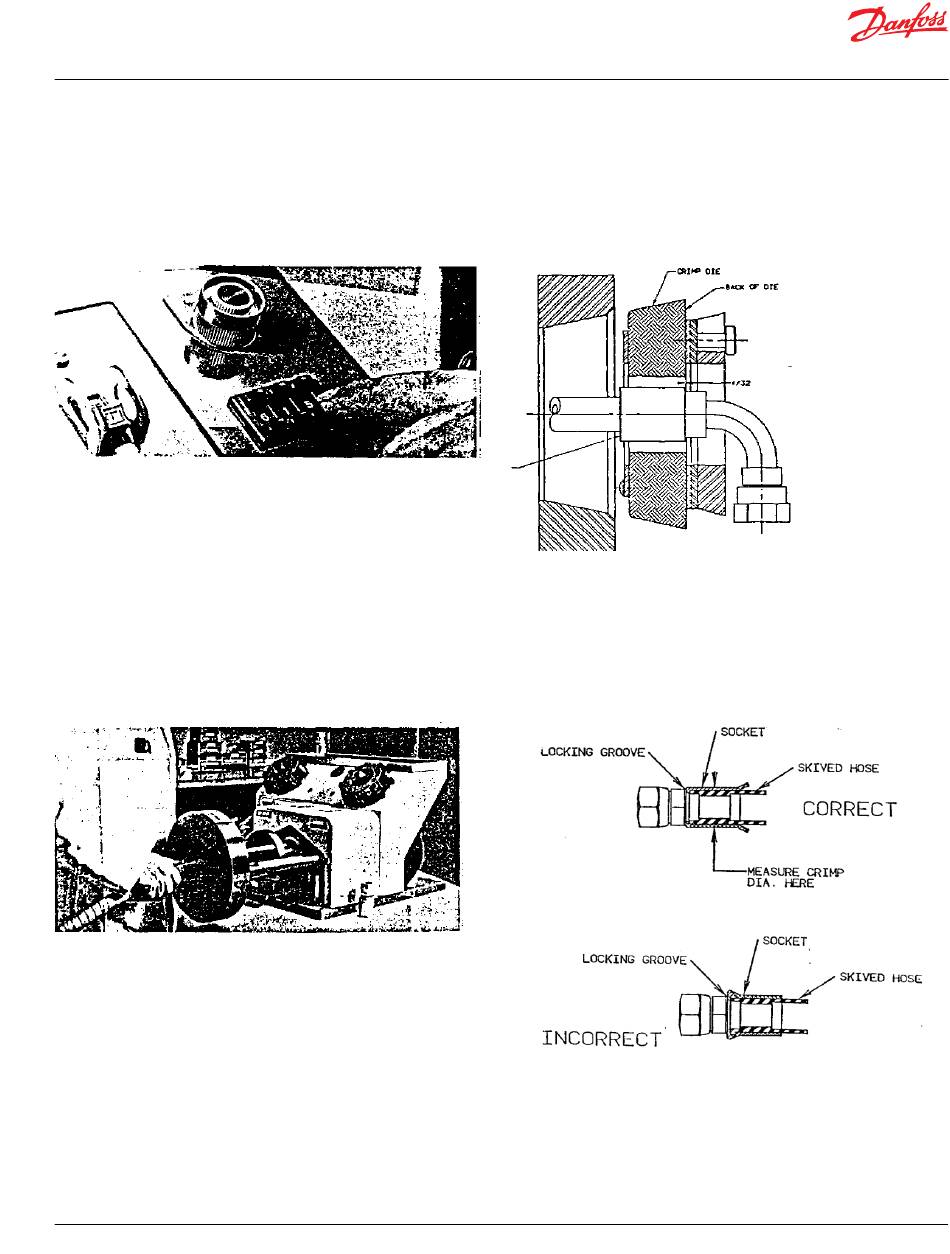

STEP 5 - SET THE DIGITAL ENCODER
REFER TO THE POWERSOURCE CRIMP SPEC TOOL FOR PROPER
CONTROL SETTING BASED ON HOSE SIZE AND STYLE. SET DIGITAL
ENCODER ACCORDINGLY.
STEP 7 - CRIMP THE ASSEMBLY
WITH ASSEMBLY HELD IN PLACE AS IN STEP 6, TURN THE MACHINE
ON AND DEPRESS THE FOOTSWITCH. THE DIES WILL AUTOMATICALLY
CRIMP THE FITTING TO THE PRESET DIMENSION. ONCE THE
FOOTSWITCH IS RELEASED, AFTER THE FULL CRIMPING STROKE, THE
DIES WILL RETURN. IF THE FOOTSWITCH IS RELEASED BEFORE THE FULL
CRIMP STROKE IS COMPLETED, THE DIES WILL STOP AND CAN ONLY BE
RETURNED BY PUSHING THE JOG RETURN SWITCH.
AQ439269212774en-000101
STEP 6 - POSITION THE FITTING
IF USING THE LOCATOR SYSTEM, LOOSEN THE HANO KNOB AND SLIDE THE
LOCATOR ASSEMBLY FORWARD OR BACK UNTIL SOCKET IS 1 /32" INSIDE OF
THE DIE CAGE (AS SHOWN) WHEN HELD AGAINST THE LOCATOR. LOCK THE
LOCATOR IN POSITION BY TIGHTENING THE HAND KNOB.
STEP 8 - CHECK YOUR WORK!
THE SOCKET MUST BE CRIMPED INTO THE LOCKING GROOVE. HOSE
FAILURE WILL OCCUR IF CRIMPED INCORRECTLY. VERIFY CRIMP
DIAMETER BY MEASURING ALL FOUR SIDES WITH A MICROMETER.
