Danfoss FT1330 Crimp Machine Operator's Manual
Operating / Assembly Instructions
Flat Field Crimp Style (1 piece fitting)

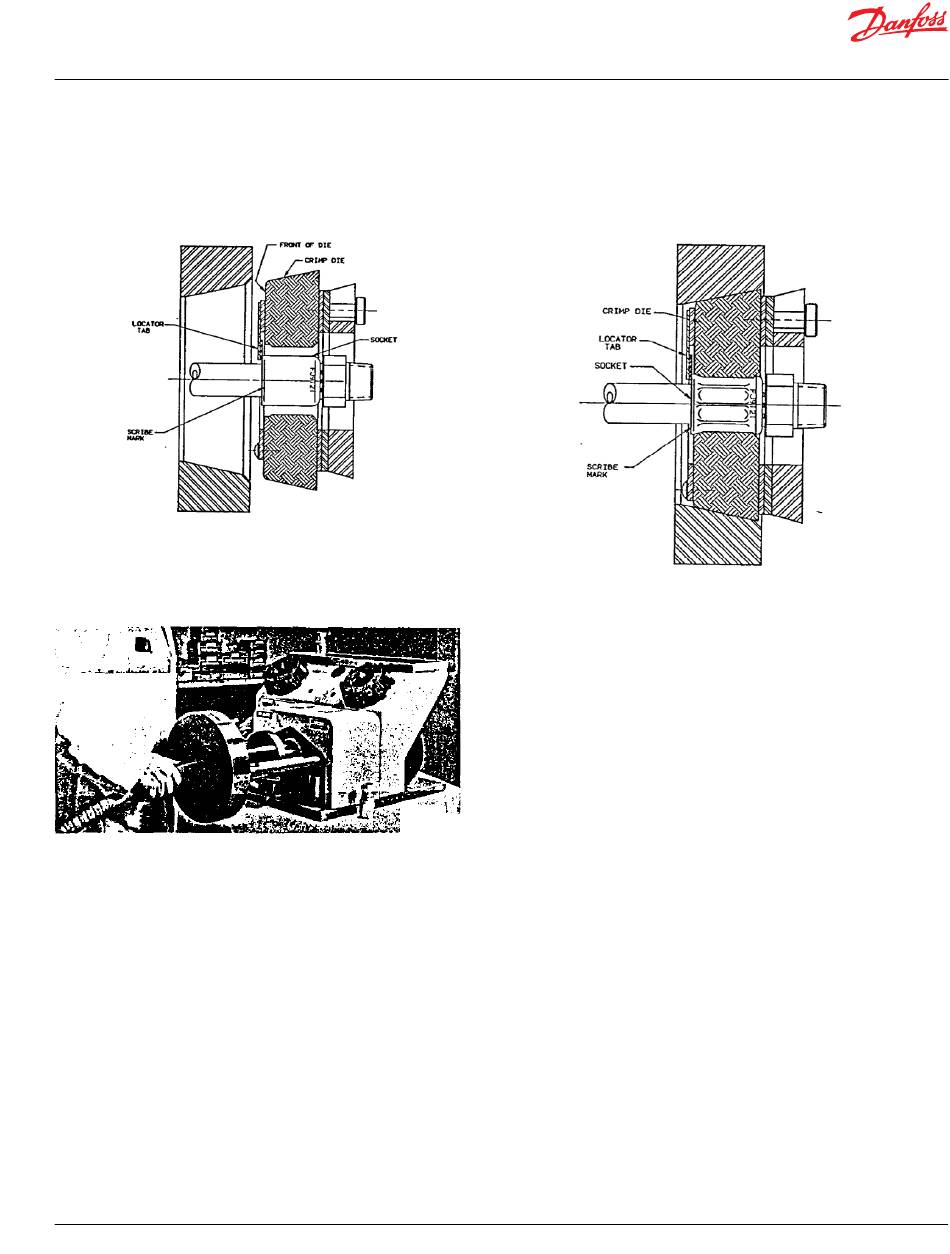

STEP 5 - POSITION THE FITTING
LOCATE THE HOSE AND FITTING IN THE CRIMPER SO THAT THE SCRIBE
MARK IS ALIGNED WITH THE FRONT OF THE DIES AS SHOWN AND/OR
LOCATE THE SOCKET AGAINST THE LOCATOR TABS, IF TABS ARE USED.
STEP 6 - CRIMP THE ASSEMBLY
TURN THE MACHINE ON AND DEPRESS THE FOOTSWITCH. THE DIES
WILL AUTOMATICALLY CRIMP THE FITTING TO THE PRESET DIMENSION.
ONCE THE FOOTSWITCH IS RELEASED, AFTER THE FULL CRIMPING
STROKE, THE DIES WILL RETURN. IF THE FOOTSWITCH IS RELEASED
BEFORE THE FULL CRIMP STROKE IS COMPLETED, THE DIES WILL STOP
AND CAN ONLY BE RETURNED BY PUSHING THE JOG RETURN SWITCH.
AQ439269212774en-000101
STEP 7 - CHECK YOUR WORK!
LOCATION OF SOCKET AFTER CRIMP, SCRIBE MARK ALIGNED WITH FRONT
OF DIE AS SHOWN OR SOCKET IS AGAINST LOCATOR TAB (IF TABS ARE
AVAILABLE).
