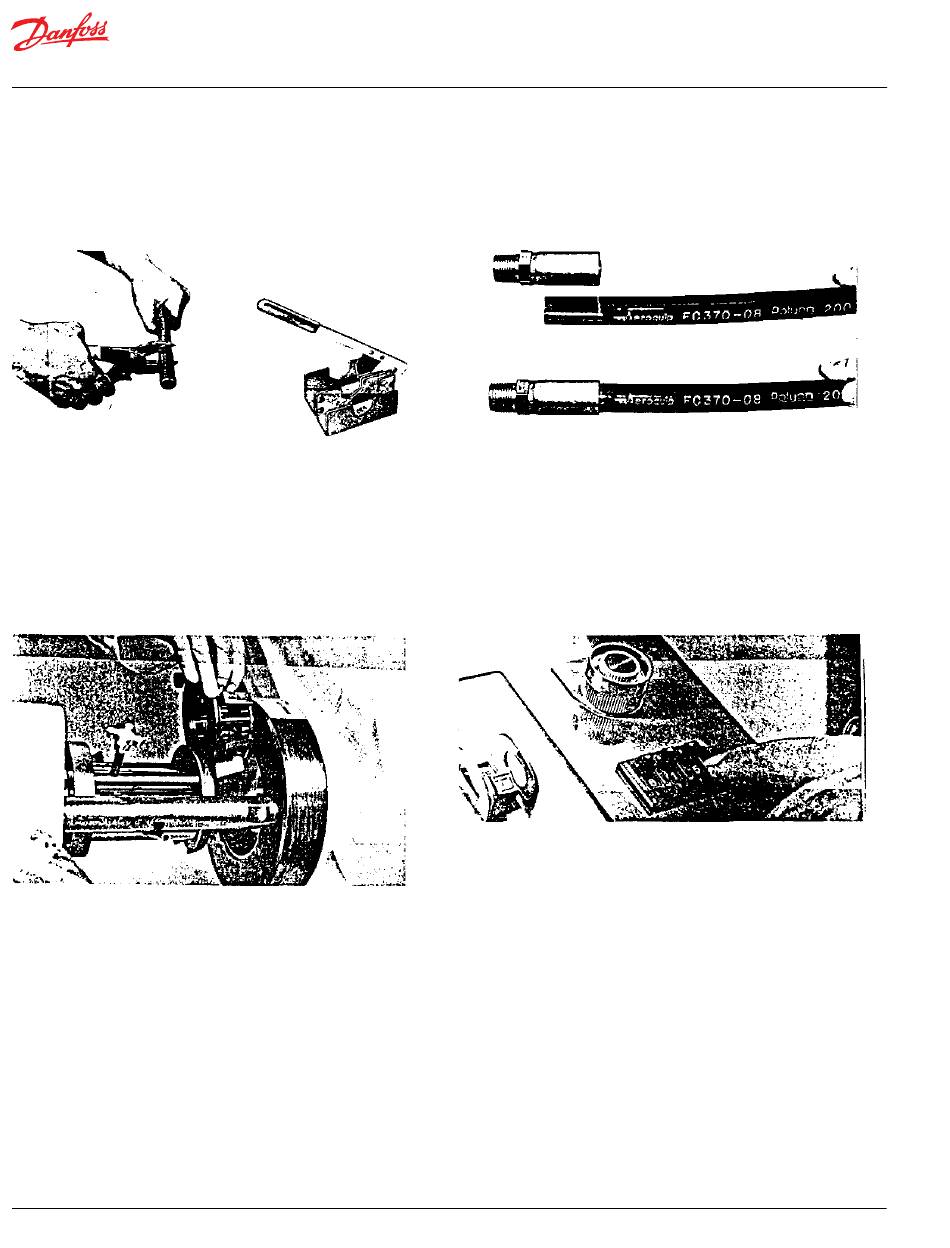

Operating / Assembly Instructions
Thermoplastic Style (1 piece fitting)
STEP 1 - CUT THE HOSE TO LENGTH REQUIRED
CUT THE HOSE USING A HAND-HELD CUT-OFF TOOL, AEROQUIP
PART NUMBER FT1259 OR A BENCH MOUNTED CUT-OFF TOOL,
AEROQUIP PART NUMBER FT1258.
STEP 3 - INSERT PROPER CRIMP DIE CAGE
WITH THE PISTON RETRACTED, THE CORRECT CRIMP DIE CAGE IS
INSTALLED WITHIN THE THREE ALIGNMENT SLOTS, FOR PROPER
CRIMP INFORMATION REFER TO THE POWERSOURCE CRIMP SPEC
TOOL.
18 | © Danfoss FT1330 Crimp Machine Operator's Manual | 2023.02.
Danfoss FT1330 Crimp Machine Operator's Manual
STEP 2 - PREASSEMBLE
SELECT THE HOSE AND FITTINGS TO BE USED. USING THE BOTTOM EDGE
OF THE FITTING PART NUMBER AS A REFERENCE FOR THE LENGTH OF
HOSE TO BE INSERTED INTO THE SOCKET, MARK THE HOSE FOR INSERTION
LENGTH WITH A GREASE PENCIL. PUSH THE FITTING ONTO THE HOSE
LEAVING THE SOCKET EDGE FLUSH WITH THE MARK ON THE HOSE. LIGHTLY
LUBRICATING THE FITTING NIPPLE WILL EASE FITTING INSERTION.
STEP 4 - SET THE DIGITAL ENCODER
REFER TO THE POWERSOUCE CRIMP SPEC TOOL FOR PROPER CONTROL
SETTING BASED ON HOSE SIZE AND STYLE. SET DIGITAL ENCODER
ACCORDINGLY..
