Summary of Contents for Danfoss ET4001

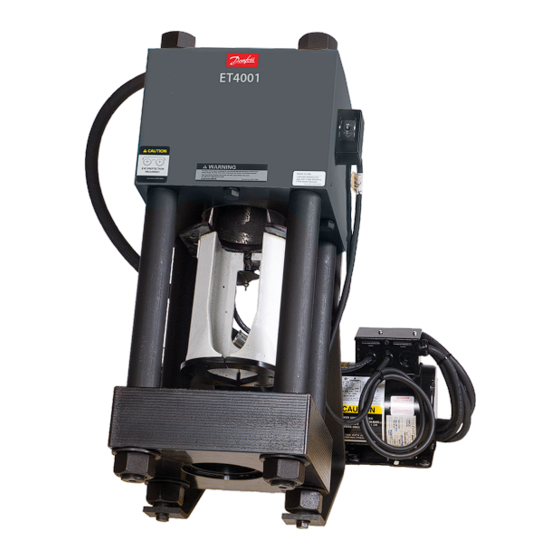

- Page 1 Operator’s Manual Danfoss ET4001 Crimp machine...
- Page 2 (under negligence or strict liability theories) should Danfoss hose, Danfoss supplier by another manufacturer may result in the production of unreliable hose fittings, or Danfoss assembly equipment be used with any hose, hose and/or unsafe hose assemblies and is neither recommended nor authorized fittings, or assembly equipment supplied by another manufacturer, or in the by Danfoss.
- Page 3 ET4001P-002 Electric pump The Danfoss ET4001P-002 power unit is ideally suited for use with the ET4001 press. It features a two-stage pump providing high flow at low pressure for fast ram approach and low flow at high pressure for actual crimping.
- Page 4 90º elbow onto the straight THAT THE PUMP BE ON adapter and the gauge into the AN INDIVIDUAL 20 AMP female port of the 90º elbow SERVICE OUTLET. fitting (Figure 5). 4 | © Danfoss ET4001 Crimp machine operator’s manual | 2022.06. AQ418954741547en-000101...
- Page 5 Do not cycle without base adapter ring in place. ! WARNING Do not attempt to disconnect the hose sssemblies when the pusher is not fully retracted. AQ418954741547en-000101 © Danfoss ET4001 Crimp machine operator’s manual | 2022.06. | 5...
- Page 6 PTFE based lubricant (T-400-G). OPEN the pusher halves and remove the crimped hose fittings. 6. Visually inspect the crimp and verify the correct crimp diameter and crimp length. 6 | © Danfoss ET4001 Crimp machine operator’s manual | 2022.06. AQ418954741547en-000101...
- Page 7 (T-400-G). OPEN the pusher halves and remove the crimped hose assembly. 11. Visually inspect the crimp and verify the correct crimp diameter and crimp length. AQ418954741547en-000101 © Danfoss ET4001 Crimp machine operator’s manual | 2022.06. | 7...
- Page 8 OPEN the pusher halves and remove the crimped hose fittings. 6. Visually inspect the crimp and verify the correct crimp diameter and crimp length. 8 | © Danfoss ET4001 Crimp machine operator’s manual | 2022.06. AQ418954741547en-000101...
- Page 9 Base adapter ring lubrication Every 250 crimps = Remove old grease and re-lubricate Every 1,000 crimps = Remove old grease, inspect for wear or damage and re-lubricate if okay. AQ418954741547en-000101 © Danfoss ET4001 Crimp machine operator’s manual | 2022.06. | 9...
- Page 10 Operate for 3 seconds at crimp pressure; Low oil level: Step #2, Pump worn (longer cycle time); Replace pump, Leaking relief valve and /or shuttle valve Step #3, #4 10 | © Danfoss ET4001 Crimp machine operator’s manual | 2022.06. AQ418954741547en-000101...
- Page 11 ET4000TP-0002 Wear plate kit ET4001C-0015 Blue shroud 120-00429 Screw, hex head ET4001C-0006* Left hand pusher assembly ET4001C-0005* Right hand pusher assembly * must be ordered as a pair AQ418954741547en-000101 © Danfoss ET4001 Crimp machine operator’s manual | 2022.06. | 11...
- Page 12 Phone: +86 21 3418 5200w Danfoss can accept no responsibility for possible errors in catalogs, brochures, and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.
