3.

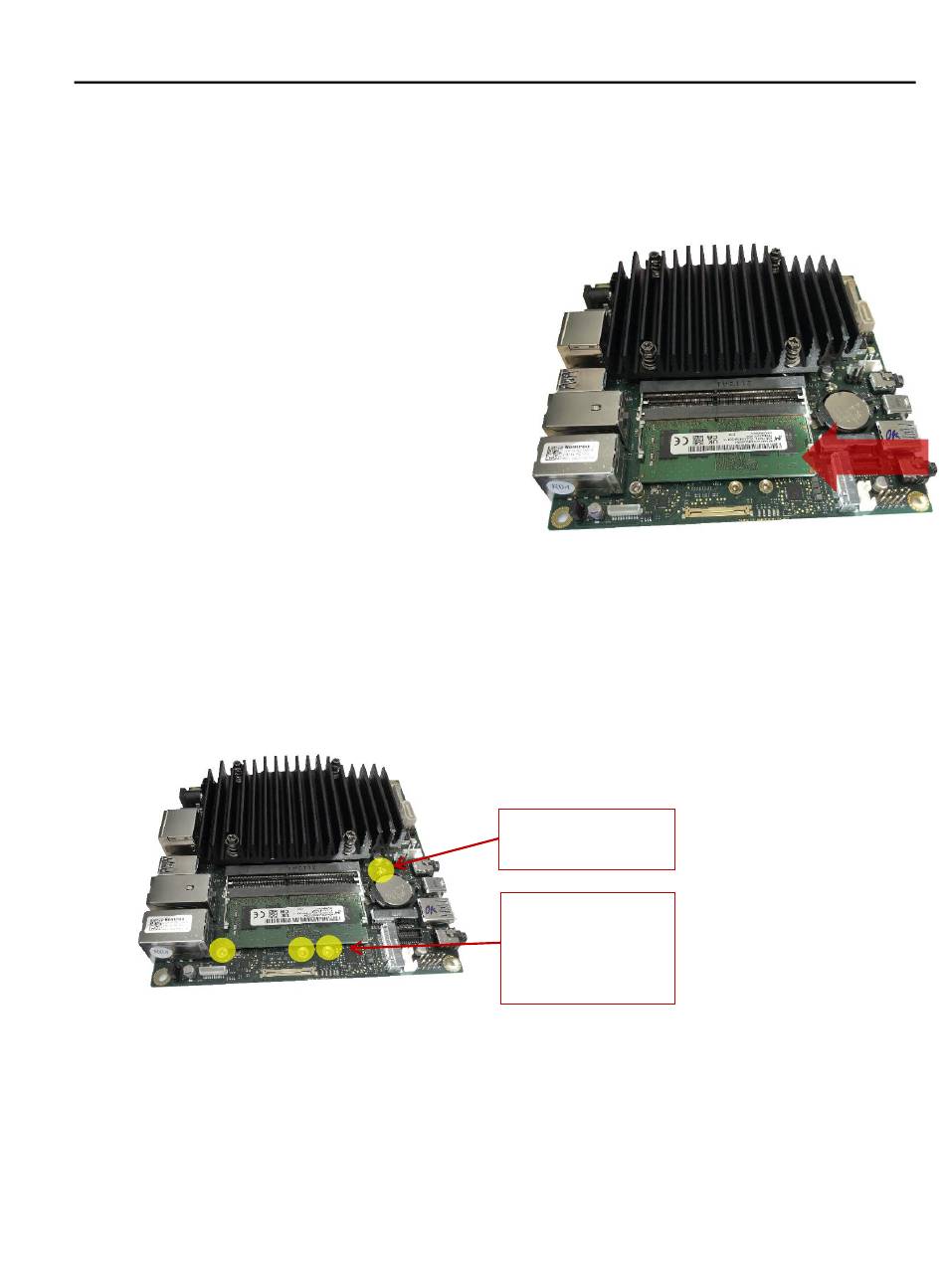

Inserting additional Modules (Memory / M.2 / ...)
Attention: Do not touch any pins! Touch the memory at the outer edges only.
Do not stick a barcode onto any modules!
The following procedure is recommended in order to ensure secure electrical contact:
1.
First, insert the lower memory angular
and pay attention to the notch!
2.
Remove the memory again completely
from the DIMM socket!
3.
Insert memory again
4.
Press down the memory until it fits
5.
Do not press in the middle of the memory,
but press down on the outer edges only
6.
Install the upper memory (if available) in
the same way as the lower one
Note: D3714-R1 provides lower memory socket only!
M.2 Module Assembly (PCIe SSD / WLAN)
First, remove the M.2 mounting screws
and screws are pre-installed).
.
In order to use a different Key-M module size (2230 or 2242), the nut has to be removed first and installed
to the desired position.
Insert M.2 modules angular into the socket (while paying attention to the coding / notch).
Any modules have to be touched on the outer edges only.
Mandatory torque for the M.2 screw is 0.2Nm, and 0.3Nm for the Key-M nut.
// 5 of 15
(for the M.2 Key M SSD and M.2 Key E WLAN/BT, the assembly nuts
Key-E (2230) screw
position
Key-M
(2230/2242/2280)
screw positions.
Default = 2280
lower
www.kontron.com
