5.

Motherboard Assembly

Note: Before assembling the motherboard into the chassis, it is recommended to install the optional
onboard components like heatsink, memory, M.2 modules, etc.

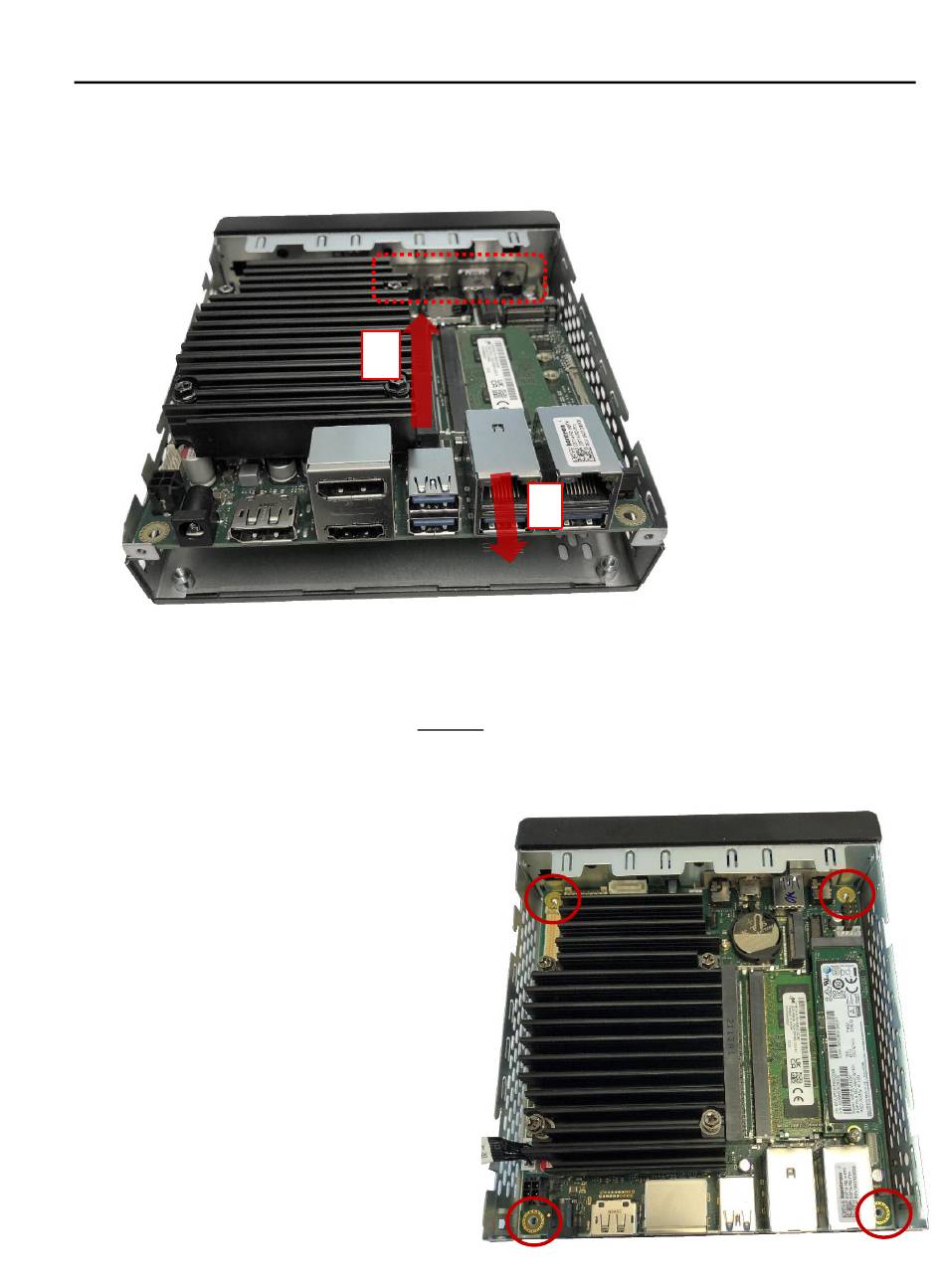

1. Slide in the motherboard carefully below the power button towards the front I/O
apertures (red marking)
2. Move the motherboard carefully down to the final position
Take care that the front EMI gaskets stay in the correct position.
Push down the mainboard carefully while
the four mounting holes fit onto the chassis nuts.
Assemble the four screws (M3x4.5).
Mandatory torque = 0.6Nm
// 8 of 15
1
2
www.kontron.com
