6.

Installing WLAN Antennas (optional)

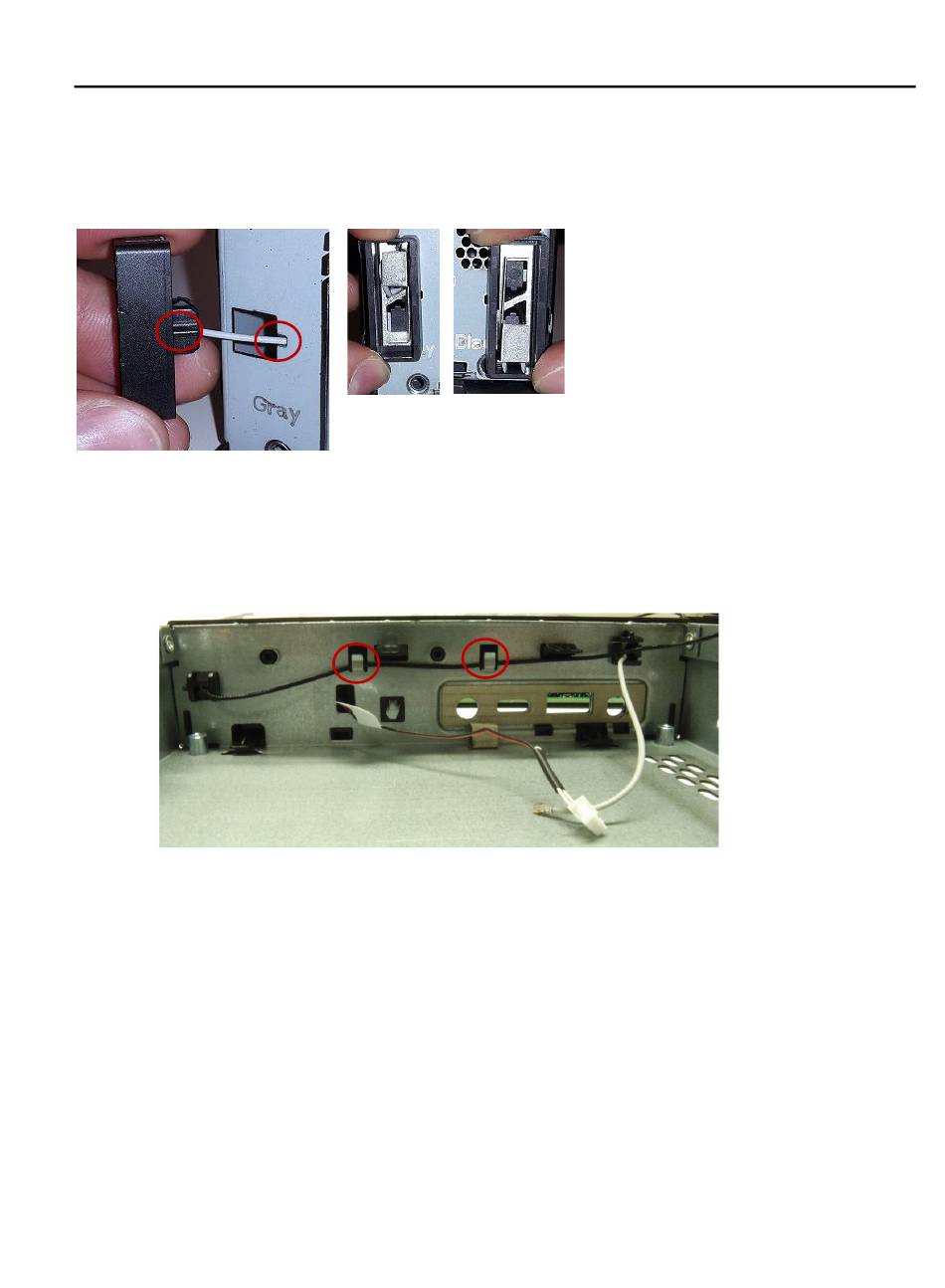

Please check the color-coding of the antennas. On the chassis front side the antenna bays are marked
respectively
.
gray
Please note that the plastic front bezel has to be removed first.
Insert the black antenna cable in the hooks (see red circles), and then plug the black antenna cable to socket
#1 of the M.2 WLAN module. Plug the gray antenna cable to socket
// 9 of 15
Push the antenna cables completely
through the opening in the housing and
pay attention to the antenna cable notch
(see red
circles).
Carefully install the WLAN antennas. The
metal plate must not be bent.
#2.
www.kontron.com
black
