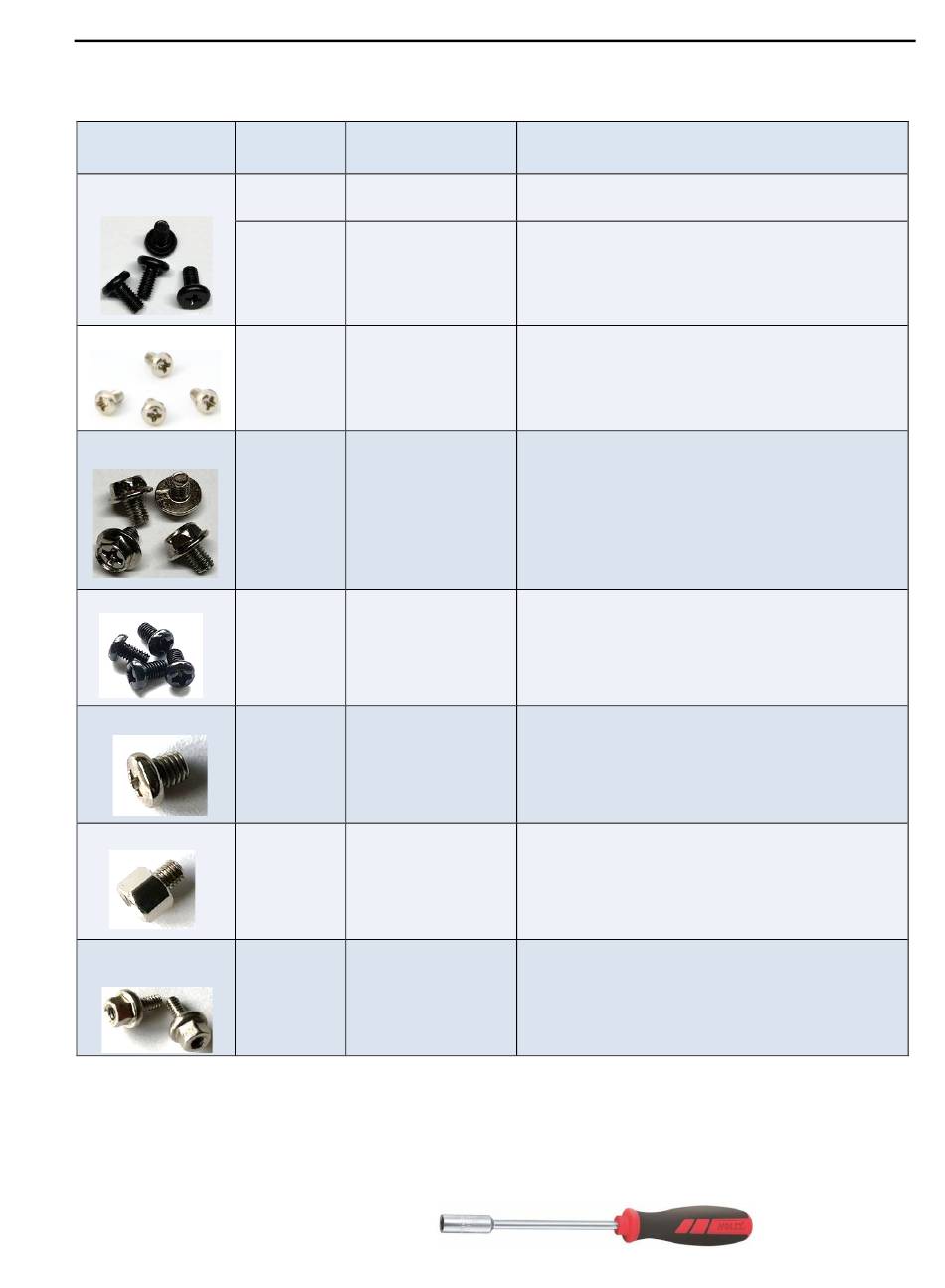

1. Delivery Kit & Accessories: Screw Overview
Assembly Screws
Type
M2.5 x 6mm
M2.5 x 3mm
M3 x 4.5mm
M3 x 5mm
M3 x 3.2mm
M3 x 3mm
COM screws
UNC4-40
Note: Actual screw models may differ from pictures shown above!
Assembly note: The screws requiring 0.6Nm (e.g. motherboard assembly) are designed for using a
hexagonal screwdriver. The additional cross recess is considered as backup only, e.g. for service purpose,
if no hexagonal screwdriver is available.
// 3 of 15
Mandatory
Amount
Assembly Torque
2 0.4Nm
2 0.4Nm
4 0.4Nm
4 0.6Nm
4 0.4Nm
2 0.2Nm
1 0.3Nm
2 0.6Nm
Note
for desk stand (vertical position) assembly
(delivered in plastic bag)
for chassis rear cover
(delivered in plastic bag)
Screws for optional wall mount bracket
(included in wall mount kit F5000-X001)
for motherboard assembly
(delivered in plastic bag)
for rubber feet (horizontal position) assembly
(delivered in plastic bag)
Screw for M.2 SSD/WLAN module assembly
(pre-installed on motherboard)
Hexagon bolt ("assembly nut") for
M.2 SSD module assembly
(pre-installed on motherboard)
Screw for optional COM cable
(included in cable kit F5000-K005/-K010)
