8.

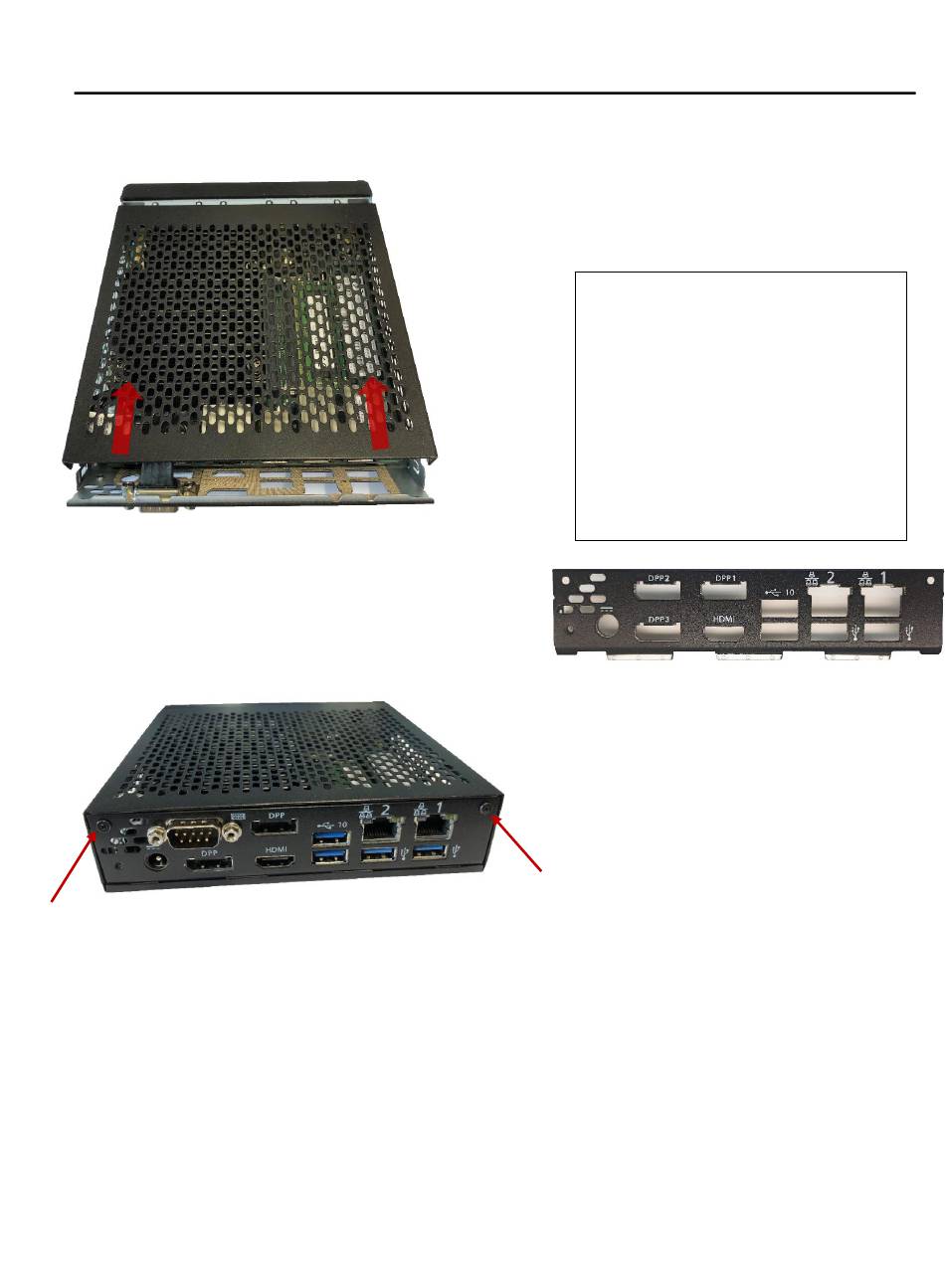

Closing the Chassis

Slide the cover on top of the chassis
while pushing it forward.
Some pressure may be required.
Close the chassis rear wall using the screws (M2.5 x 6)
included in the SMARTCASE chassis kit.
Mandatory torque: 0.4Nm
// 11 of 15
Note:
D3714-V2, D3724-R2, and D3724-R3
require a different chassis rear wall
supporting 4 x graphics port!
Furthermore, the chassis top cover
"Rev. B" is required, as this has been
modified in order to avoid any
mechanical interference with the
upper left graphics port.
Chassis kit Rev. 02 contains both rear
walls and chassis top cover Rev. B.
Chassis rear wall (K1056-B622) with 4 x graphics
port.
