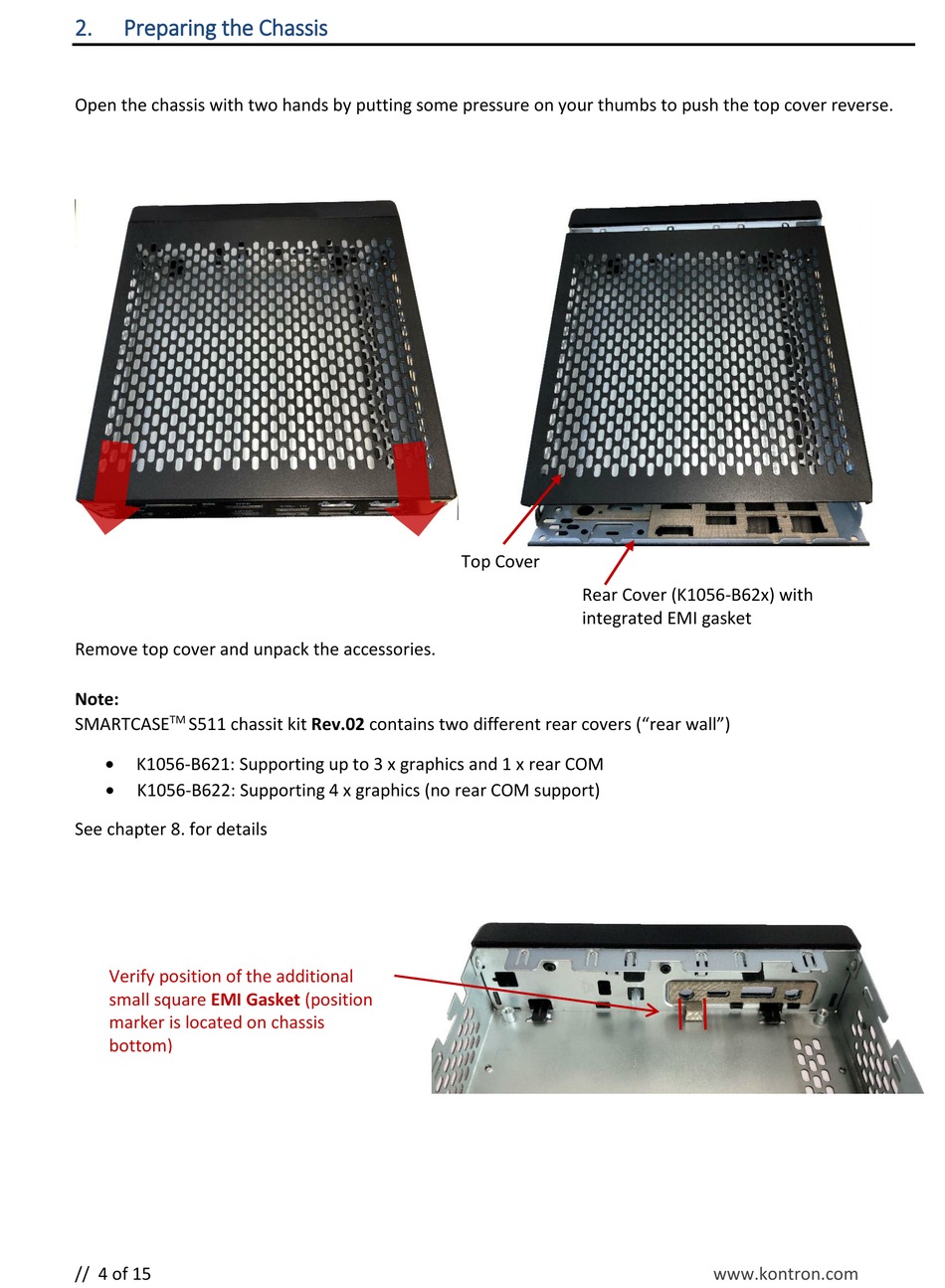

2.

Preparing the Chassis

Open the chassis with two hands by putting some pressure on your thumbs to push the top cover reverse.
Remove top cover and unpack the accessories.
Note:
TM
SMARTCASE S511 chassit kit Rev.02 contains two different rear covers ("rear wall")

K1056-B621: Supporting up to 3 x graphics and 1 x rear COM

K1056-B622: Supporting 4 x graphics (no rear COM support)
See chapter 8. for details
Verify position of the additional
small square EMI Gasket (position
marker is located on chassis
bottom)
// 4 of 15
Top Cover
Rear Cover (K1056-B62x) with
integrated EMI gasket
