5.3

MMA welding

Risk of crushing and burns!
When changing stick electrodes there is a risk of crushing and burns!
• Wear appropriate and dry protective gloves.
• Use an insulated pair of tongs to remove the used stick electrode or to move welded work-
pieces.
5.3.1

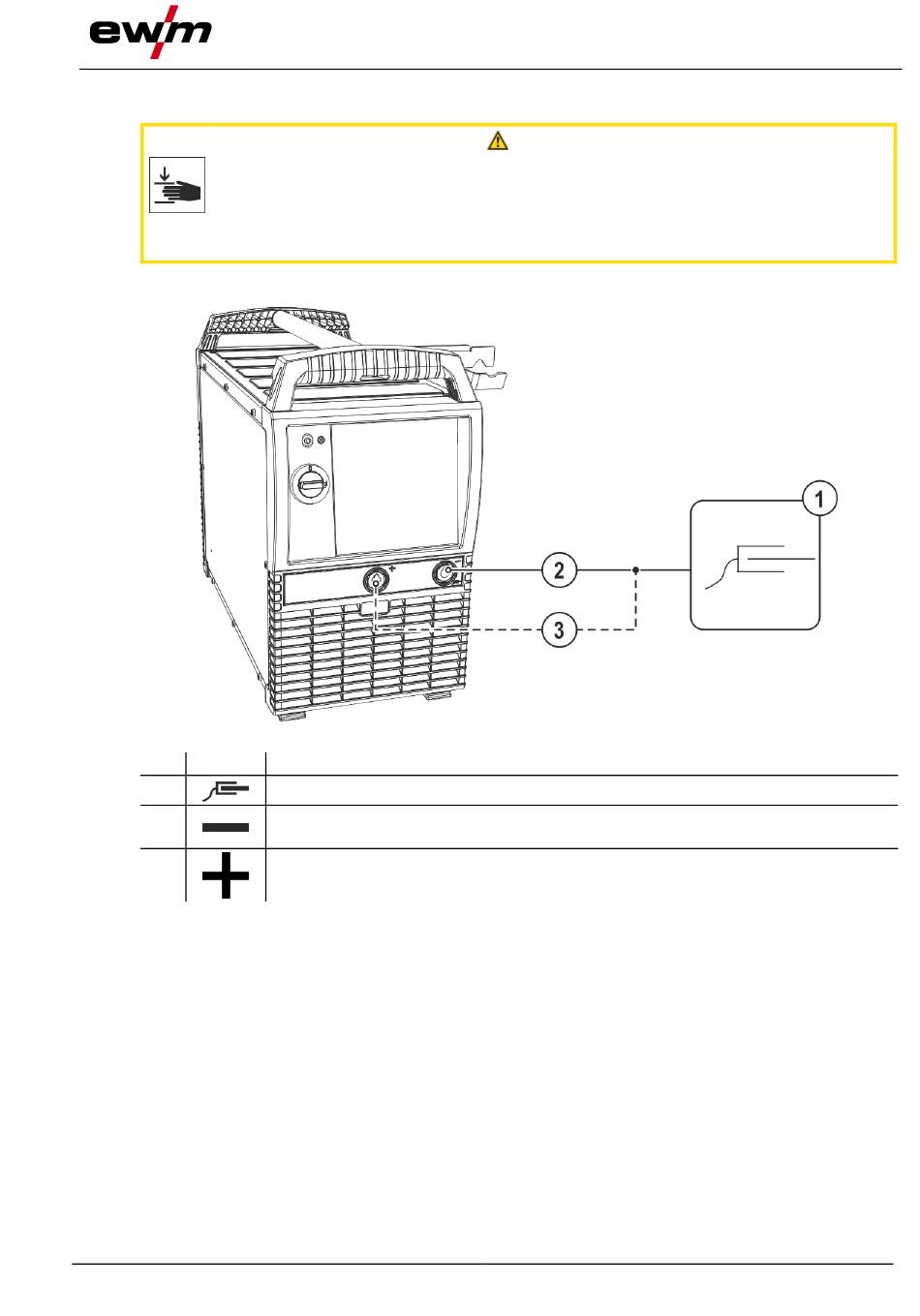

Connection for workpiece lead

Item Symbol
1
2
3
• Insert the electrode holder plug and workpiece lead into the welding current socket depending on ap-
plication and lock in place by turning to the right. The corresponding polarity will be based on the infor-
mation of the electrode manufacturer on the electrode packaging.
5.3.2

Electrode holder connection

For connection description, see the relevant "Wire feeder" operating instructions.
5.3.3

Welding task selection

For selection of the welding task and for general operation see the relevant Control operating instructions.
099-005589-EW501
9.02.2023
Description 0
Workpiece
Connection socket, welding current "–"
Connection socket, "+" welding current
CAUTION
Figure 5-11
Design and function
MMA welding
27
