Design and function
Transport and installation
5.1.5

Connecting the intermediate hose package to the power source

5.1.5.1

Intermediate hose package strain relief

Missing or incorrectly fitted strain relief!
Connection sockets or connection plugs on the machine, or the intermediate tube package, may
be damaged if the strain relief is missing or incorrectly fitted. The strain relief takes the strain
from cables, plugs and sockets.
• Check the strain relief function by pulling in all directions. Cables and hoses must have suffi-
cient play when the relief cord is fully stretched!

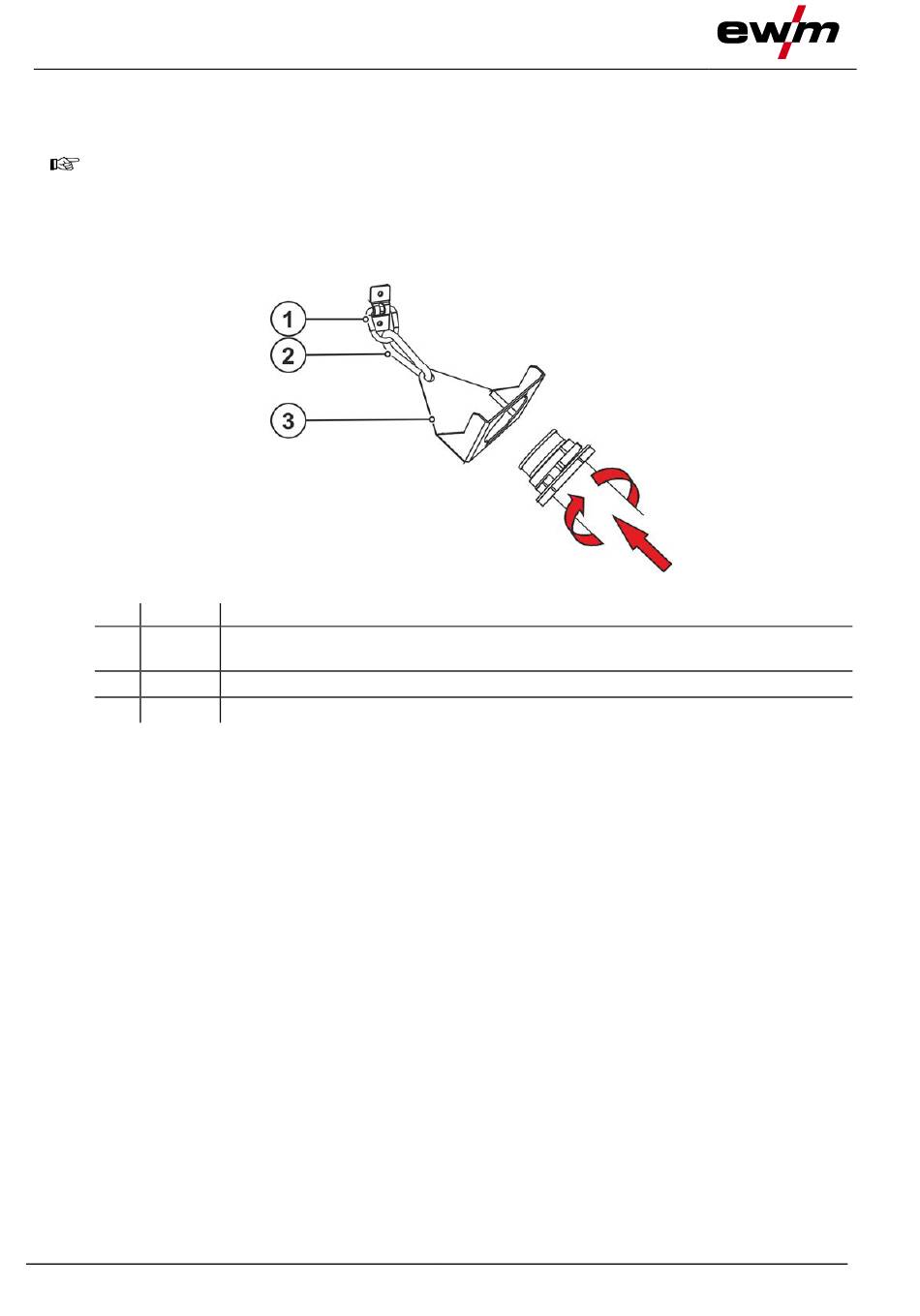

Item Symbol
1
2
3
• Secure hose package end with the strain relief > see 5.1.5.1 chapter.
20
Description 0
Stirrup
Intermediate hose package strain relief
Snap hooks
Intermediate hose package strain relief > see 5.1.5.1 chapter
Figure 5-2
099-005589-EW501
9.02.2023
