8-/10-Lead PulSAR User Guide

EVALUATION BOARD SOFTWARE

INSTALLING THE SOFTWARE

The evaluation board software can be downloaded from the
relevant product page on the Analog Devices website.
Install the software prior to connecting the SDP board to the USB
port of the PC. This ensures that the SDP board is recognized
when it connects to the PC.
1. Start the Windows® operating system and download the
software from the relevant product page on the Analog
Devices website.
2. Unzip the downloaded file. Run the setup.exe file.
3. After installation is completed, power up the evaluation
board as described in the Power Supplies section.
4. Plug the evaluation board into the SDP board and the SDP
board into the PC using a USB cable.
5. When the software detects the evaluation board, proceed
through any dialog boxes that appear to finalize the
installation.
The default location for the software is the following:
C:\Program Files\Analog Devices\8 & 10 Lead PulSAR ADCs.
This location contains the executable software and example files.

INSTALLATION STEPS

Proceed through the installation, allowing the software and
drivers to be placed in the appropriate locations. Connect the
SDP board to the PC only after the software and drivers have
been installed.
There are two parts to the software installation. First, install the
software related to the evaluation board, as shown in Figure 2 to
Figure 7.

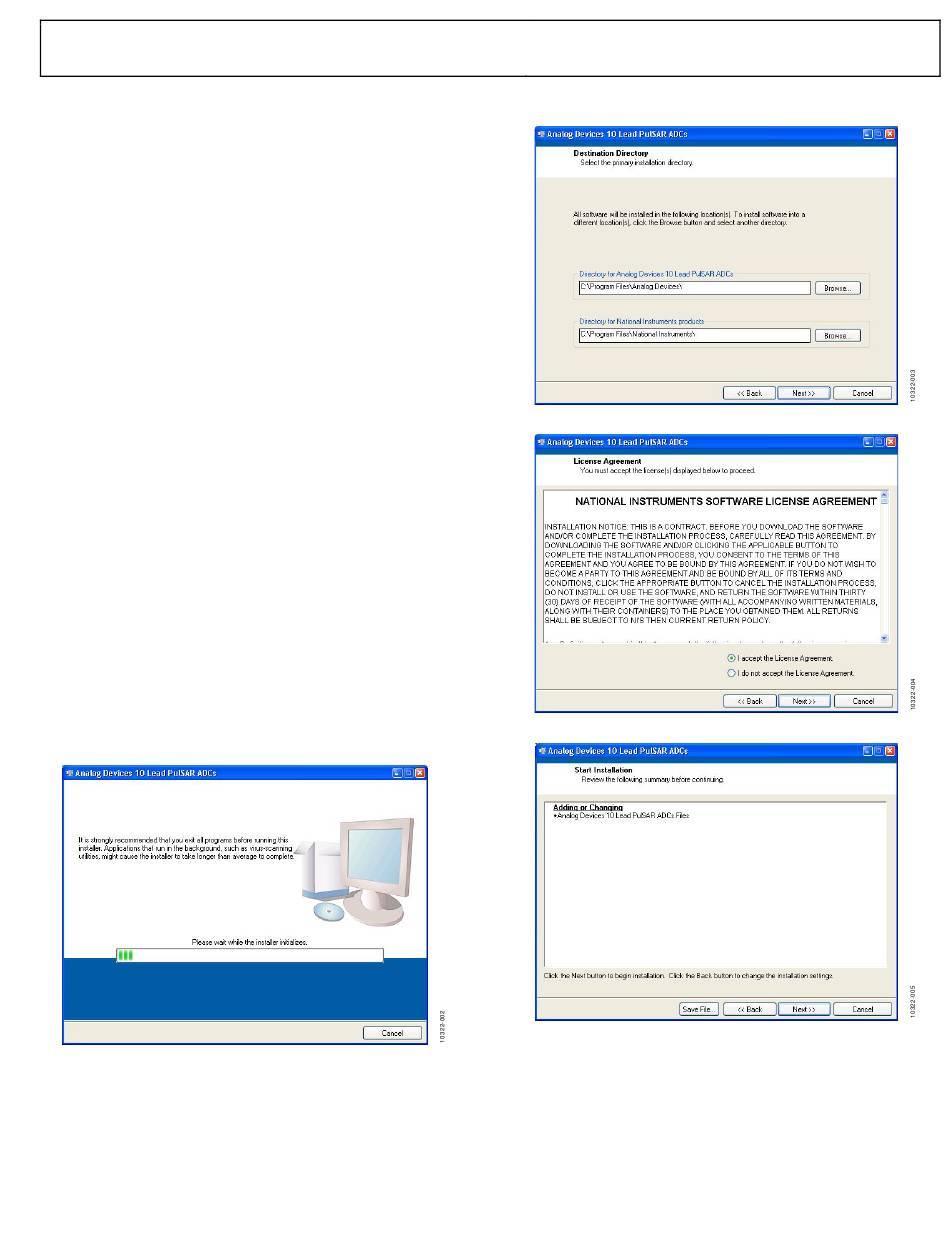

Figure 2. Evaluation Board Software Installation Launches
Figure 3. Choose Folder Location, Default Folder Shown
Figure 4. Accept National Instruments Software License Agreement
Figure 5. Click Next >> to Install Software
