8-/10-Lead PulSAR User Guide

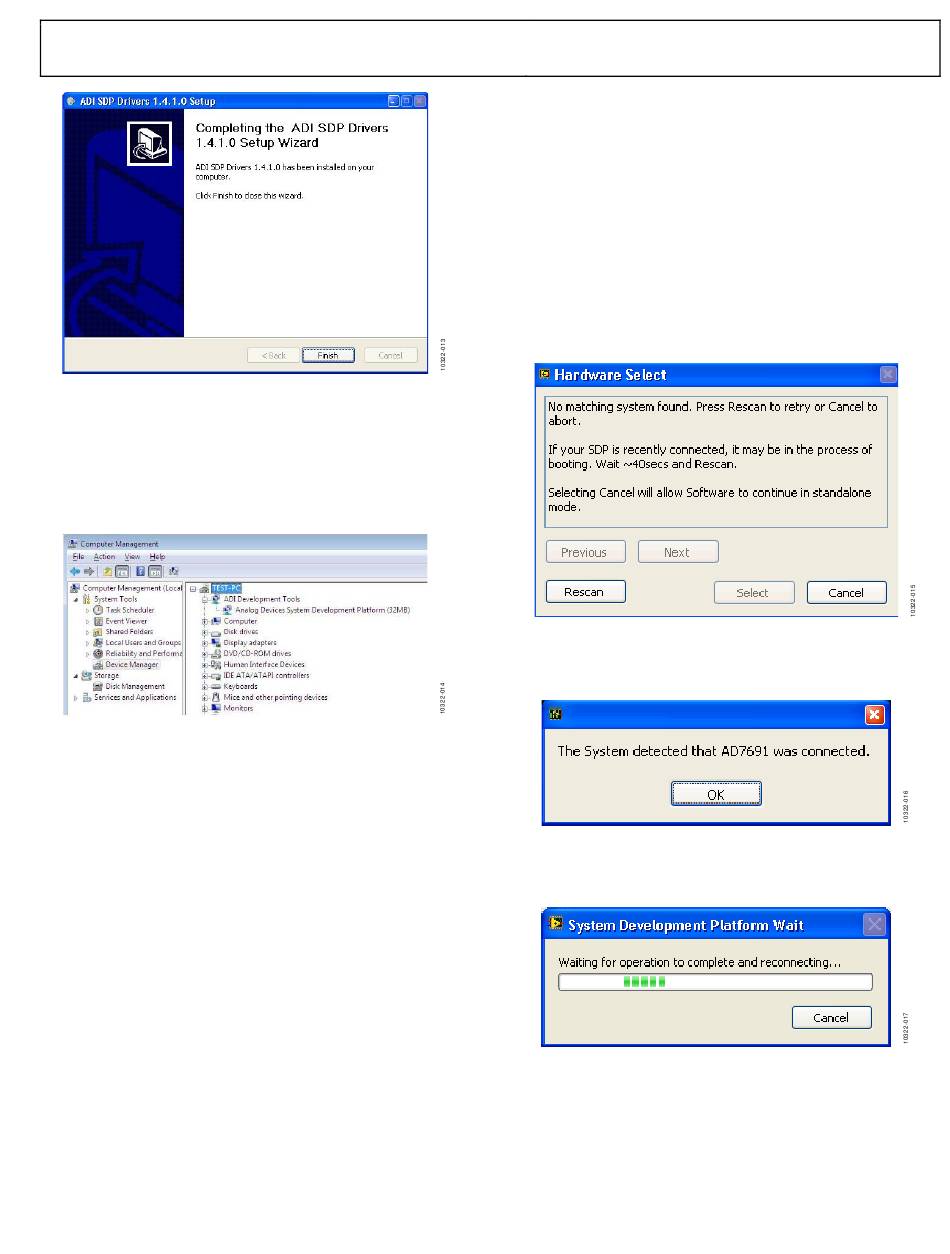

Figure 12. Click Finish to Complete Installation
When you first plug in the SDP board via the USB cable provided,
allow the new Found Hardware Wizard to run. You can check
that the drivers and the board are connected correctly by looking at
the Device Manager of the PC. The Analog Devices System
Development Platform (32MB) should appear under ADI
Development Tools.
Figure 13. Device Manager
BOARD OPERATION/CONNECTION SEQUENCE
The following is the board operation/connection sequence:
1.
Connect the SDP controller board to the evaluation board
with the J5 connector (screw into place as required). The
software is configured to find the evaluation board on either
connector of the SDP board.
2.
Power the board with the appropriate supply as described
in the Power Supplies section.
3.
Connect to the PC with the USB cable.
4.
Launch the software. Click Start > All Programs >
Analog Devices > 8 & 10 Lead PulSAR ADCs.
5.
Apply signal source and capture data.
RUNNING THE SOFTWARE WITH THE HARDWARE
CONNECTED
To run the program, take the following steps:
1.
Click Start > All Programs > Analog Devices > 8 & 10
Lead PulSAR ADCs. To uninstall the program, click Start
> Control Panel > Add or Remove Programs > Analog
Devices 8 & 10 Lead PulSAR ADCs.
2.
If the SDP board is not connected to the USB port when
the software is launched, a connectivity error displays (see
Figure 14). Connect the evaluation board to the USB port of
the PC, wait a few seconds, click Rescan, and follow the
instructions.
Figure 14. SDP Board Not Connected to the USB Port Pop-Up Window Error
3.
When evaluation board is detected, Figure 15 displays.
Click OK to continue.
Figure 15. Software Detects Evaluation Board
4.
The software then connects to the board and displays what
is shown in Figure 16.
Figure 16. Software Connects to SDP Board
5.
When the board is correctly detected, the software panel
opens.
Rev. C | Page 7 of 31
UG-340
