UG-340
8-/10-Lead PulSAR User Guide

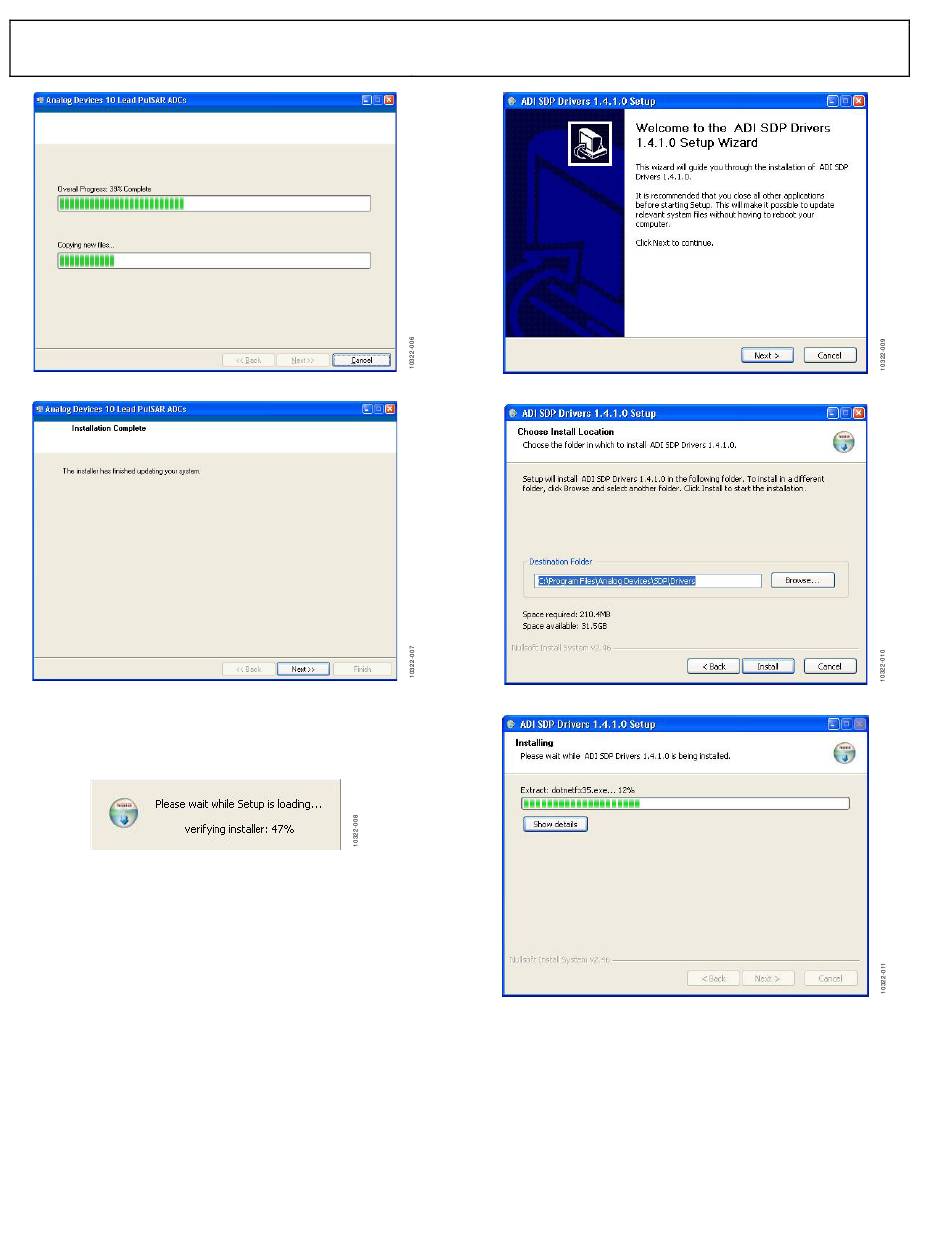

Figure 6. Bar Showing Installation Progress
Figure 9. Click Next > to Install the ADI SDP Drivers
Figure 7. Installation Complete, Click Next >> to Complete and Finish
Figure 10. Choose Install Location, Default Folder Shown
The second part of the software installation is the drivers related to
the SDP board. These drivers must be installed for the evaluation
board to function correctly. See Figure 8 to Figure 12.
Figure 8. Installation for SDP Starting
Figure 11. Installation in Progress
Rev. C | Page 6 of 31
