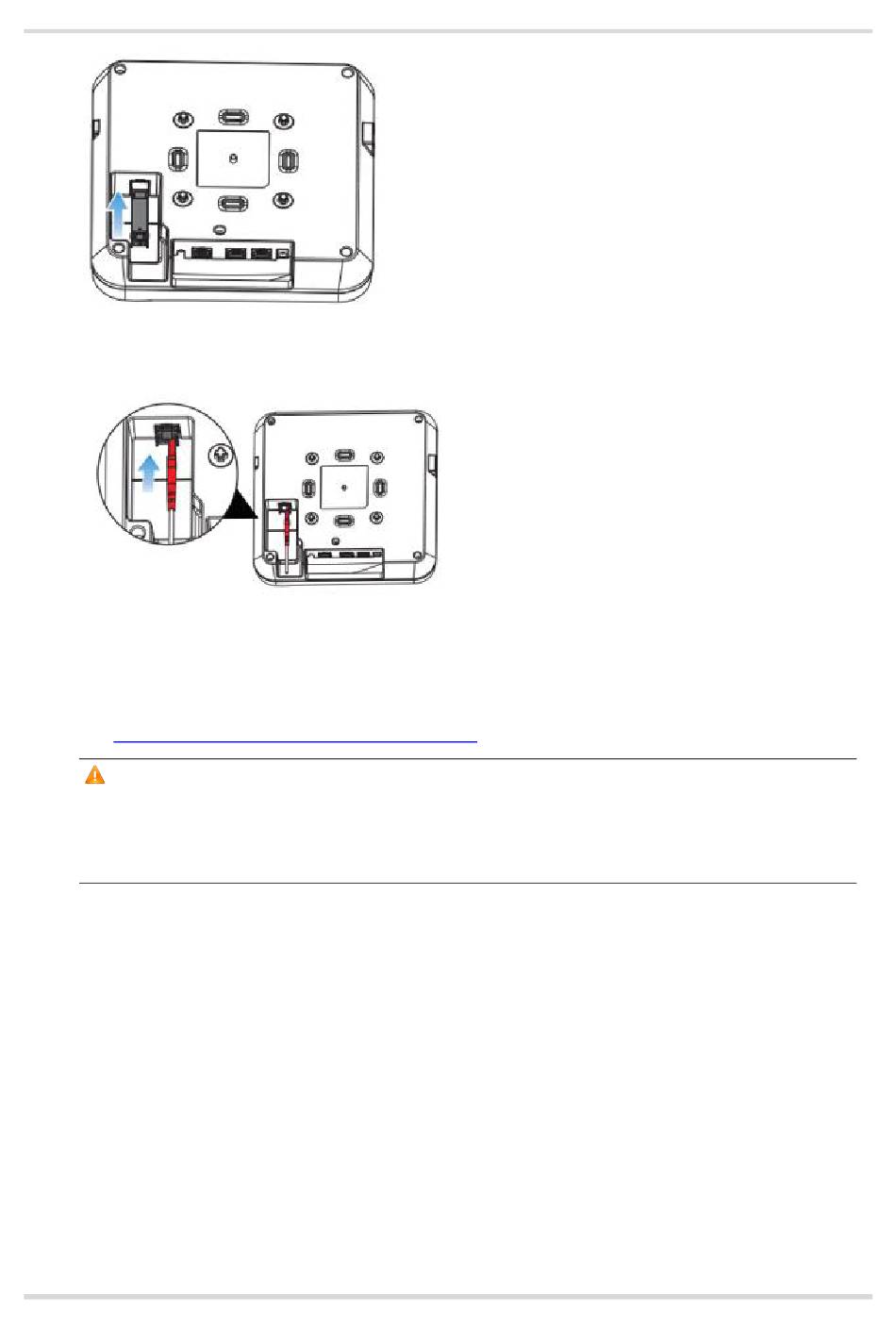

Insert the SFP module.
(2) Insert the fiber.
3.6

Connecting Cables

Connect a twisted pair to the LAN/PoE port of the AP. For the twisted pair line sequence supported by the AP,
see
7.1
Connector and Connection Media
Caution
The default baud rate of the master AP's console port is 9600, the data bits are 8, the parity check is none, the
stop bit is 1, and the flow control is none. The parameters need to be set only when the AP needs to be manually
configured.
3.7

Bundling Cables

3.7.1

Precautions

The bundles of power cords and cables should be tidy and neat.
When bundling twisted pairs, the twisted pairs at the plug should be in natural bending or large curvature.
When bundling twisted pairs, do not tie them too tightly, avoiding too much stress on cables to affect the
service life and transmission performance of the cables.
3.7.2

Simplified Steps of Cable Bundling

1)
Bundle the drooping part of the twisted pairs and route them to the master AP's LAN/PoE port as convenient.
2)
Secure the twisted pairs inside the cable management bracket of the mounting plate.
Description.
